Disassembly And Assembly Of Subassemblies: Piston: Notes

MATERIALS

Item Specification
SAE 5W-20 Super Premium Synthetic Blend Engine Oil XO-5W20-QSP or equivalent WSS-M2C153-H
  1. Remove the parts in the order indicated in the following illustration and table.

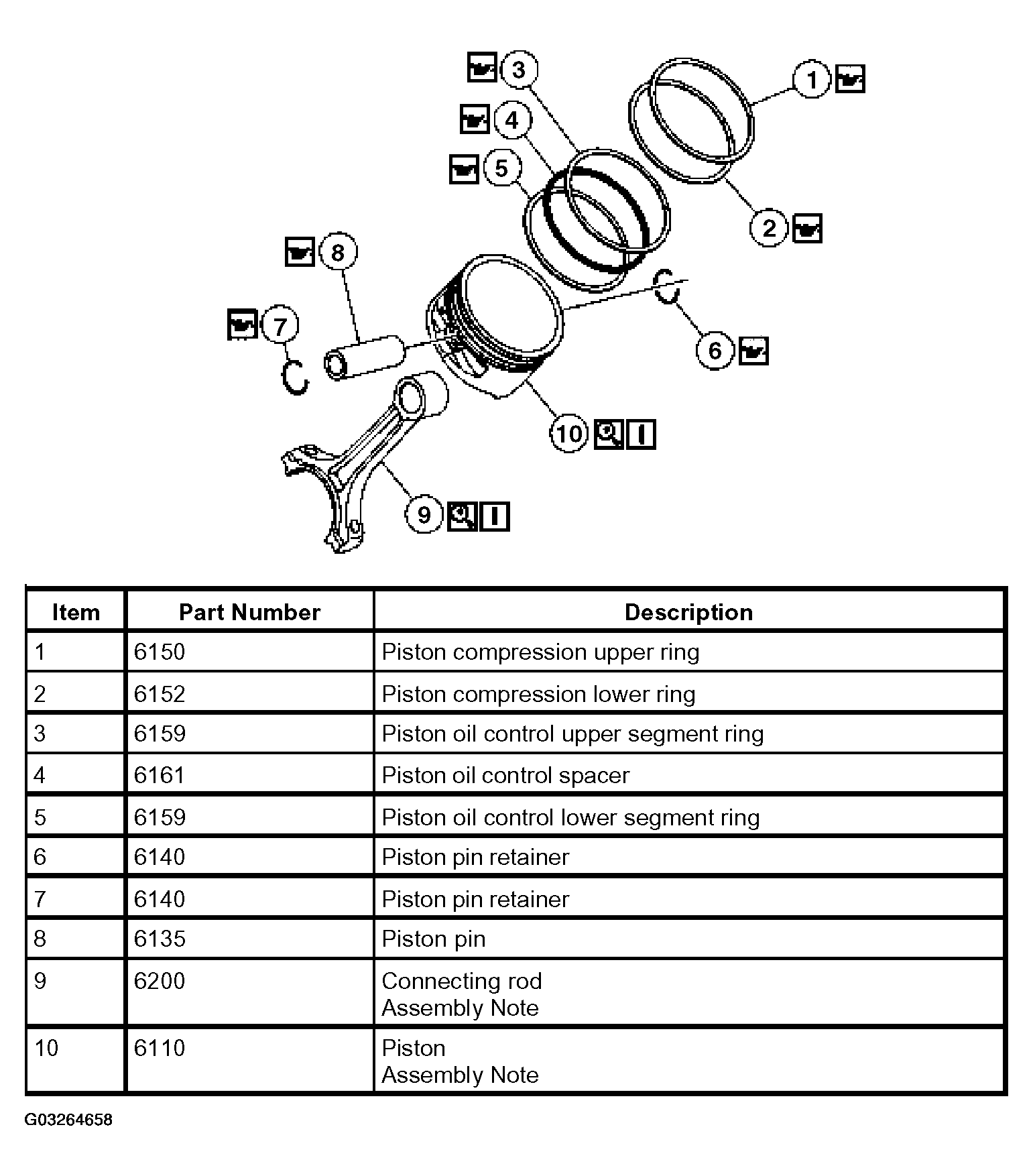

    Fig 1: Identifying Piston Components
    G03264658Courtesy of FORD MOTOR CO.
  2. To assemble, reverse the disassembly procedure.
