Lower Intake Manifold: Notes

MATERIALS

Item Specification
Motorcraft Premium Engine Coolant VC-4-A (in Canada CXC-10, in Oregon VC-5) or equivalent (green color) ESE-M97B44-A
Motorcraft Premium Gold Engine Coolant VC-7-A (in Oregon VC-7-B) or equivalent (yellow color) WSS-M97B51-A1
  1. Remove the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
  2. Drain the cooling system. For additional information, refer to ENGINE COOLING .
  3. Disconnect the spring lock couplings. For additional information, refer to Fuel Lines and Fuel Filter in FUEL SYSTEM .
  4. Remove the exhaust gas recirculation (EGR) system module tube. For additional information, refer to EXHAUST GAS RECIRCULATION (EGR) VALVE .
  5. Remove the components in the order indicated in the following illustration and table.

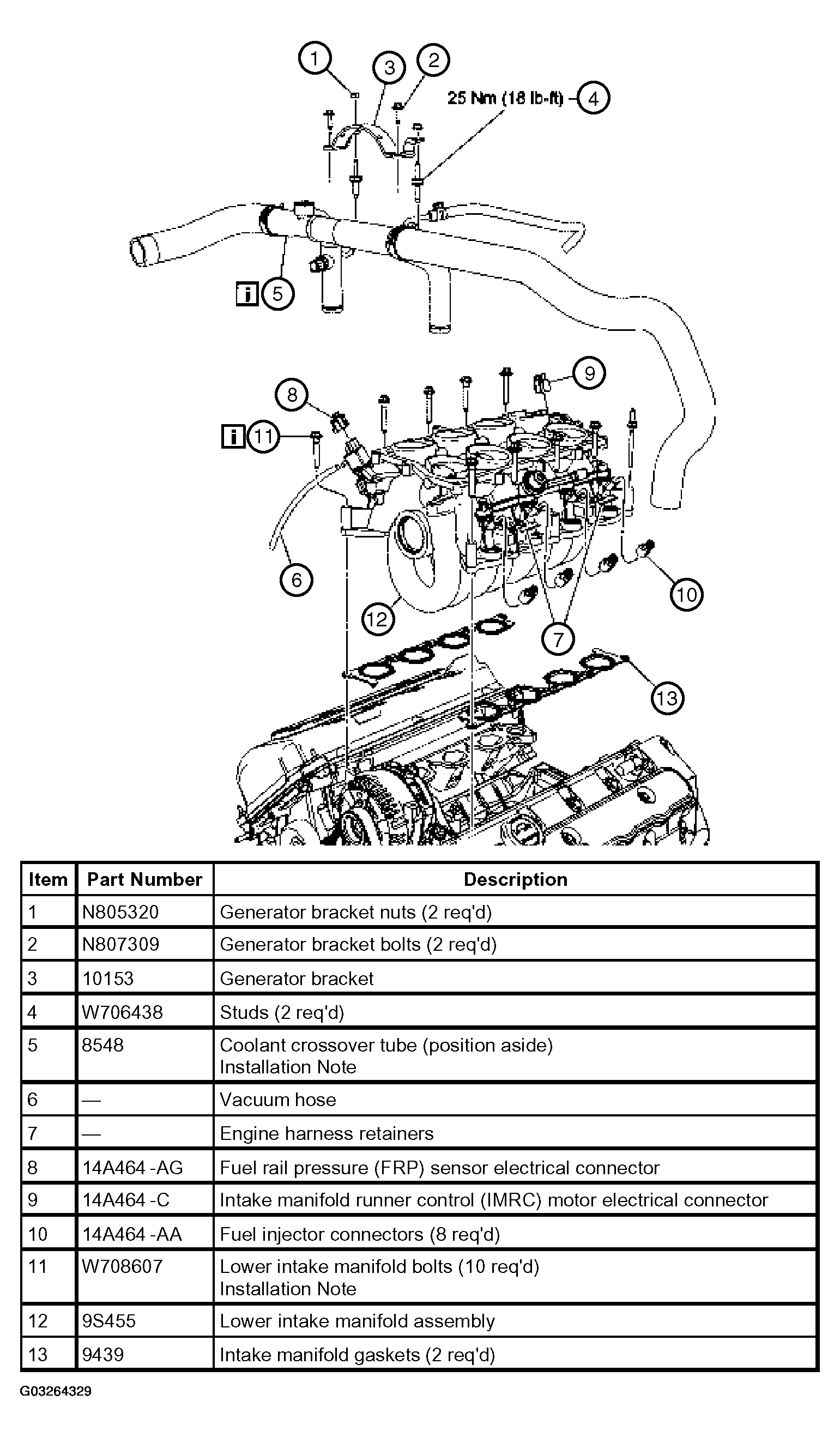

    Fig 1: Removing Lower Intake Manifold Assembly
    G03264329Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
