Oil Pressure Switch: Notes

  1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the parts in the order indicated in the following illustration and table.

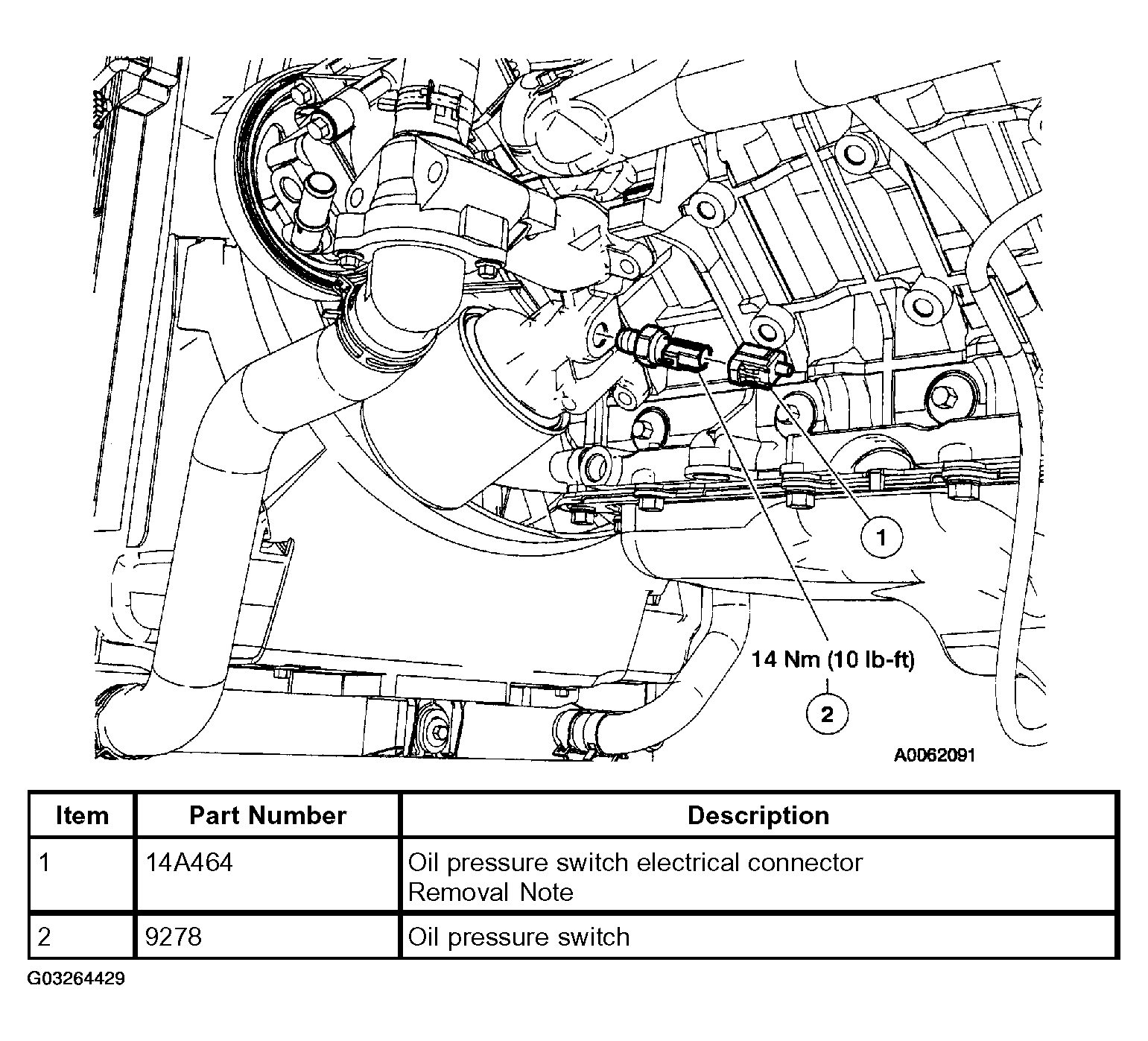

    Fig 1: Removing Oil Pressure Switch
    G03264429Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
