Valve Cover LH: Notes

MATERIALS

Item Specification
Silicone Gasket and Sealant F7AZ-19554-EA WSE-M4G323-A4
Metal Surface Cleaner F4AZ-19A536-RA WSE-M5B392-A
  1. Remove the LH ignition coils. For additional information, refer to INTAKE AIR, FUEL CHARGING, AND ENGINE ELECTRONICS .
    CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.
  2. Remove the parts in the order indicated in the following illustration and table.

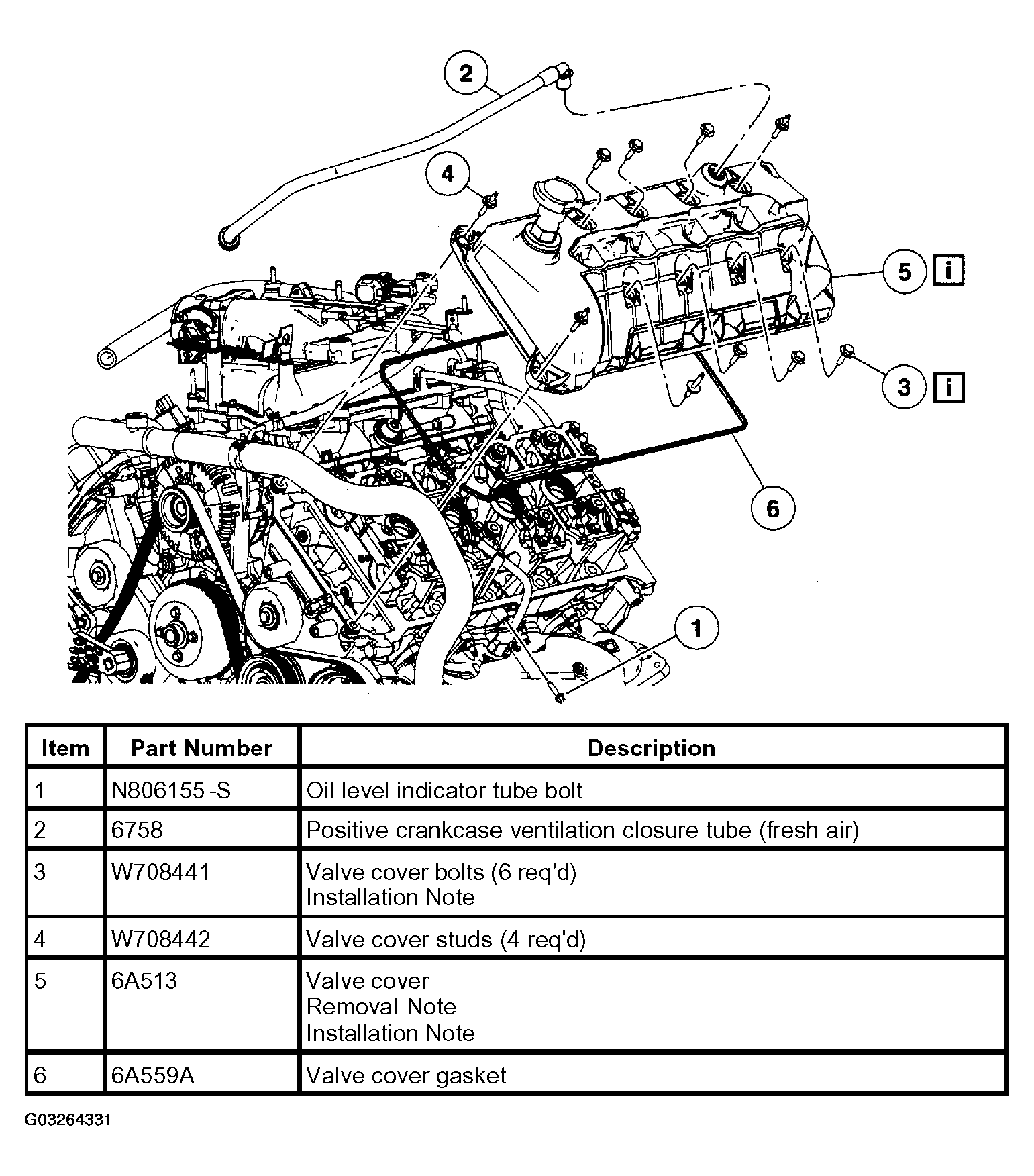

    Fig 1: Removing LH Valve Cover
    G03264331Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
