Steering Column Switches

1. If removing the ignition switch, depower the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS article .
2. If removing the multifunction switch, disconnect the battery. .
3. Remove the parts in the order indicated in the following illustration and table.

   To remove individual parts, only carry out the listed steps:

   STEERING COLUMN SWITCHES REMOVAL STEPS



   Part	Steps
   Ignition switch	1-9
   Multifunction switch	1-6, 10-14

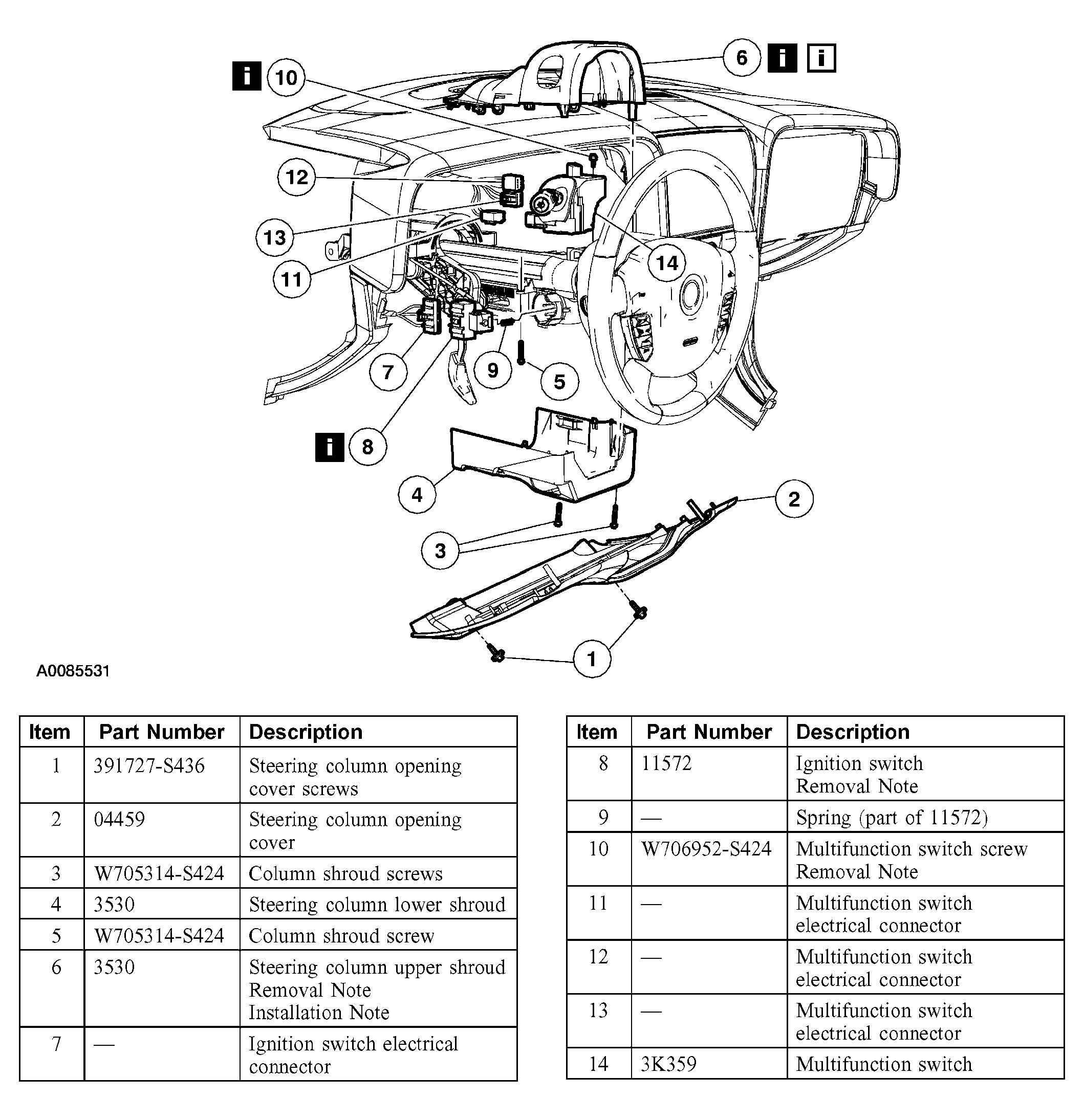

   Fig 1: Removing Steering Column Switches

   Courtesy of FORD MOTOR CO.
4. To install, reverse the removal procedure.

Item 6: Steering Column Upper Shroud Removal Note

1. Remove the upper steering column shroud.
   1. Release the retaining clips and rotate the upper steering column trim panel out of the instrument panel.
   2. Remove the upper steering column shroud hard shell.
   Fig 2: Removing Upper Steering Column Shroud Hard Shell

   Courtesy of FORD MOTOR CO.

Item 8: Ignition Switch Removal Note

1. Release the two locking tabs and remove the switch.

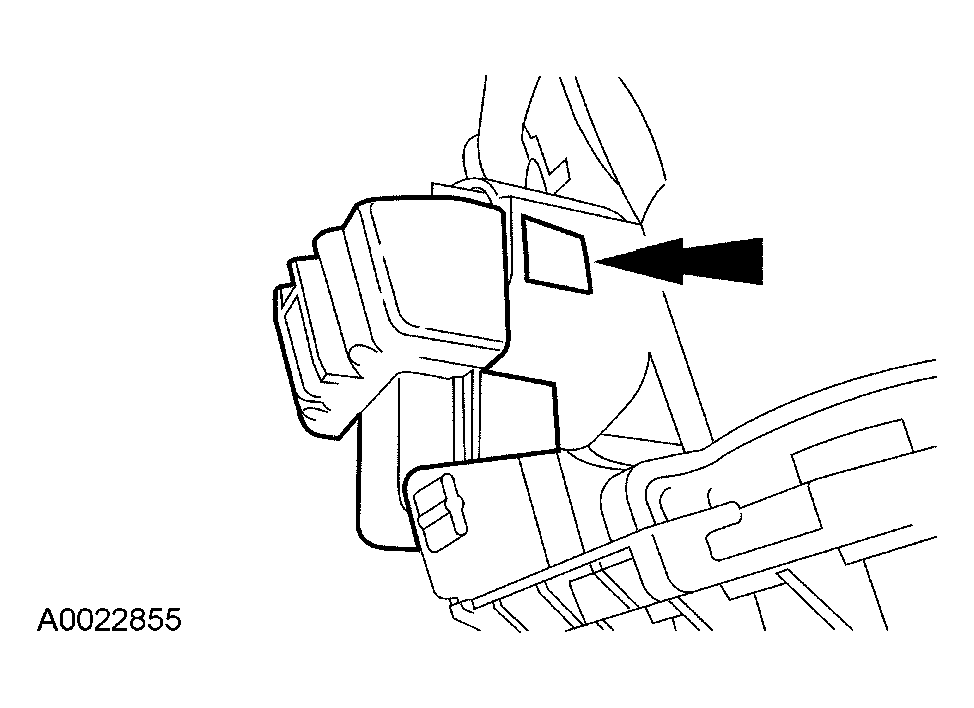

   Fig 3: Removing Switch

   Courtesy of FORD MOTOR CO.

Item 10: Multifunction Switch Removal Note

1. Remove the screw, push the release tab and raise the switch.

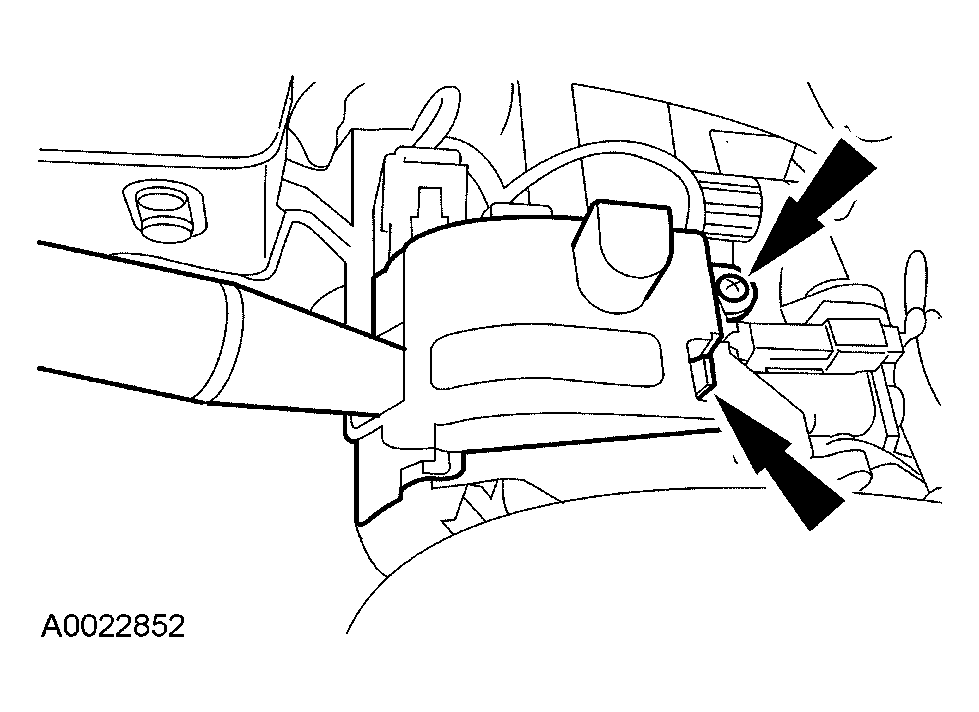

   Fig 4: Removing Screw

   Courtesy of FORD MOTOR CO.

Item 6: Steering Column Upper Shroud Installation Note

1. Make sure that the upper shroud retainer clips and the upper-to-lower shroud screws secure tightly or a new upper shroud must be installed.
