Variable Assist Power Steering (VAPS) Module

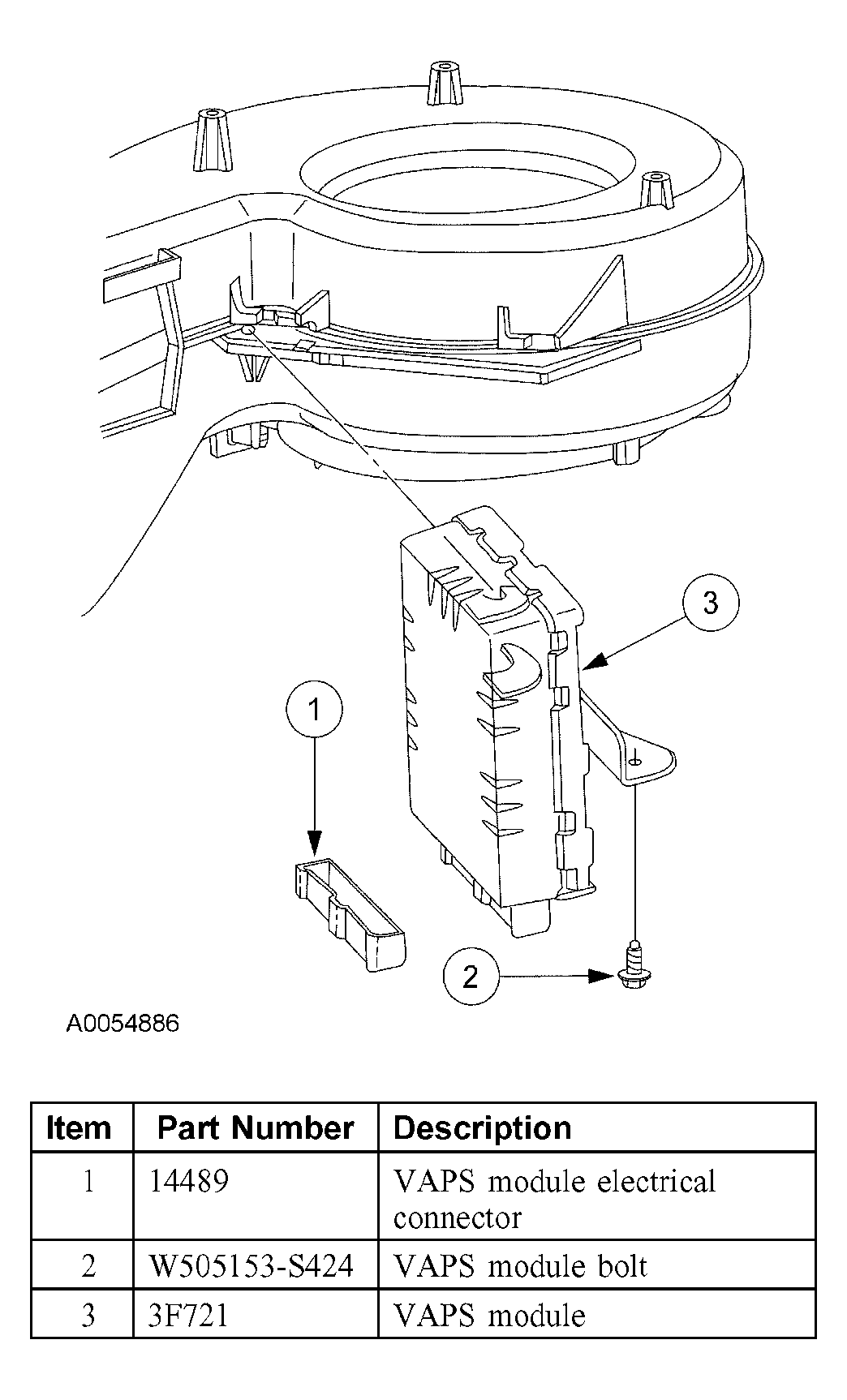

- Remove the components in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
- Calibrate the VAPS module. For additional information, refer to MODULE COMMUNICATIONS NETWORK article .
NOTE:
The variable assist power steering (VAPS) module is located under the RH side of the instrument panel, attached to the heater core and evaporator core housing.
