Brake Shift Interlock Switch

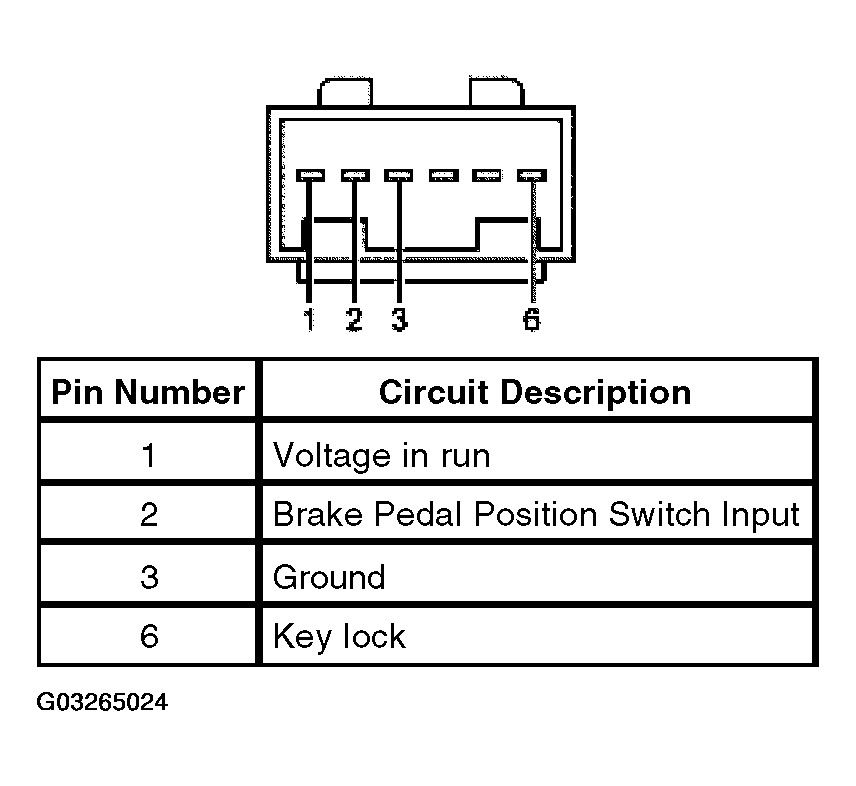

Fig 1: Identifying Brake Shift Interlock Switch Pins
Courtesy of FORD MOTOR CO.
