Forward Clutch: Material
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM | MERCON®V |
NOTE:
If the seals on the forward clutch piston show any signs of damage, a new forward clutch piston must be installed.
NOTE:
Inspect the clutch components for damage or wear. Install new components as necessary.
- Check the fluid passages for obstructions. All fluid passages must be clean and free of obstructions.
- Inspect the clutch plates for damage.
- Inspect the clutch springs.
- Inspect the needle bearing and seal rings for damage.
- Check clutch hub thrust surfaces for damage.
- Check clutch plates for flatness and fit on the clutch hub serrations.

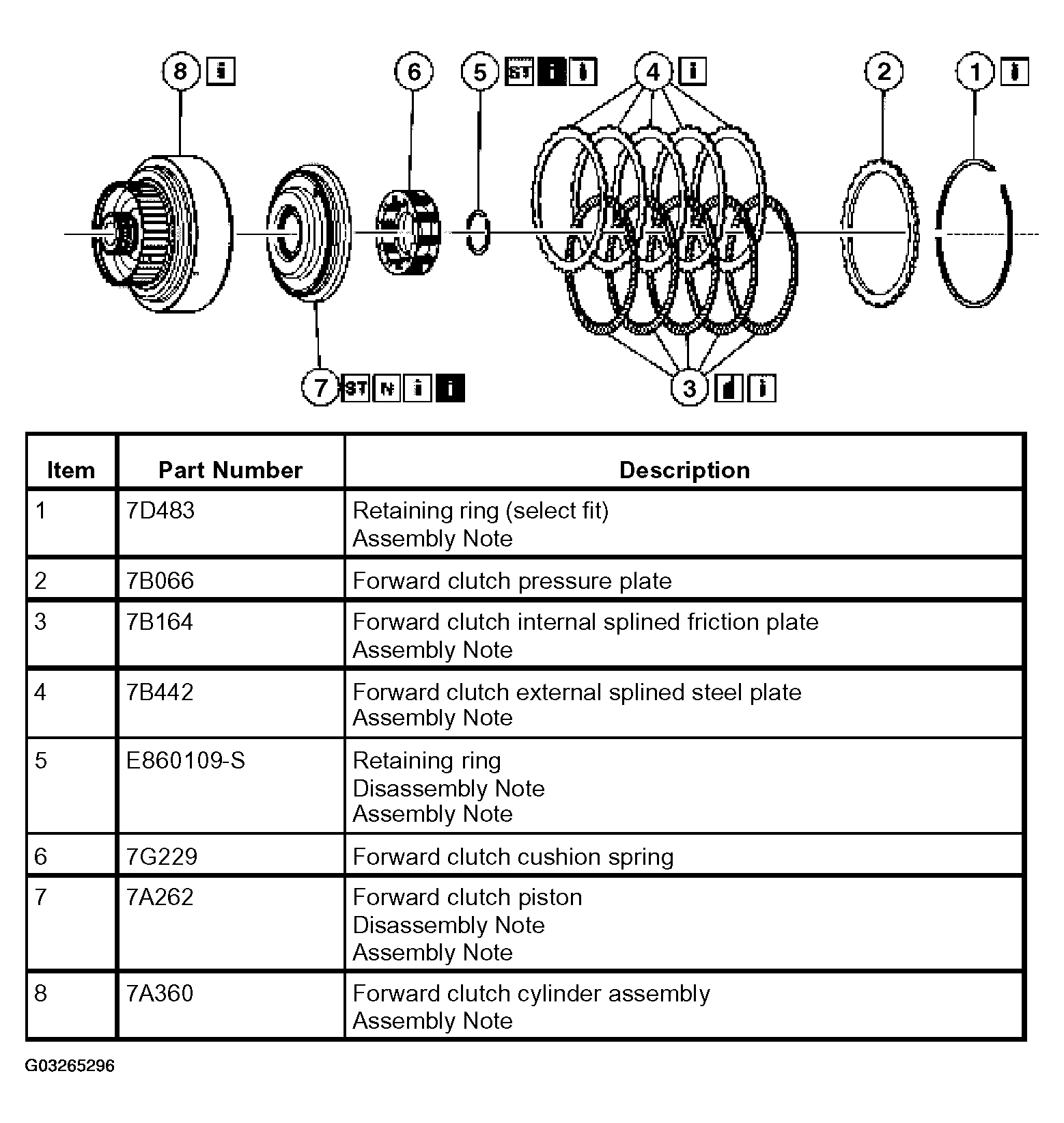

- Disassemble the parts in the order indicated in the following illustration and table.
- To assemble, reverse the disassembly procedure.
