Brake Shift Interlock Actuator: Notes

  1. Remove the parts in the order indicated in the following illustration and table.

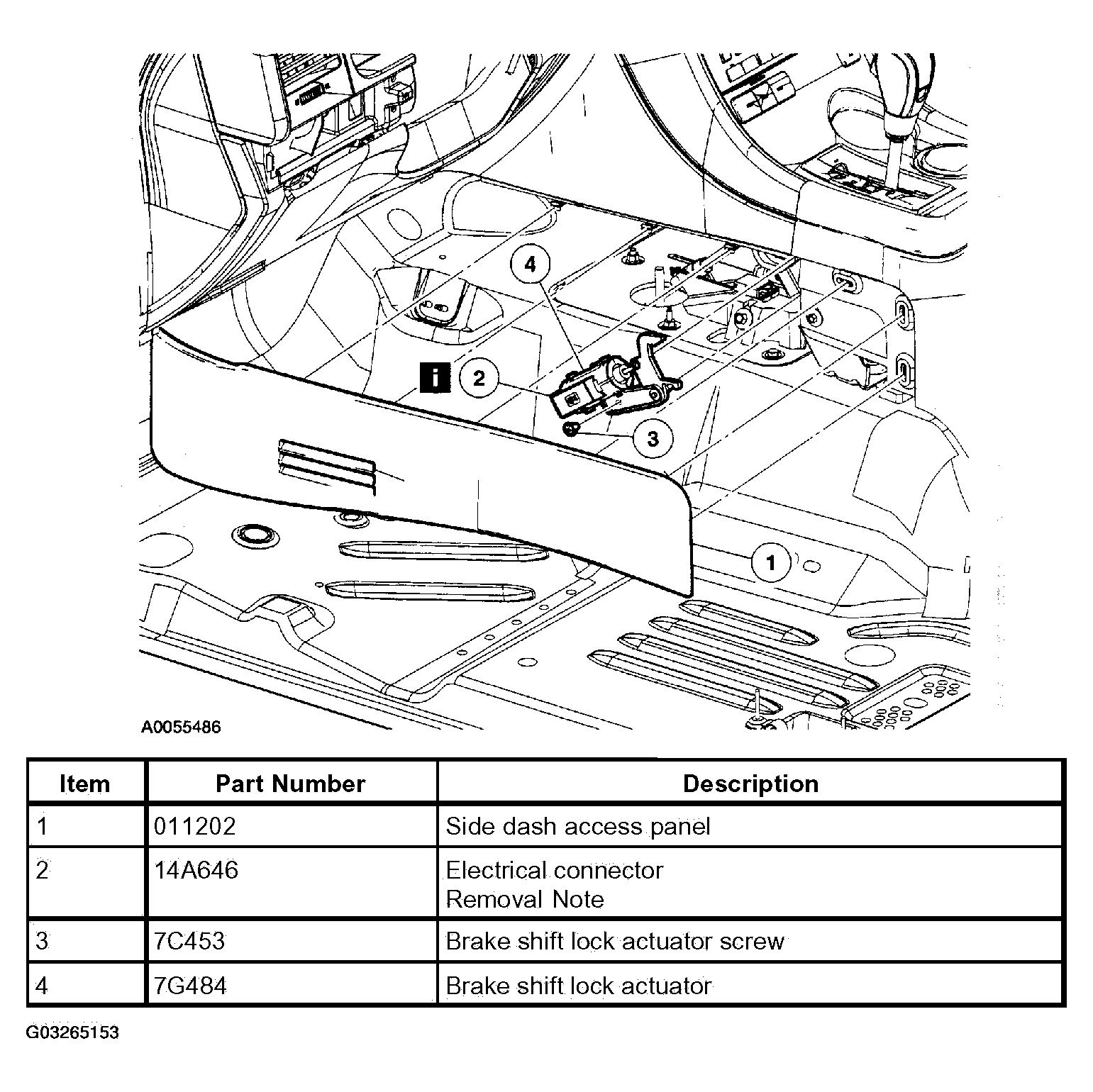

    Fig 1: Removing Brake Shift Interlock Actuator Components
    G03265153Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
