Main Control Valve Body: Material

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON®V

CAUTION: Lubricate the fluid filter seals with clean automatic transmission fluid or they may be damaged.

NOTE: Make sure that the fluid filter seals are correctly seated on the filter.

NOTE: Clean the area around the connector to prevent contamination of the solenoid body connector.

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage. If not damaged, the gasket should be reused.

With the vehicle in PARK, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the parts in the order indicated in the following illustration and table.

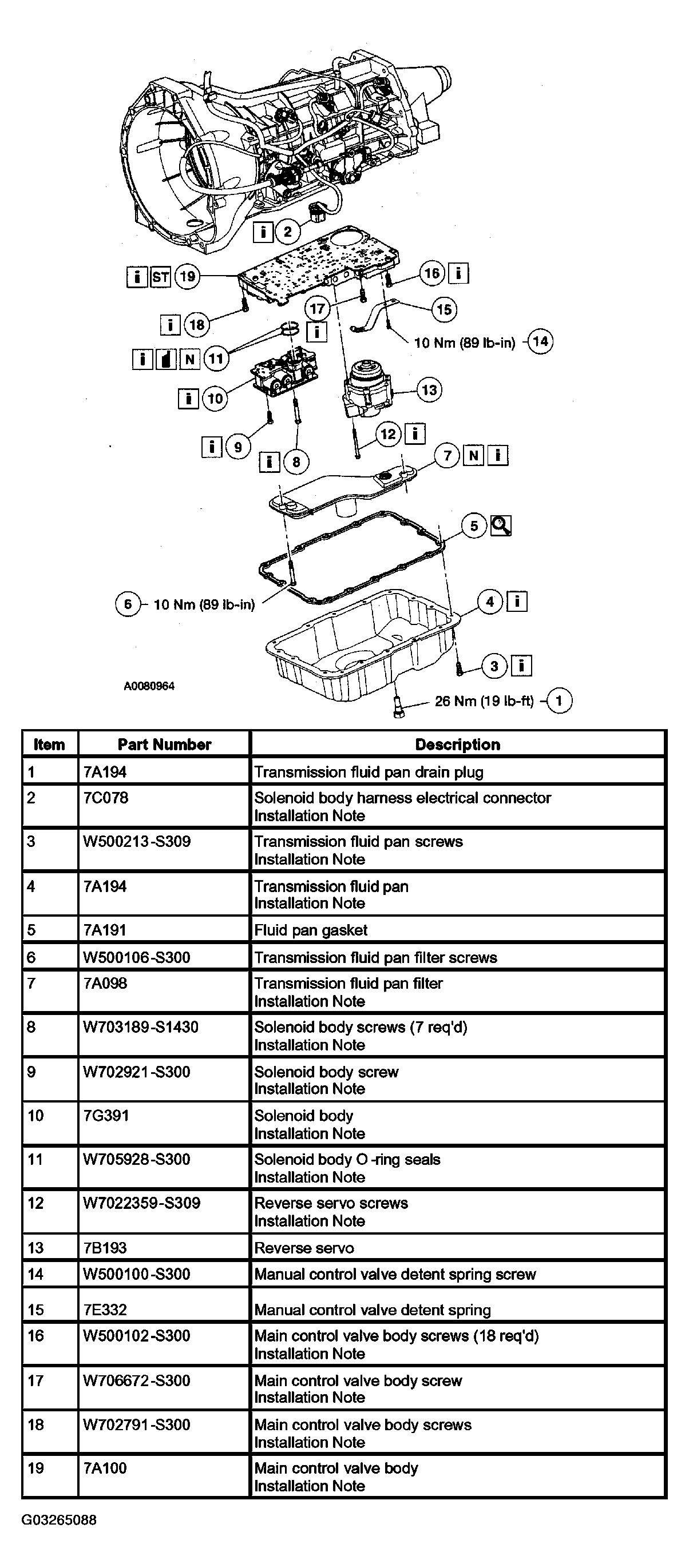

Fig 1: Removing Automatic Transmission Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Fill the transmission with clean automatic transmission fluid. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK .
