Transmission Selector Lever: Notes

If installing a new transmission range selector bezel or the transmission range selector lever, remove the center console. For additional information, refer to BODY SYSTEM - INTERIOR .

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

TRANSMISSION SELECTOR LEVER

Part	Steps
Shift control knob	1-6
Overdrive cancel button	1-7
Transmission range selector bezel	1-9
Transmission range selector lever assembly	11, 12, 14-16

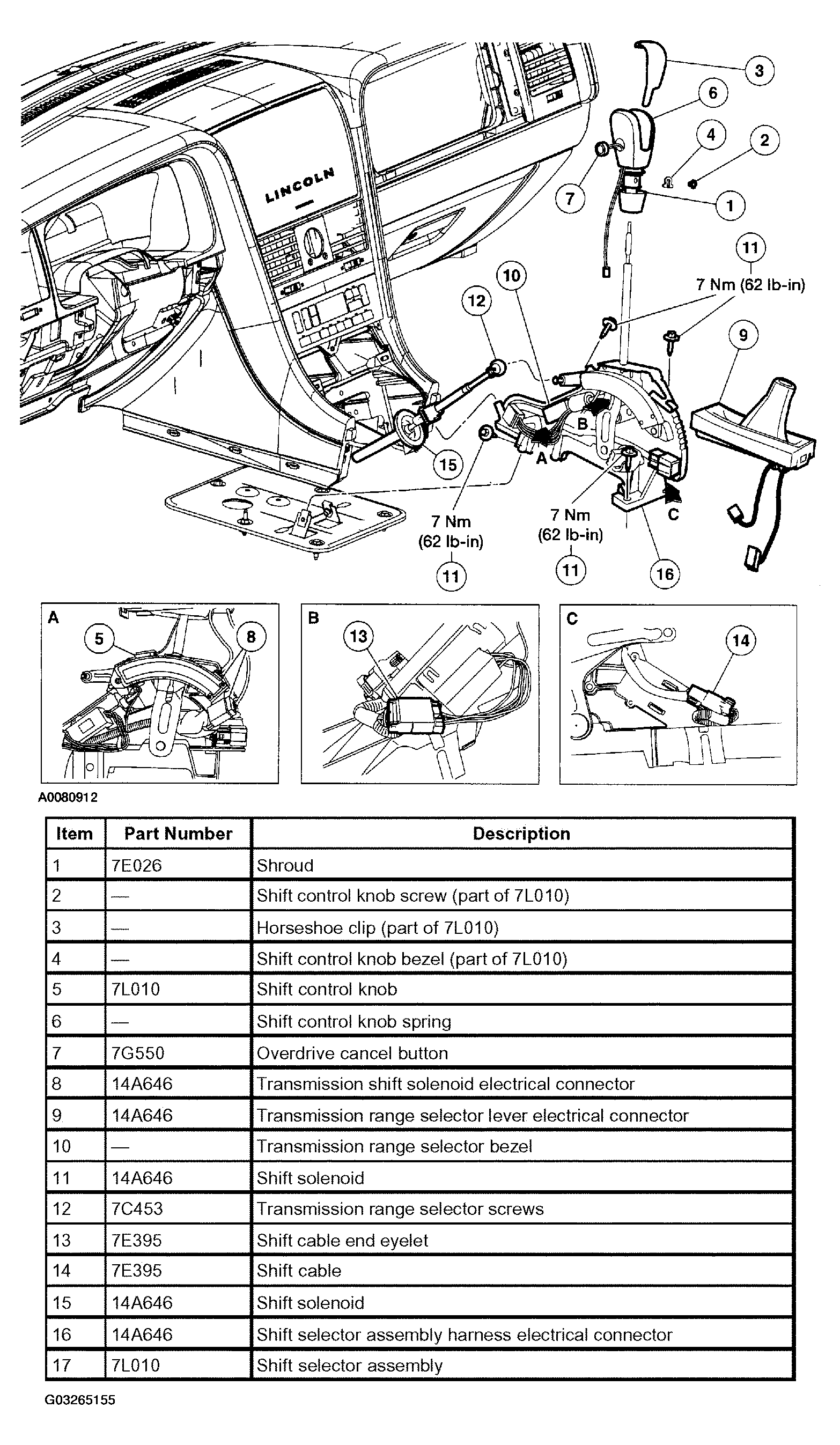

Fig 1: Removing Transmission Selector Lever Components

Courtesy of FORD MOTOR CO.
