Transmission Support Insulator - 4X4: Notes

  1. With the vehicle in PARK, position on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Support the transmission with a transmission jack.
  3. Remove the parts in the order indicated the following illustration and table.

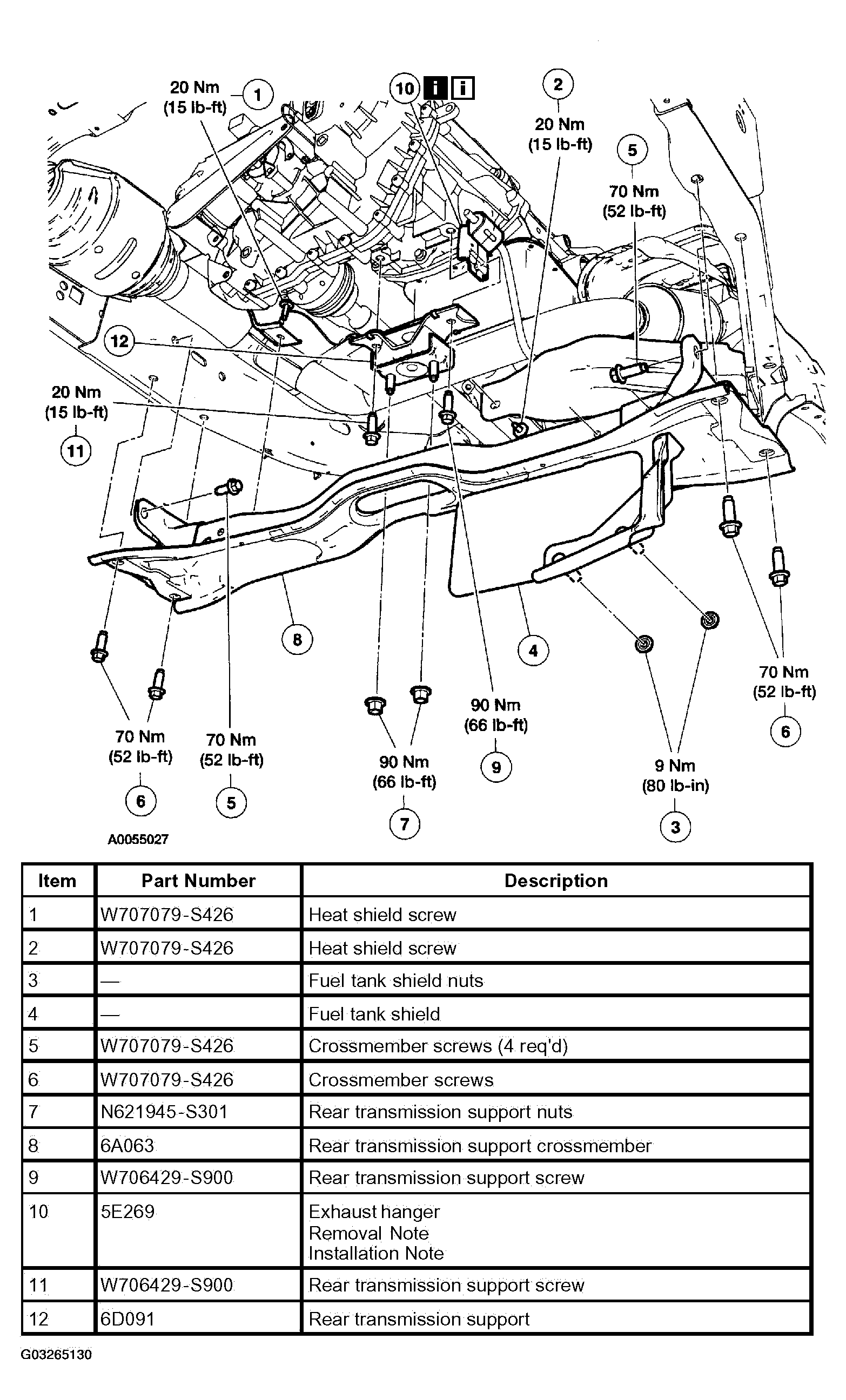

    Fig 1: Removing Transmission Support Insulator - 4X4 Components
    G03265130Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
