Steering Wheel Rotation Sensor C226

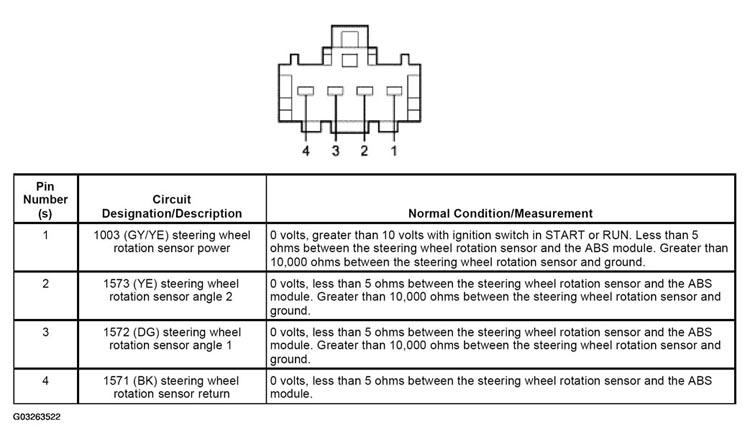

Fig 1: Identifying Steering Wheel Rotation Sensor C226 Connector Terminal Specifications
G03263522Courtesy of FORD MOTOR CO.
