Anti-Lock Brake System (ABS) Module

1. Disconnect the battery.
2. Remove the parts in the order indicated in the following illustration and table.

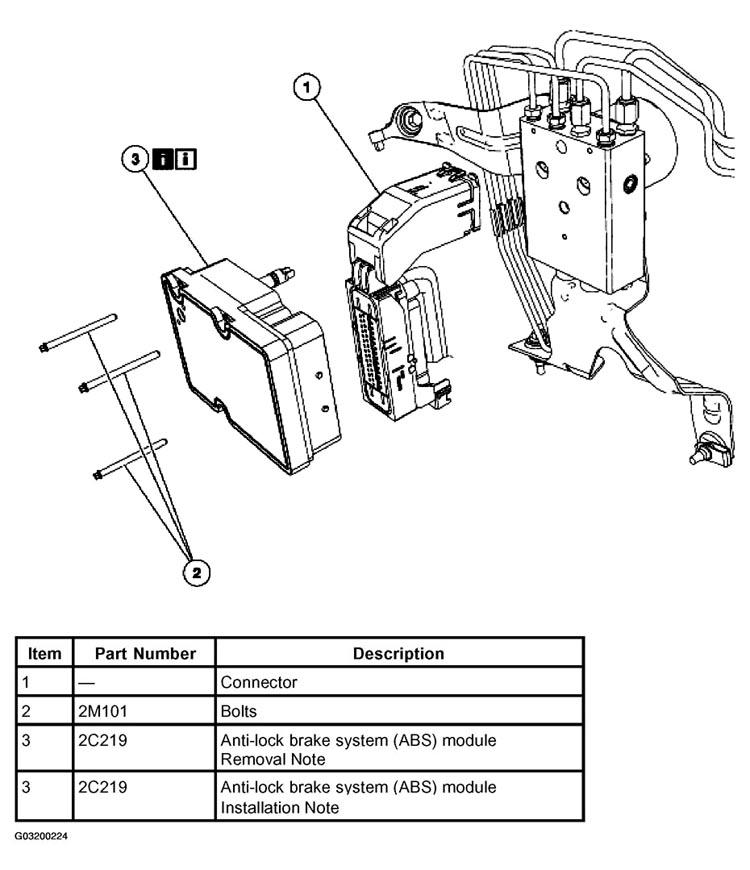

   Fig 1: Removing Anti-Lock Brake System (ABS) Module Components

   Courtesy of FORD MOTOR CO.
3. To install, reverse the removal procedure.

Item 3: Anti-Lock Brake System (ABS) Module Removal Note

1. Position the battery junction box (BJB) aside.
   1. Release the clips.
   2. Position the BJB aside.

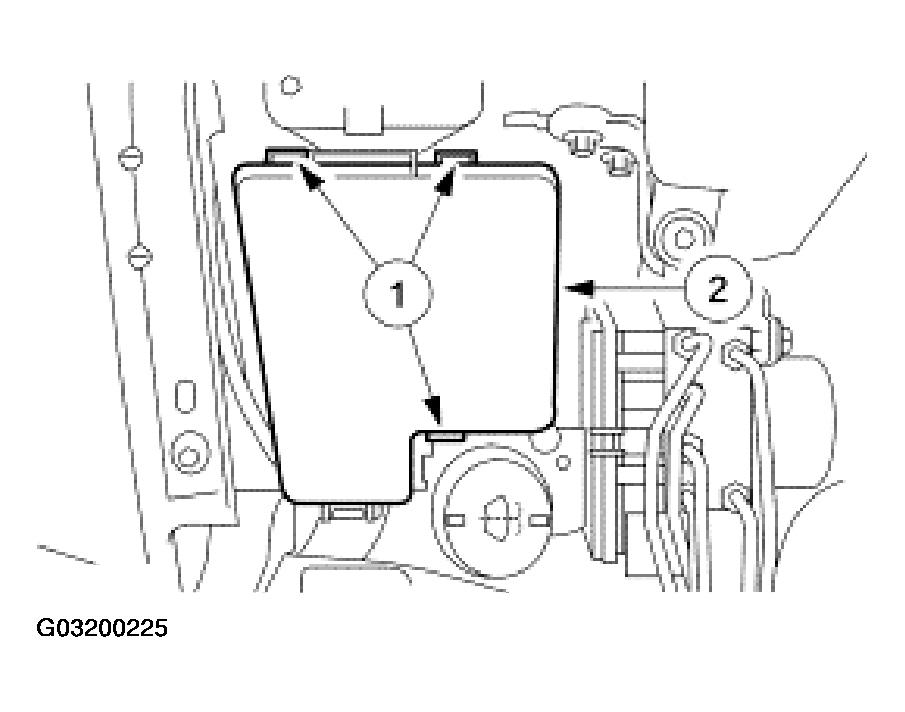

   Fig 2: Releasing Clips
   Courtesy of FORD MOTOR CO.

Item 3: Anti-Lock Brake System (ABS) Module Installation Note

1. Use the diagnostic tool to reconfigure the ABS module. For additional information, refer to MODULE COMMUNICATIONS NETWORK .
