Traction Control Actuator

  1. Disconnect the battery. .
  2. Remove the parts in the order indicated in the following illustration and table.

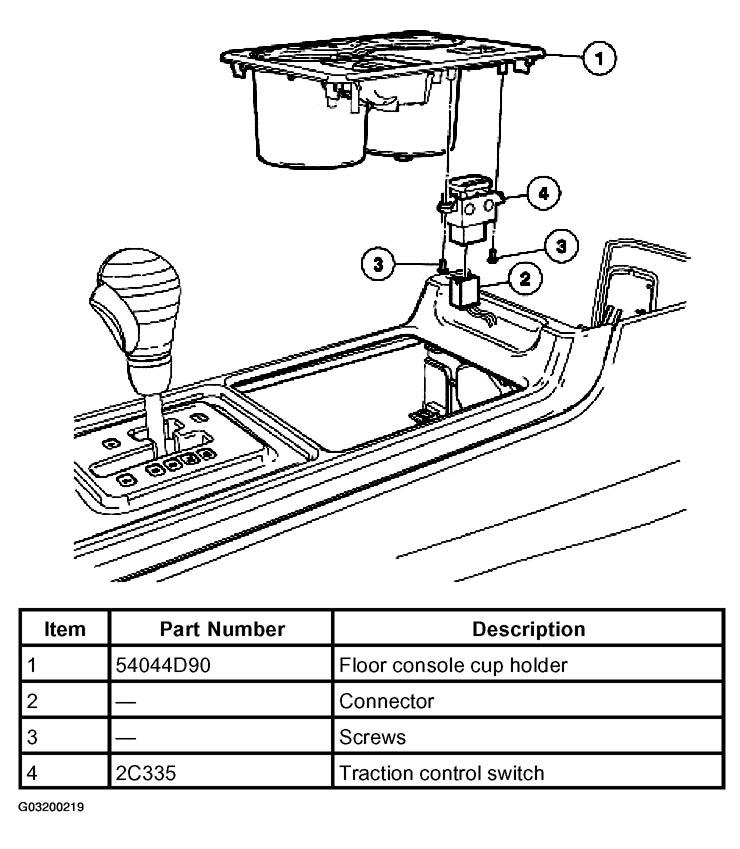

    Fig 1: Removing Traction Control Actuator Components
    G03200219Courtesy of FORD MOTOR CO.
  3. To install reverse the removal procedure.
