Yaw Rate Sensor

  1. Disconnect the battery.
  2. Remove the front floor console cup holder. For additional information, refer to INTERIOR TRIM .
  3. Remove the parts in the order indicated in the following illustration and table.

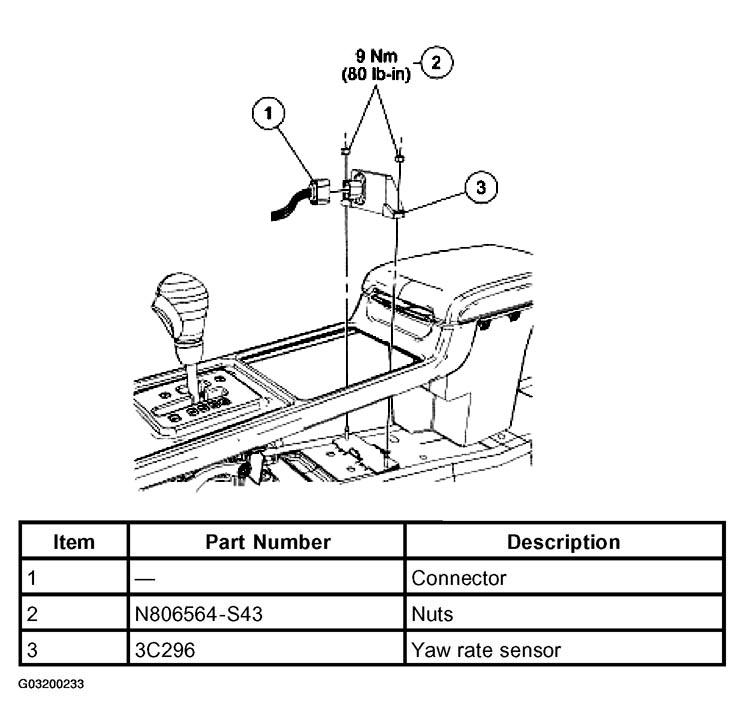

    Fig 1: Removing Yaw Rate Sensor
    G03200233Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
