Inspection and Verification

  1. Verify the customer's concern by operating the acceleration control system to duplicate the condition.
  2. Inspect to determine if any of the following mechanical concerns apply:

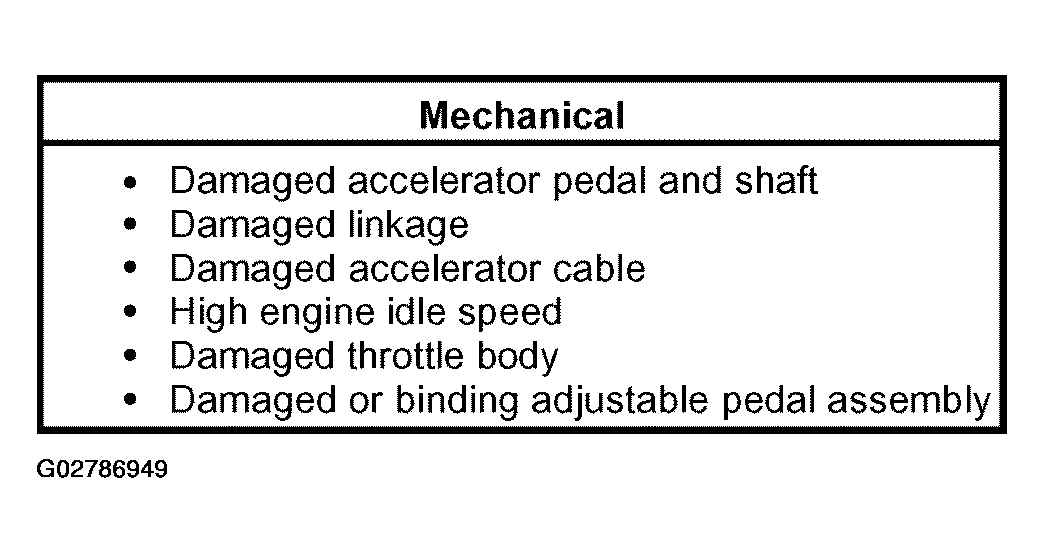

    Fig 1: Visual Inspection Chart
    G02786949Courtesy of FORD MOTOR CO.
  3. If the inspection reveals an obvious concern that can be readily identified, repair it as required.
  4. If the concern remains after the inspection, determine the symptom(s). GO to SYMPTOM CHART .
