Automatic Transmission - Sectional View

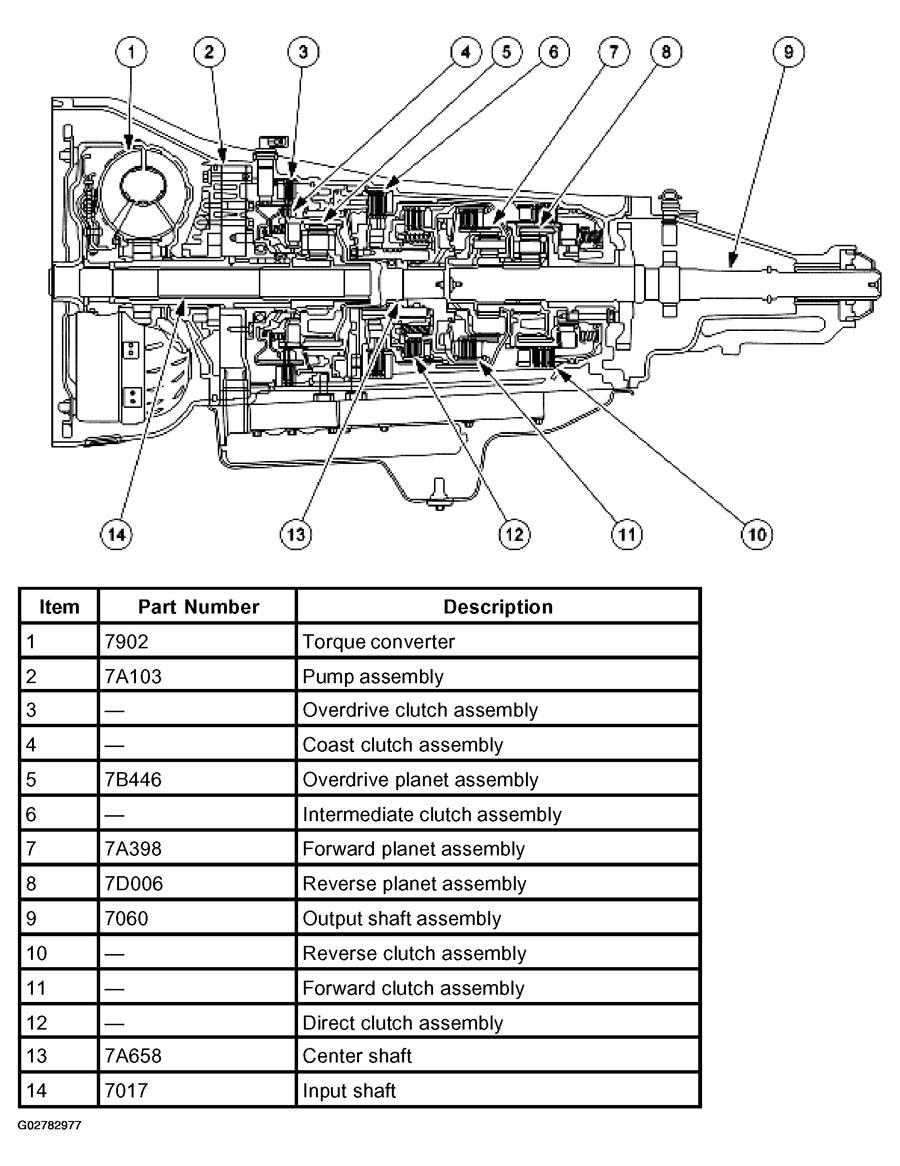

Fig 1: Sectional View Of Automatic Transmission
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
