Main Control Valve Body - Disassembly and Assembly: Assembly

  1. Install the control valves and springs from the lower main control valve body.

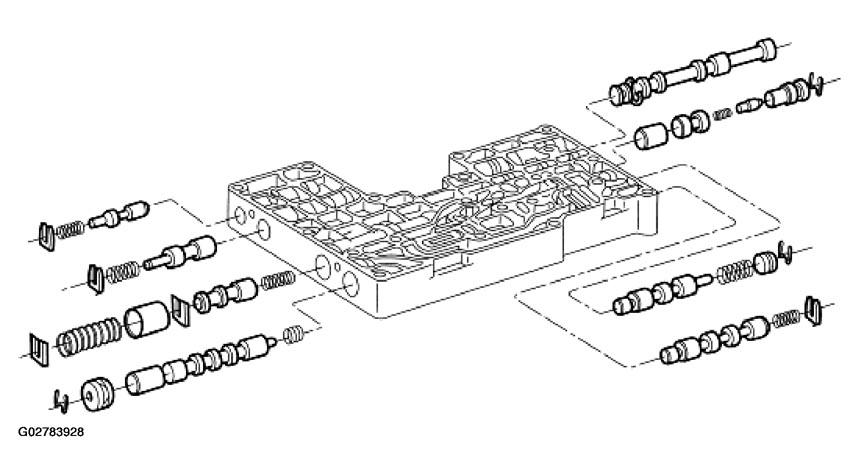

    Fig 1: Installing Control Valves And Springs From Lower Main Control Valve Body
    G02783928Courtesy of FORD MOTOR CO.
  2. Install the control valves and springs from the upper main control valve body.

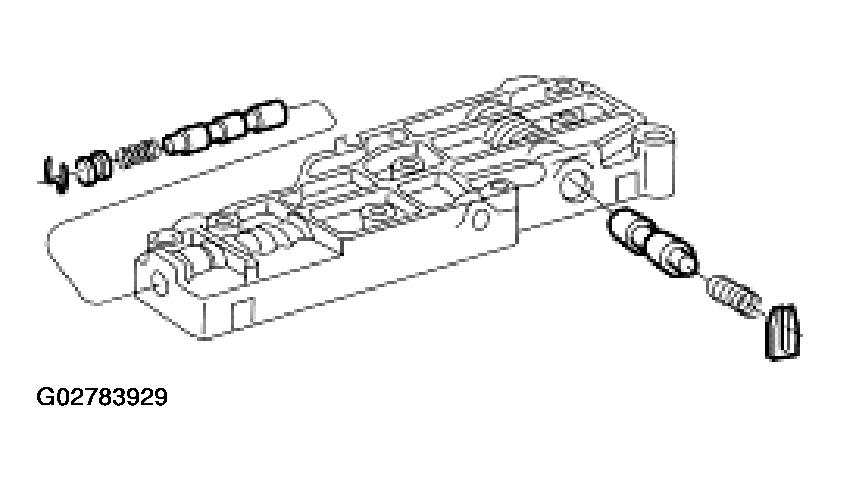

    Fig 2: Installing Control Valves And Springs From Upper Main Control Valve Body
    G02783929Courtesy of FORD MOTOR CO.
  3. Install the check balls.

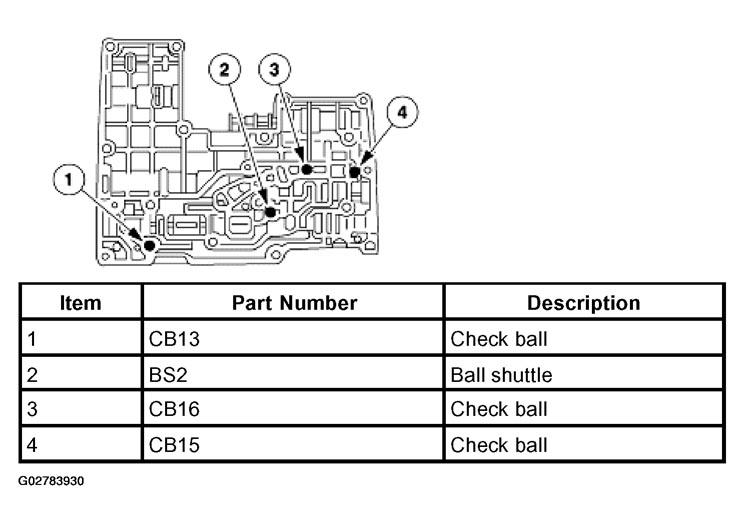

    Fig 3: Installing Check Balls
    G02783930Courtesy of FORD MOTOR CO.
  4. Using the special tools, install the lower control valve body.
    1. Install the special tools.
    2. Install the control valve body separator plate.
    3. Install the lower control valve body.
    4. Install the bolts.

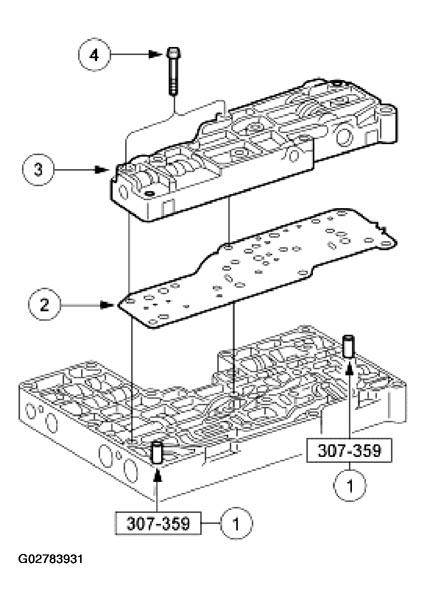

    Fig 4: Installing Lower Control Valve Body
    G02783931Courtesy of FORD MOTOR CO.
