Removal and Installation

WARNING: All safety belt assemblies including retractors, buckles, front seat belt buckle support assemblies (slide bar), shoulder belt height adjusters (if so equipped) child safety seat tether attachments and attaching hardware should be inspected after any collision. All belt assemblies should be replaced unless a qualified technician finds the assemblies show no damage and operate correctly. Belt assemblies not in use during a collision should also be inspected and replaced if either damage or incorrect operation is noted.

NOTE: The RH side is shown, the LH side is similar.

Remove the B-pillar trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

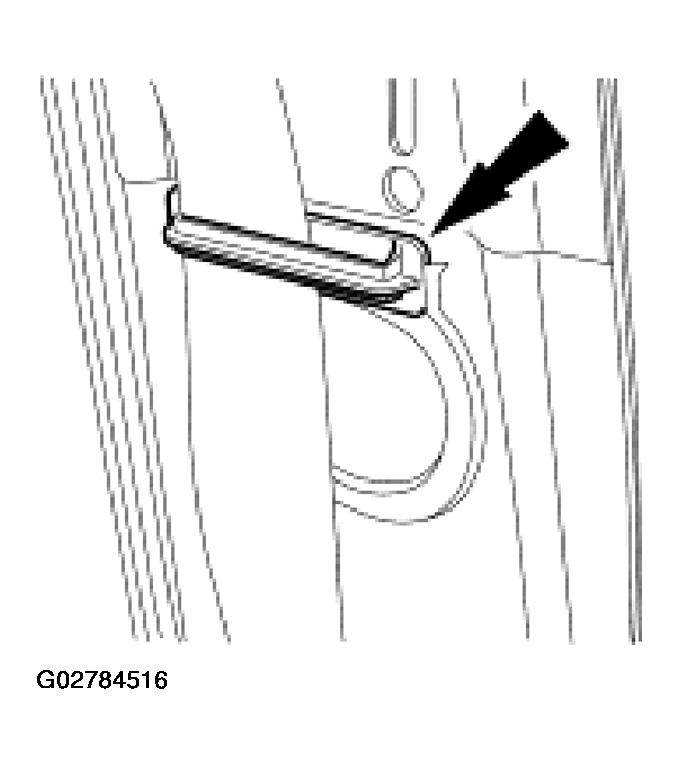

Release the two pin-type retainers and the safety belt guide.

Fig 1: Releasing Pin-Type Retainers And Safety Belt Guide
Courtesy of FORD MOTOR CO.

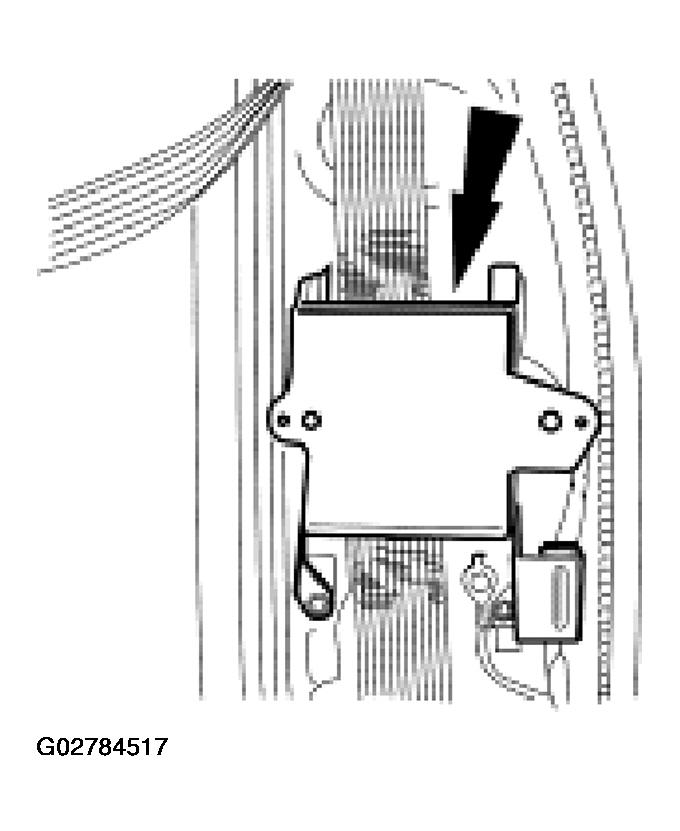

Remove the three bolts and the B-pillar trim panel bracket.

Fig 2: Removing Bolts And B-Pillar Trim Panel Bracket
Courtesy of FORD MOTOR CO.

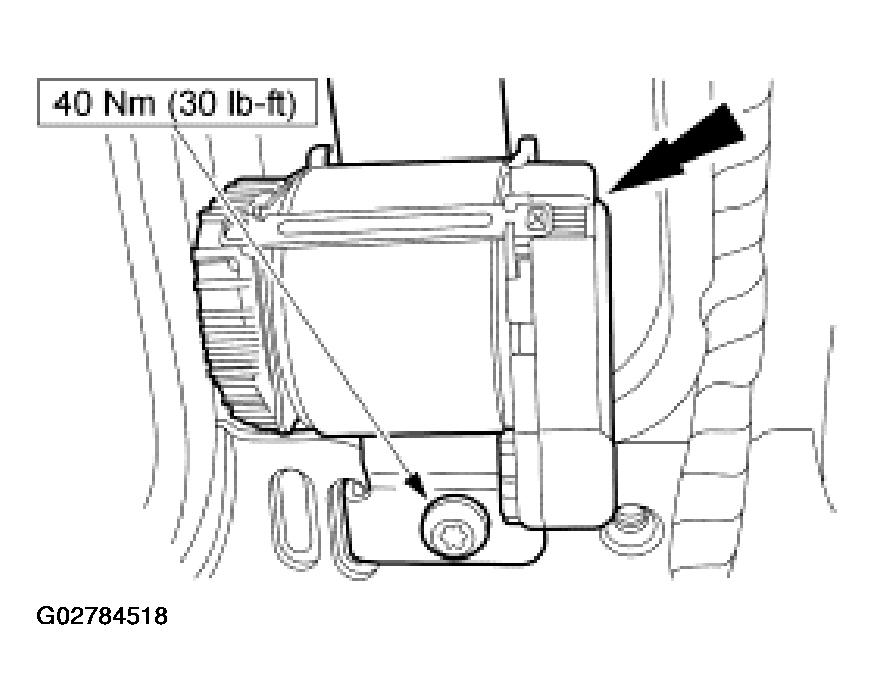

Remove the bolt and the safety belt retractor.

Fig 3: Removing Bolt And Safety Belt Retractor
Courtesy of FORD MOTOR CO.

NOTE: Make sure the safety belt webbing is not twisted prior to installation.

NOTE: Make sure to tighten all nuts and bolts to specification.

To install, reverse the removal procedure.
- When installing the safety belt retractor, make sure to engage the anti-rotation tab to the sheet metal.
- Remove the shipping clip after safety belt retractor installation.
Check the active restraint system for correct operation.
