Transmission, Disassembled View

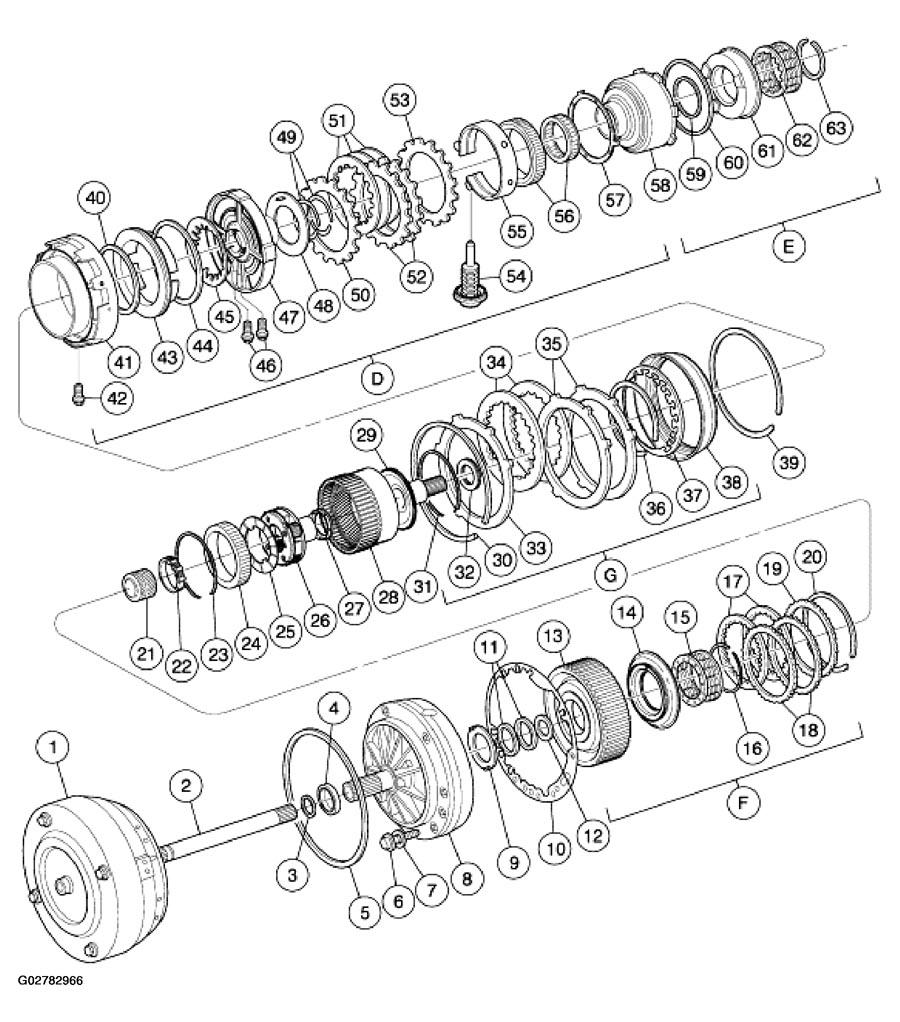

Fig 1: Disassembled View Of Transmission (1 Of 3)
G02782966Courtesy of FORD MOTOR CO.

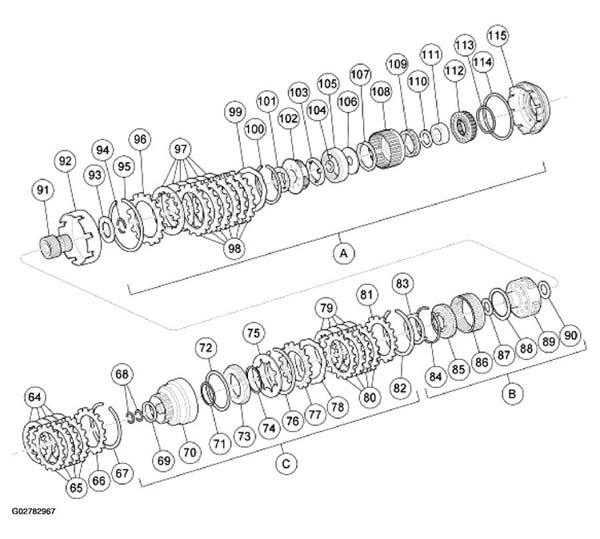

Fig 2: Disassembled View Of Transmission (2 Of 3)
G02782967Courtesy of FORD MOTOR CO.

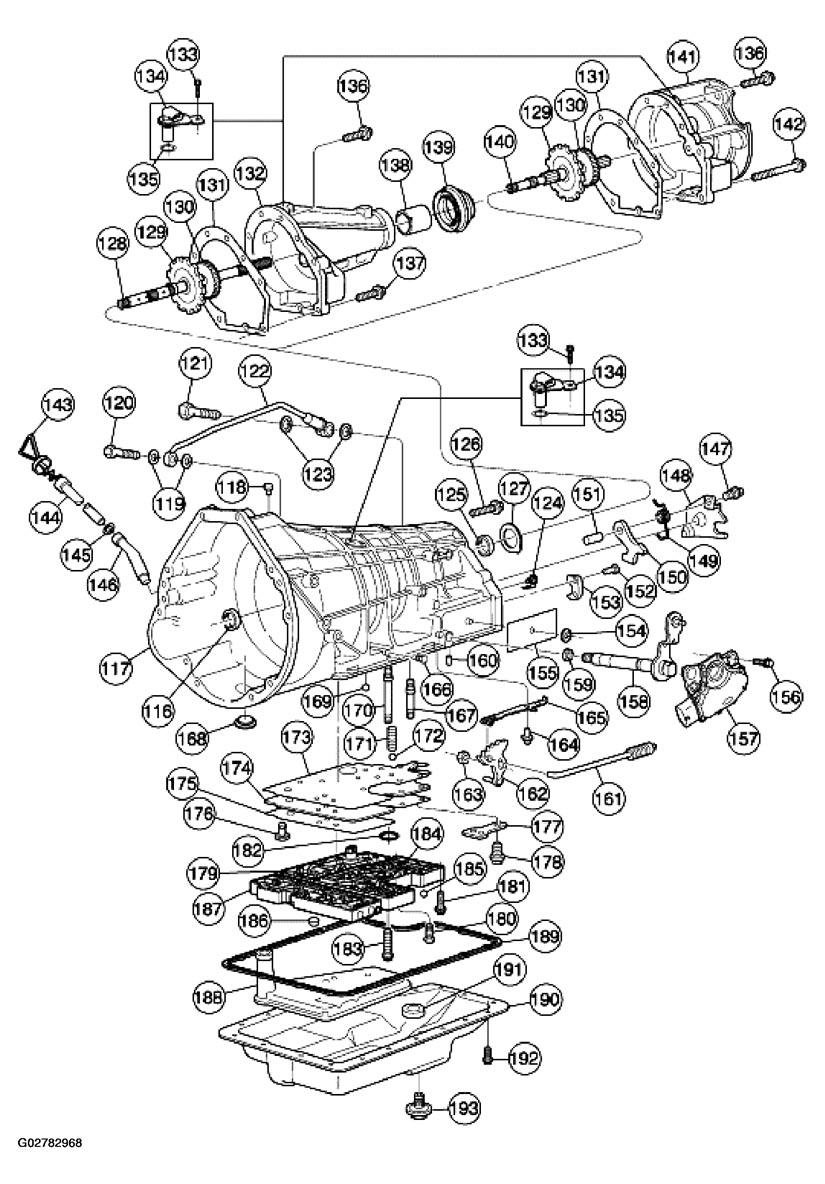

Fig 3: Disassembled View Of Transmission (3 Of 3)
G02782968Courtesy of FORD MOTOR CO.

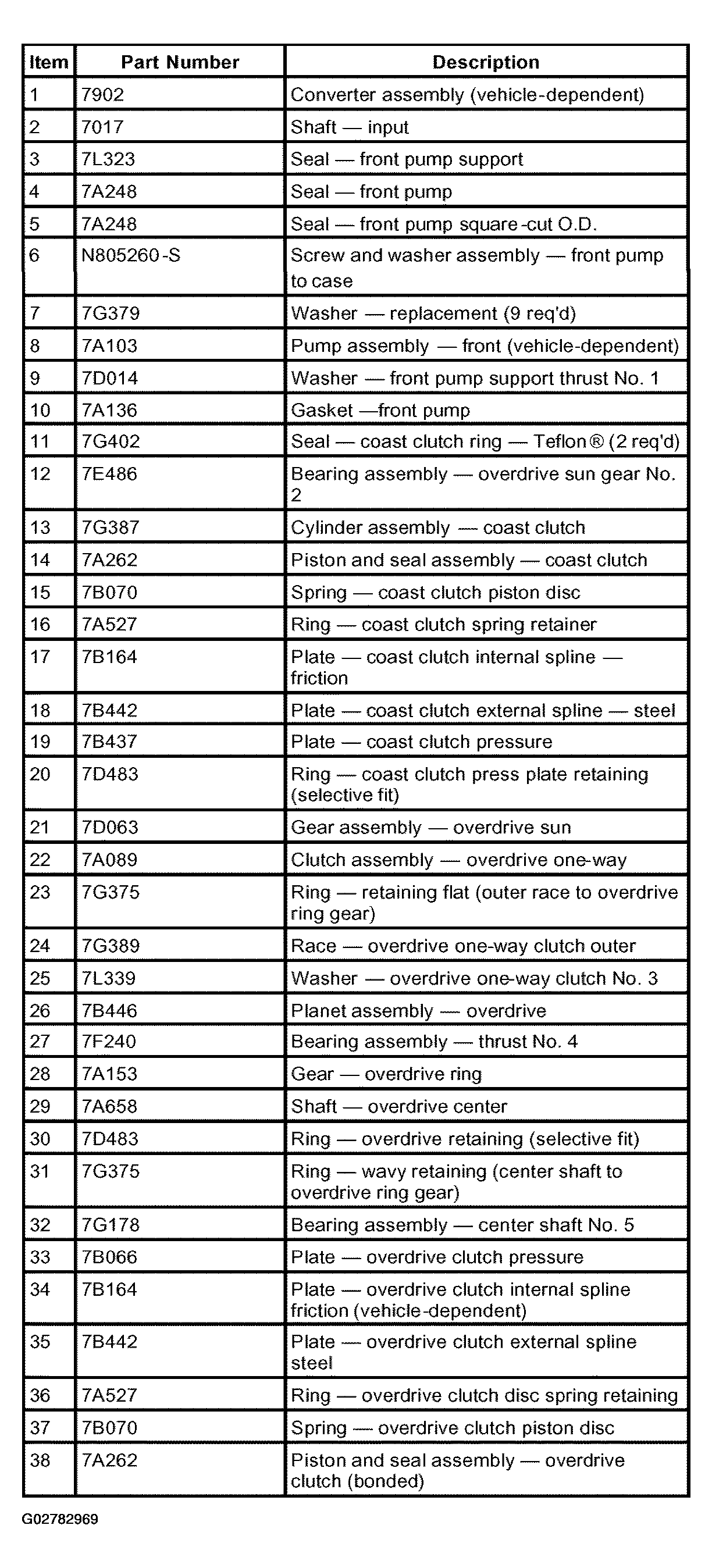

Fig 4: Transmission Disassembled Component Legend (Items 1-38)
G02782969Courtesy of FORD MOTOR CO.

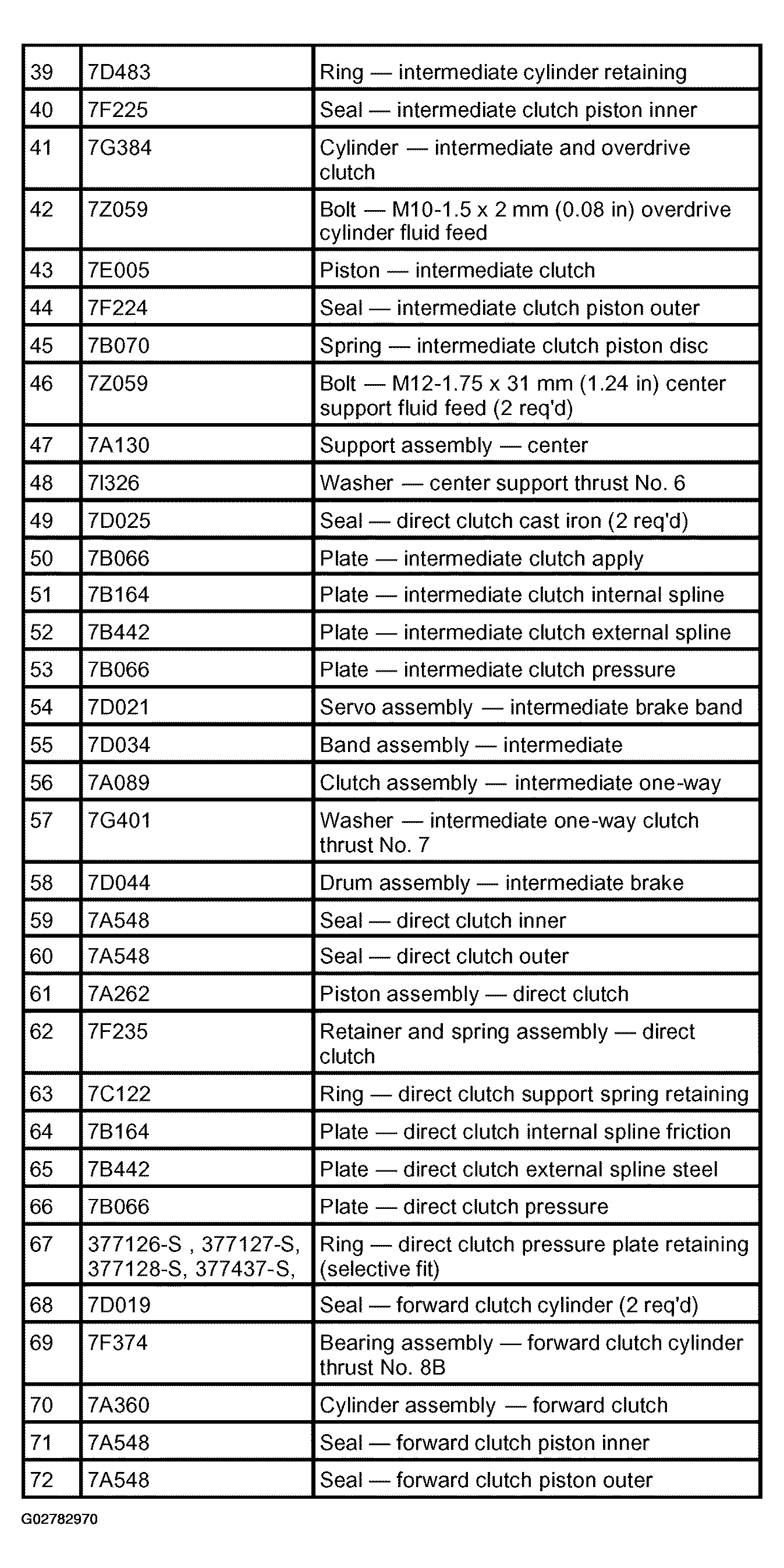

Fig 5: Transmission Disassembled Component Legend (Items 39-72)
G02782970Courtesy of FORD MOTOR CO.

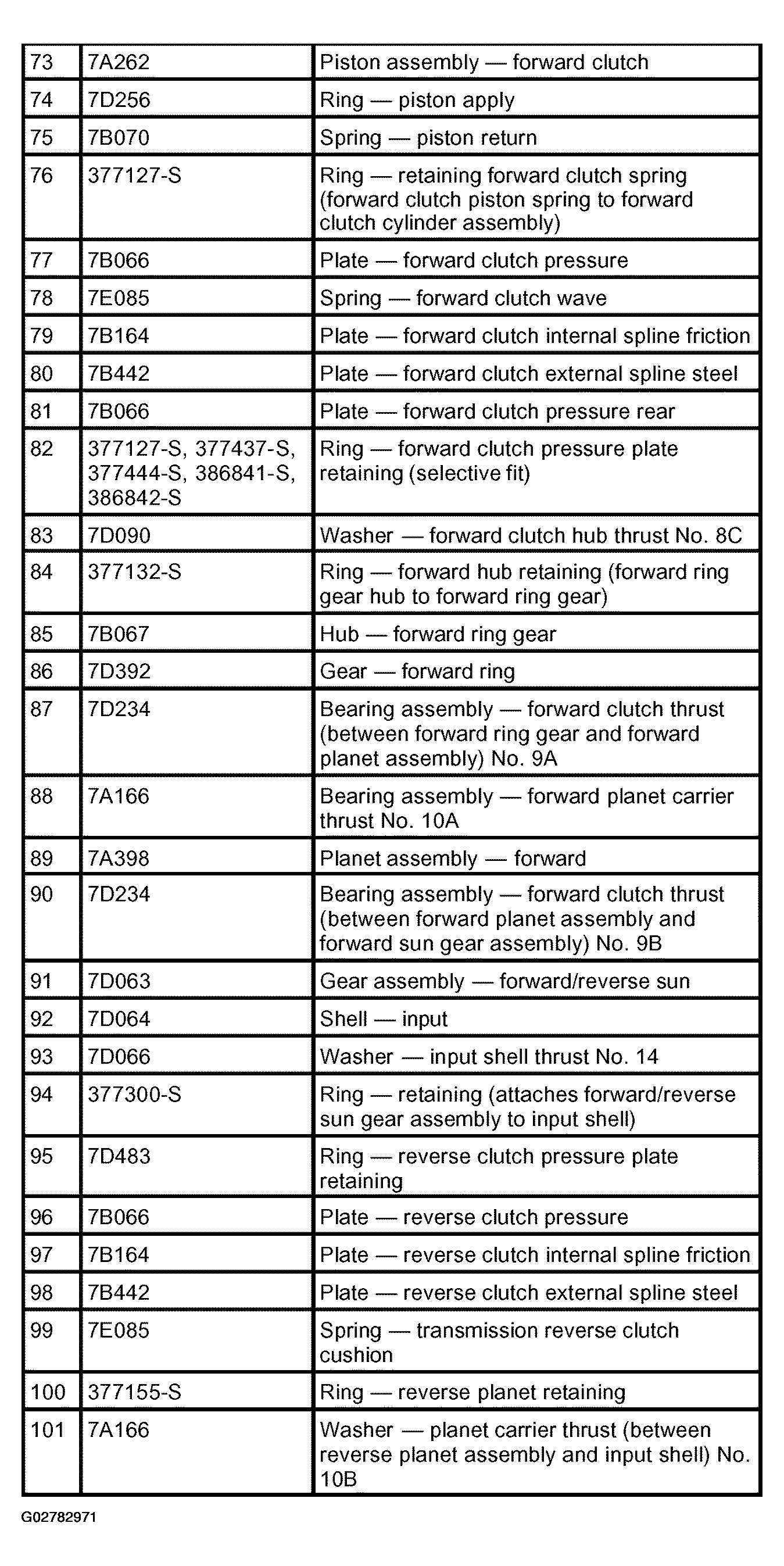

Fig 6: Transmission Disassembled Component Legend (Items 73-101)
G02782971Courtesy of FORD MOTOR CO.

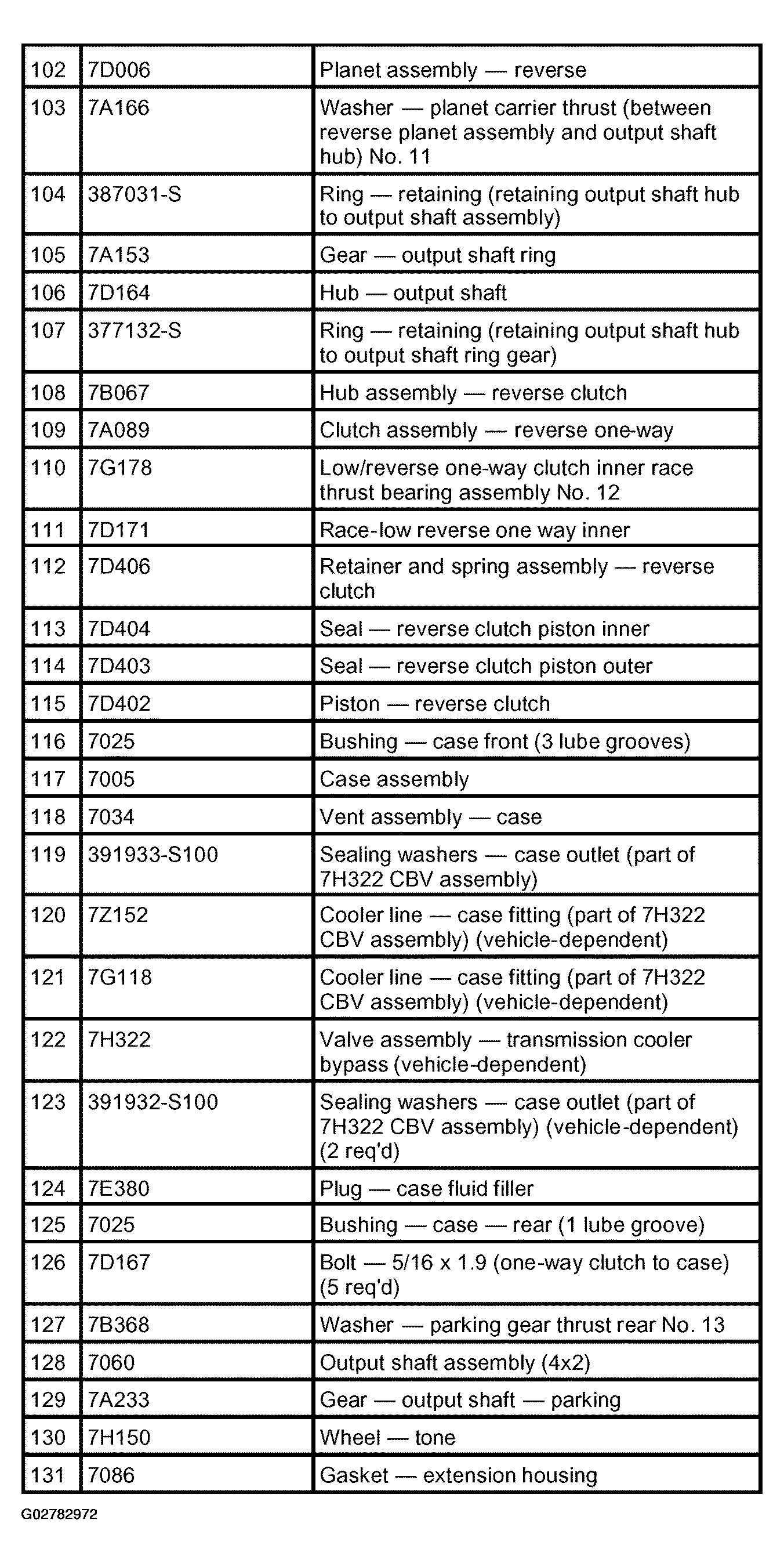

Fig 7: Transmission Disassembled Component Legend (Items 102-131)
G02782972Courtesy of FORD MOTOR CO.

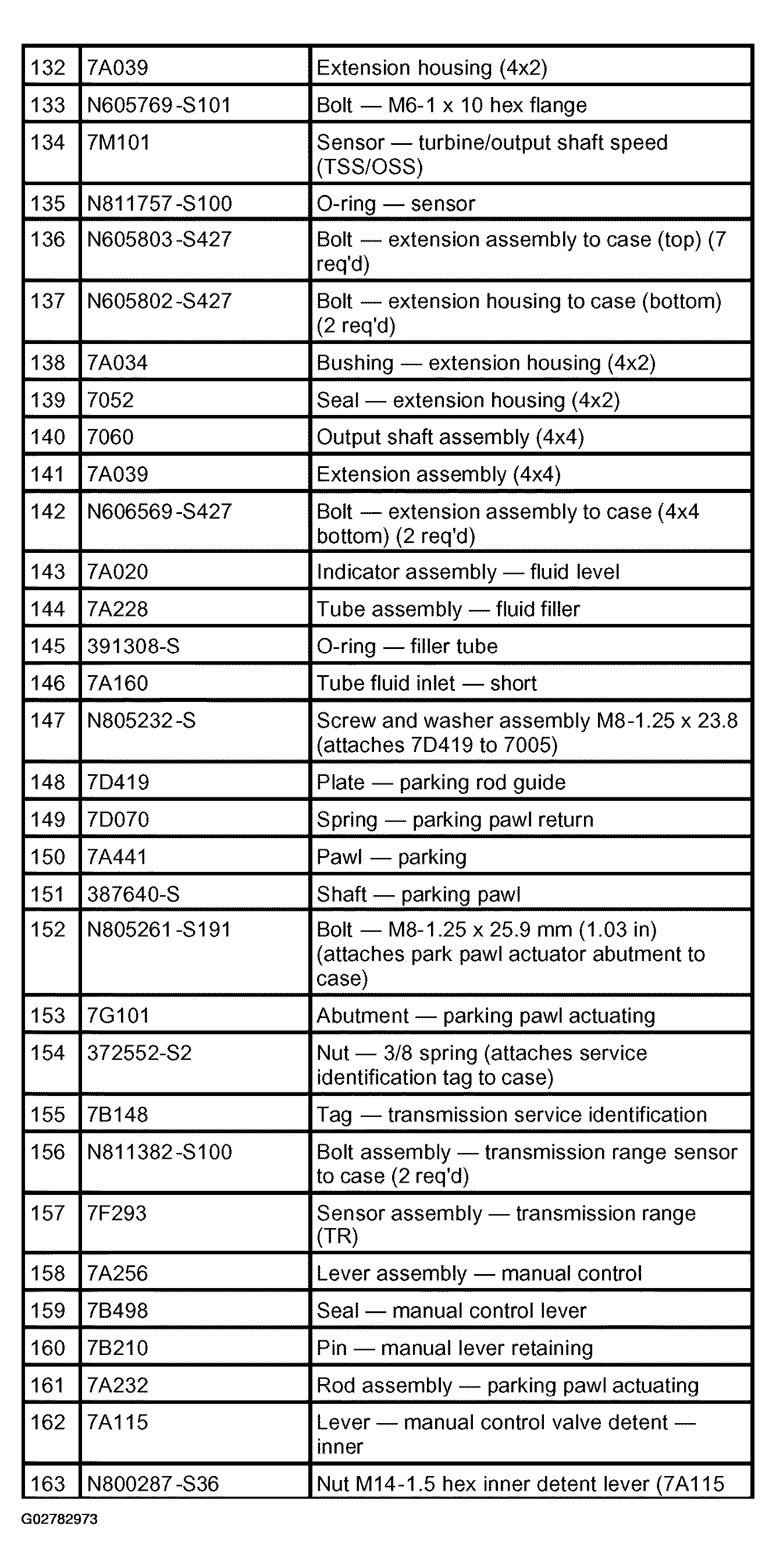

Fig 8: Transmission Disassembled Component Legend (Items 132-163)
G02782973Courtesy of FORD MOTOR CO.

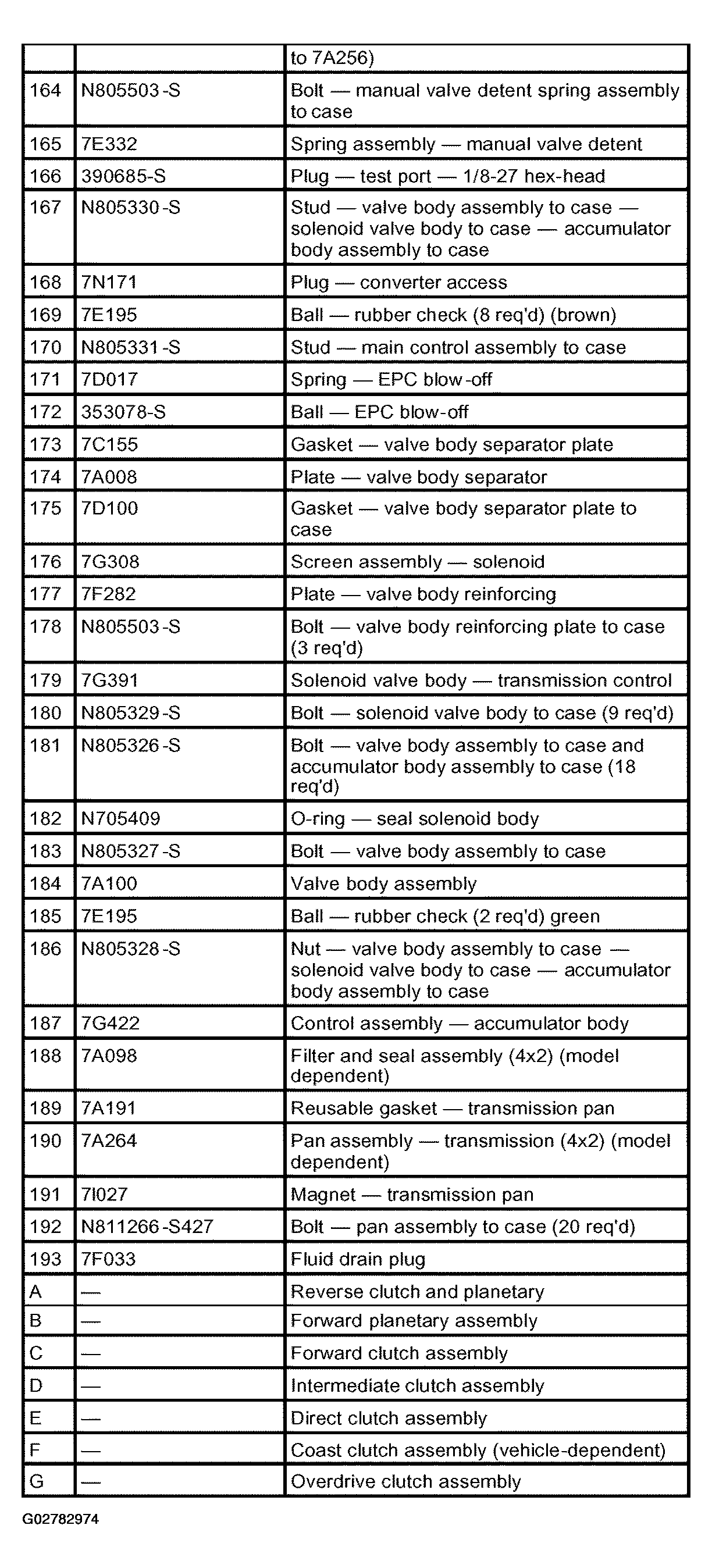

Fig 9: Transmission Disassembled Component Legend (Items 164-193 & A-G)
G02782974Courtesy of FORD MOTOR CO.
