Forward Clutch Assembly, Disassembled View

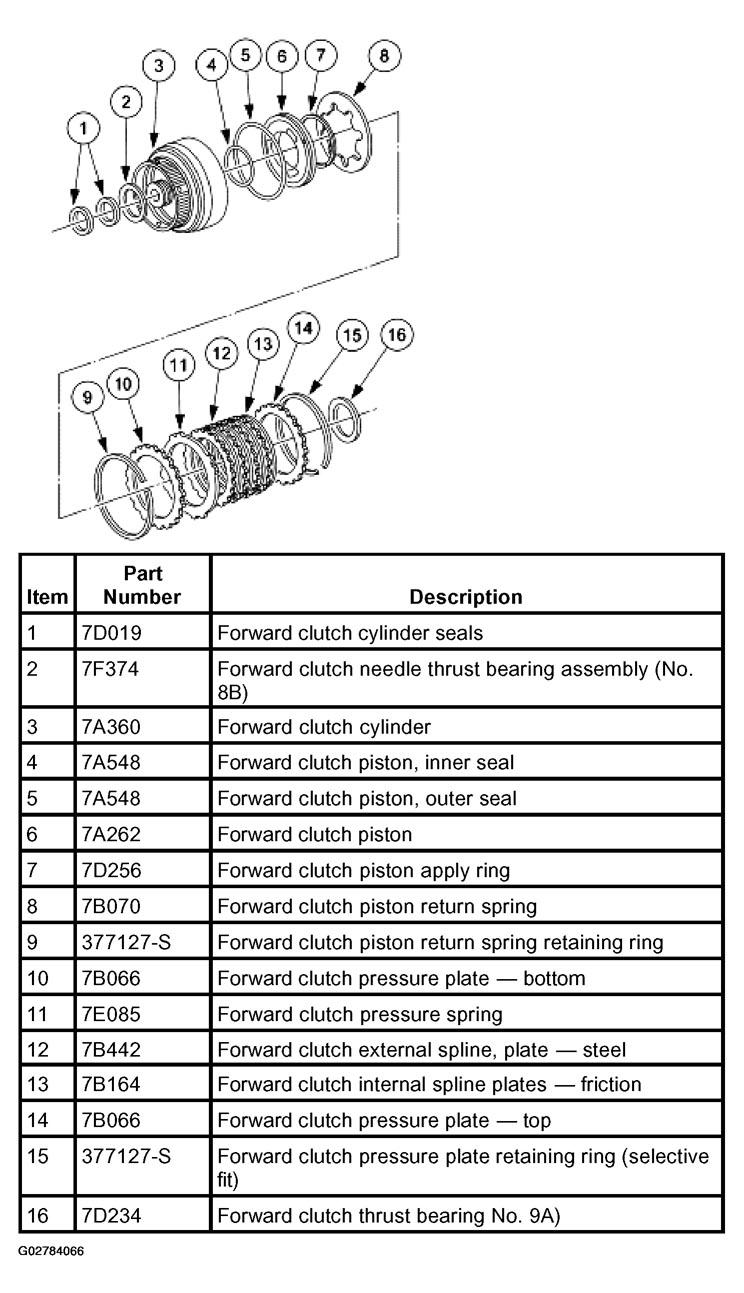

Fig 1: Exploded View Of Forward Clutch Assembly
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
