Pump Assembly, Disassembled View

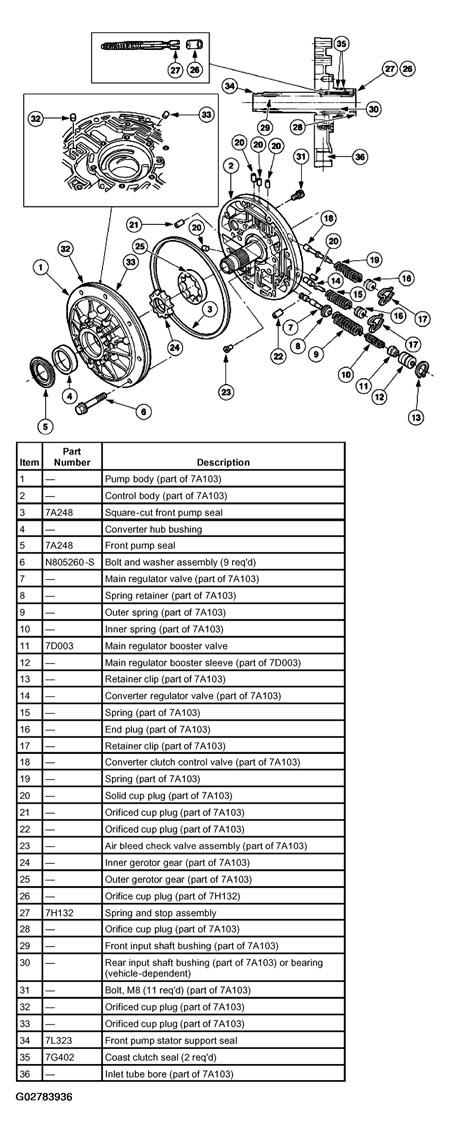

Fig 1: Exploded View Of Pump Assembly
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
