Park System: Installation

    NOTE: If a new park gear needs to be installed, refer to OUTPUT SHAFT - CHECK .

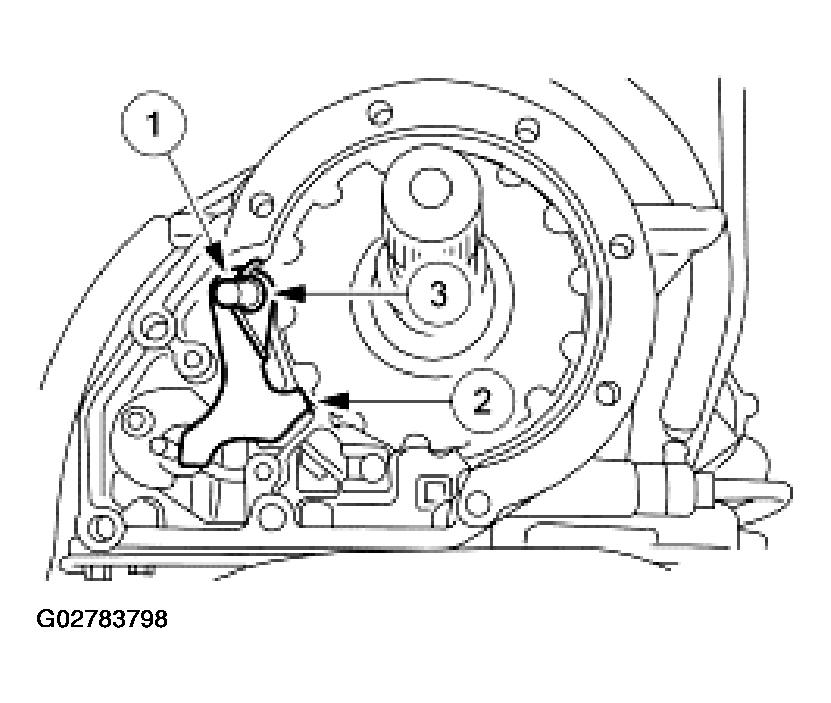

    Fig 1: Installing Park Pawl Shaft
    G02783798Courtesy of FORD MOTOR CO.
  1. Install the park pawl shaft.
    1. Install the park pawl shaft.
    2. Install the park pawl.
    3. Install the park pawl return spring.
  2. Install the parking rod guide plate.
    1. Install the parking rod guide plate.
    2. Install the bolts.

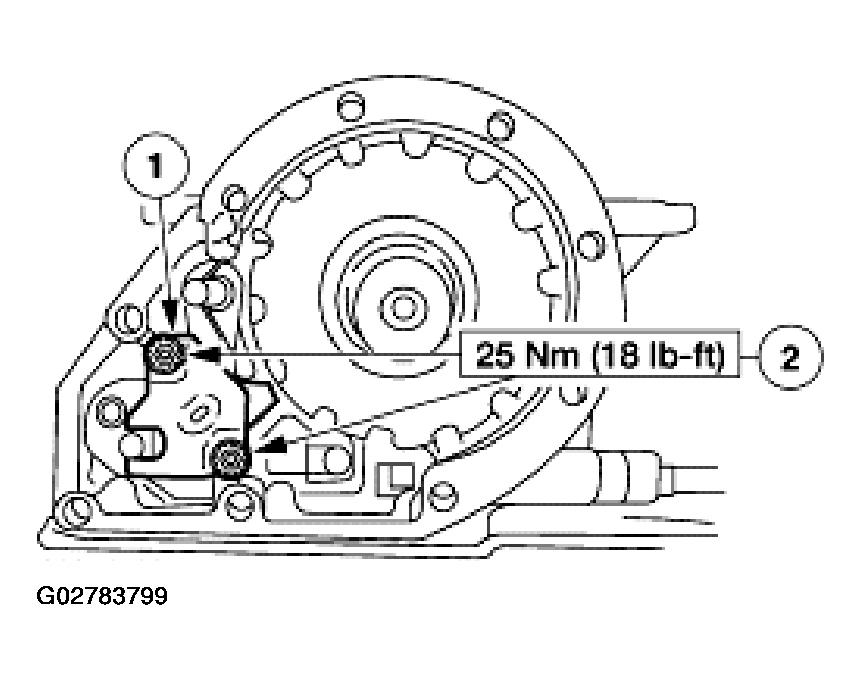

    Fig 2: Installing Parking Rod Guide Plate
    G02783799Courtesy of FORD MOTOR CO.
  3. Install the extension housing gasket and the extension housing. For additional information, refer to EXTENSION HOUSING GASKET - 4X2  or EXTENSION HOUSING GASKET - 4X4 .
