Accelerator Pedal And Shaft - Adjustable: Installation

CAUTION: Before driving the vehicle, check that the engine returns to idle after depressing the accelerator.
  1. Install the accelerator pedal and shaft assembly and the two nuts.

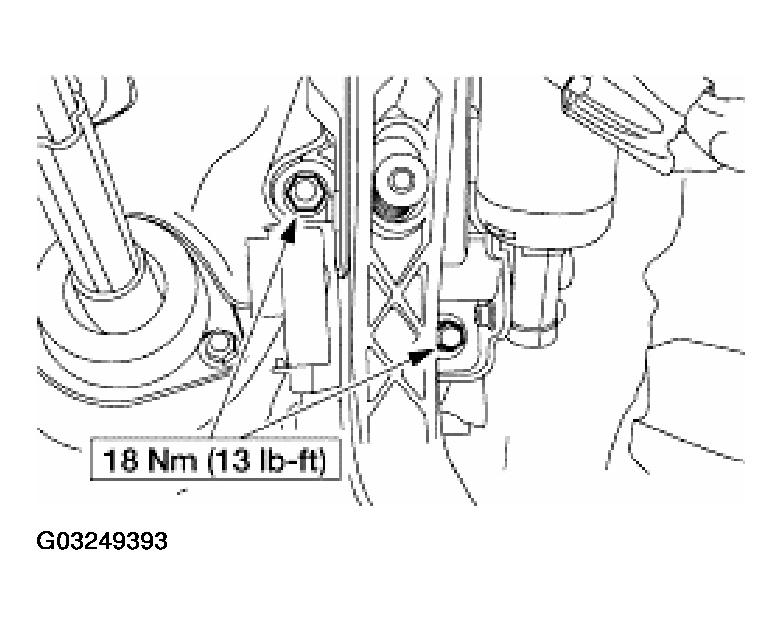

    Fig 1: Installing Accelerator Pedal And Shaft Assembly
    G03249393Courtesy of FORD MOTOR CO.
  2. Connect the drive motor electrical connector.

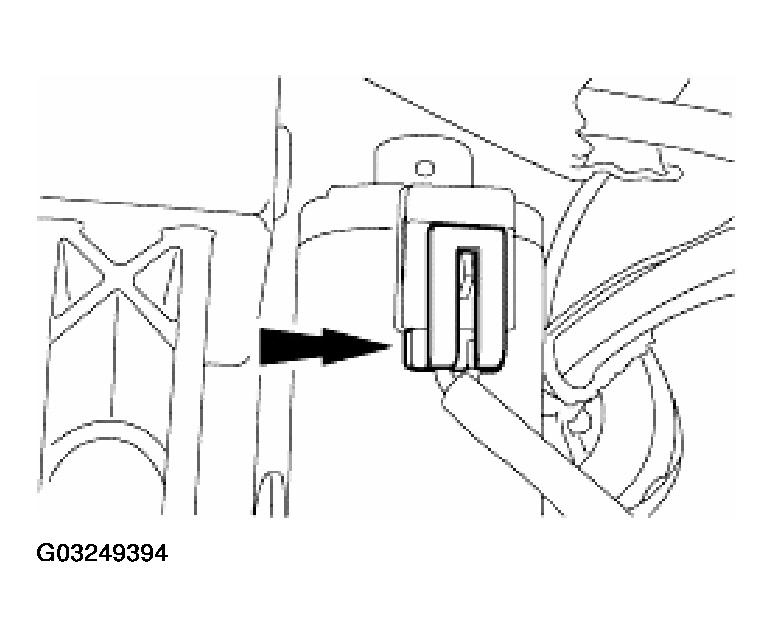

    Fig 2: Connecting Drive Motor Electrical Connector
    G03249394Courtesy of FORD MOTOR CO.
  3. Attach the accelerator cable to the accelerator pedal and shaft assembly.

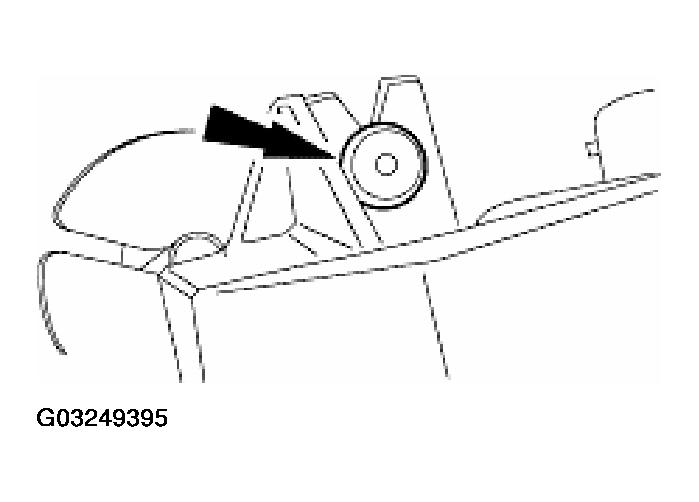

    Fig 3: Attaching Accelerator Cable To Accelerator Pedal And Shaft Assembly
    G03249395Courtesy of FORD MOTOR CO.
  4. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  5. Index the adjustable brake and accelerator pedals. For additional information, refer to DISC .
  6. Install the instrument close-out panel.
    1. Turn the lamp socket clockwise to connect it to the close-out panel.
    2. Insert the pushpins in locations shown.

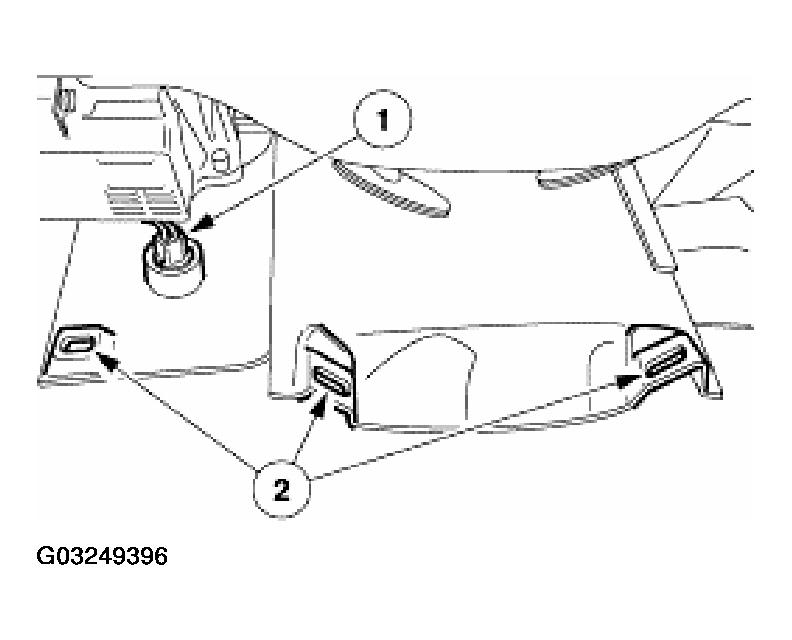

    Fig 4: Installing Instrument Close-Out Panel
    G03249396Courtesy of FORD MOTOR CO.
