Throttle Body: Removal

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.

CAUTION: The throttle body bore and plate area have a special coating and cannot be cleaned.

Remove the resonator and tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Disconnect the throttle position (TP) sensor electrical connectors.

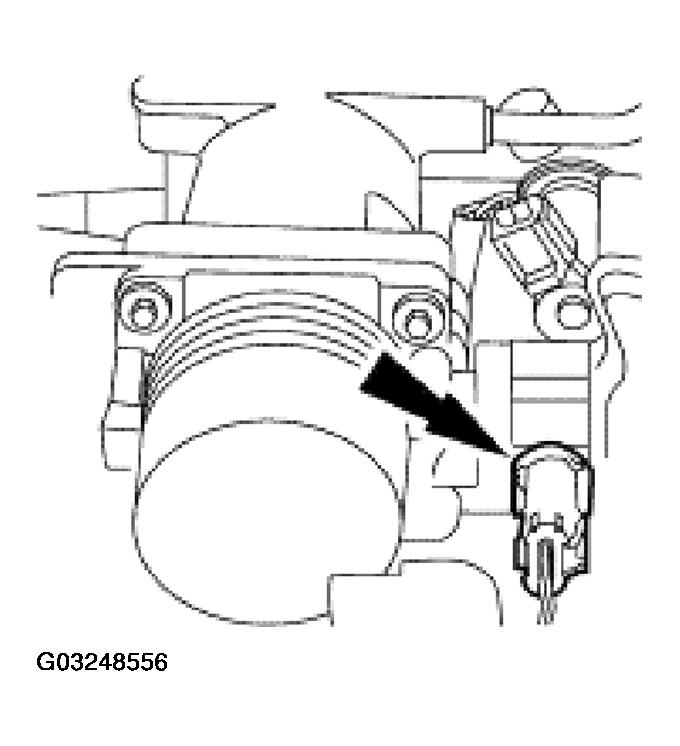

Fig 1: Disconnecting Throttle Position (TP) Sensor Electrical Connectors
Courtesy of FORD MOTOR CO.
Disconnect the throttle return spring, the accelerator cable and the speed control cable.

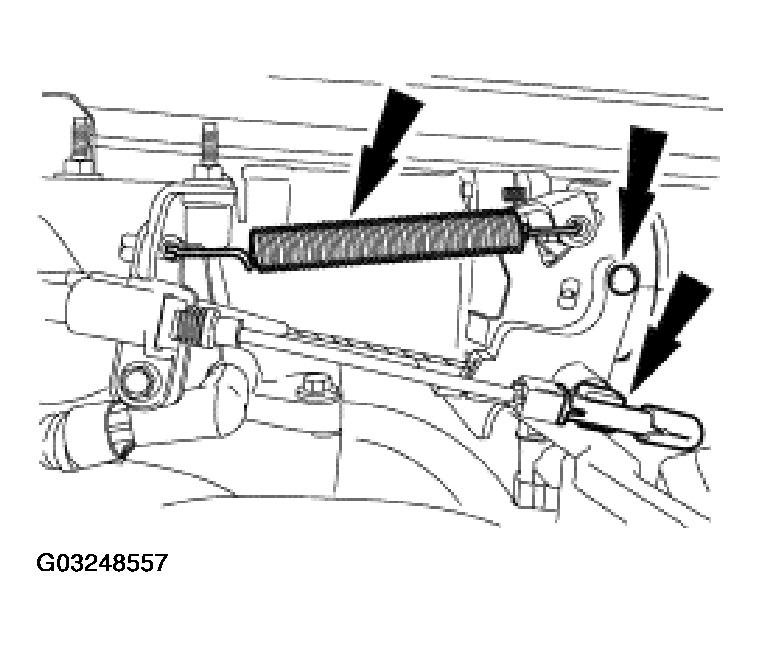

Fig 2: Disconnecting Throttle Return Spring, Accelerator Cable And Speed Control Cable
Courtesy of FORD MOTOR CO.

NOTE: Discard the throttle body (TB) gasket.

Remove the four bolts and the throttle body.

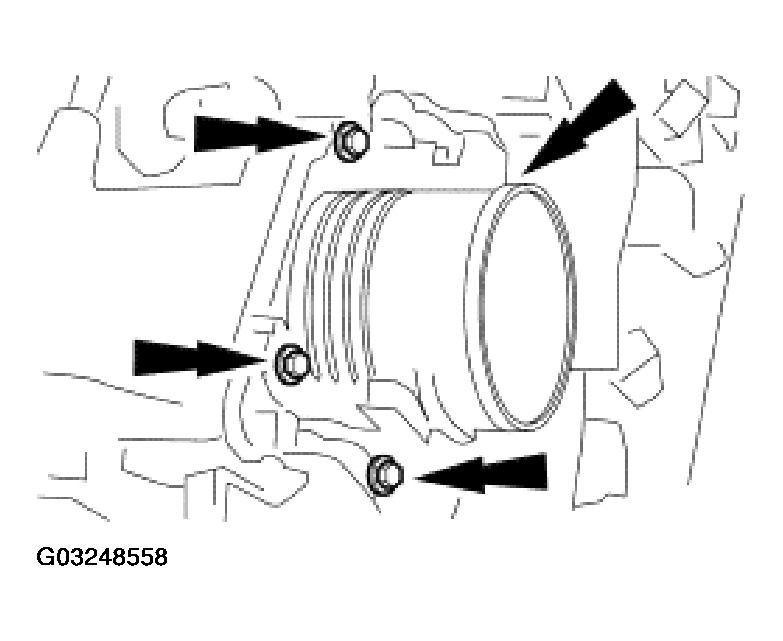

Fig 3: Removing Throttle Body
Courtesy of FORD MOTOR CO.
