Wheel Speed Sensor - Front: Notes

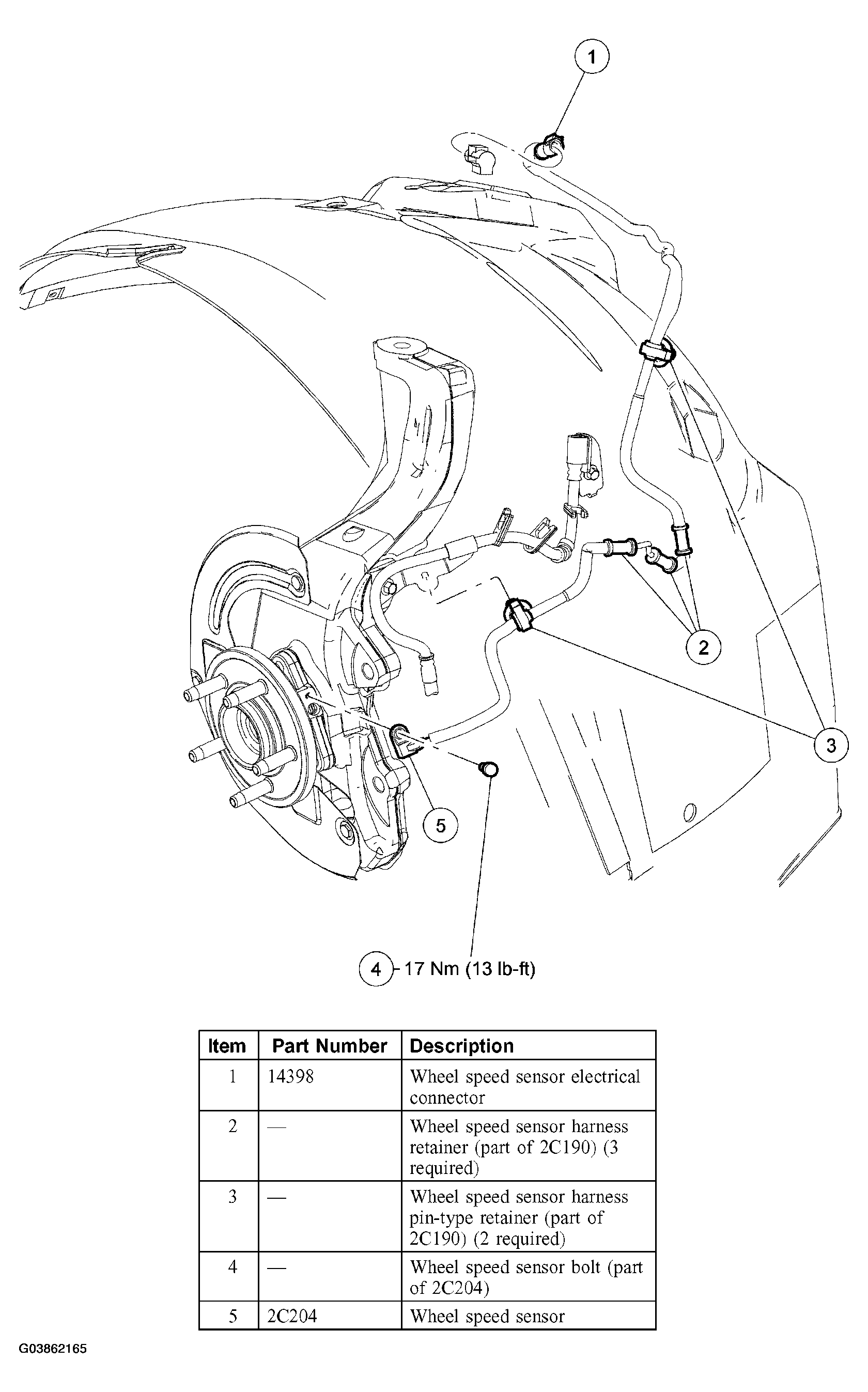

Fig 1: Identifying Wheel Speed Sensor - Front
G03862165Courtesy of FORD MOTOR CO.
