Cylinder Head: Notes

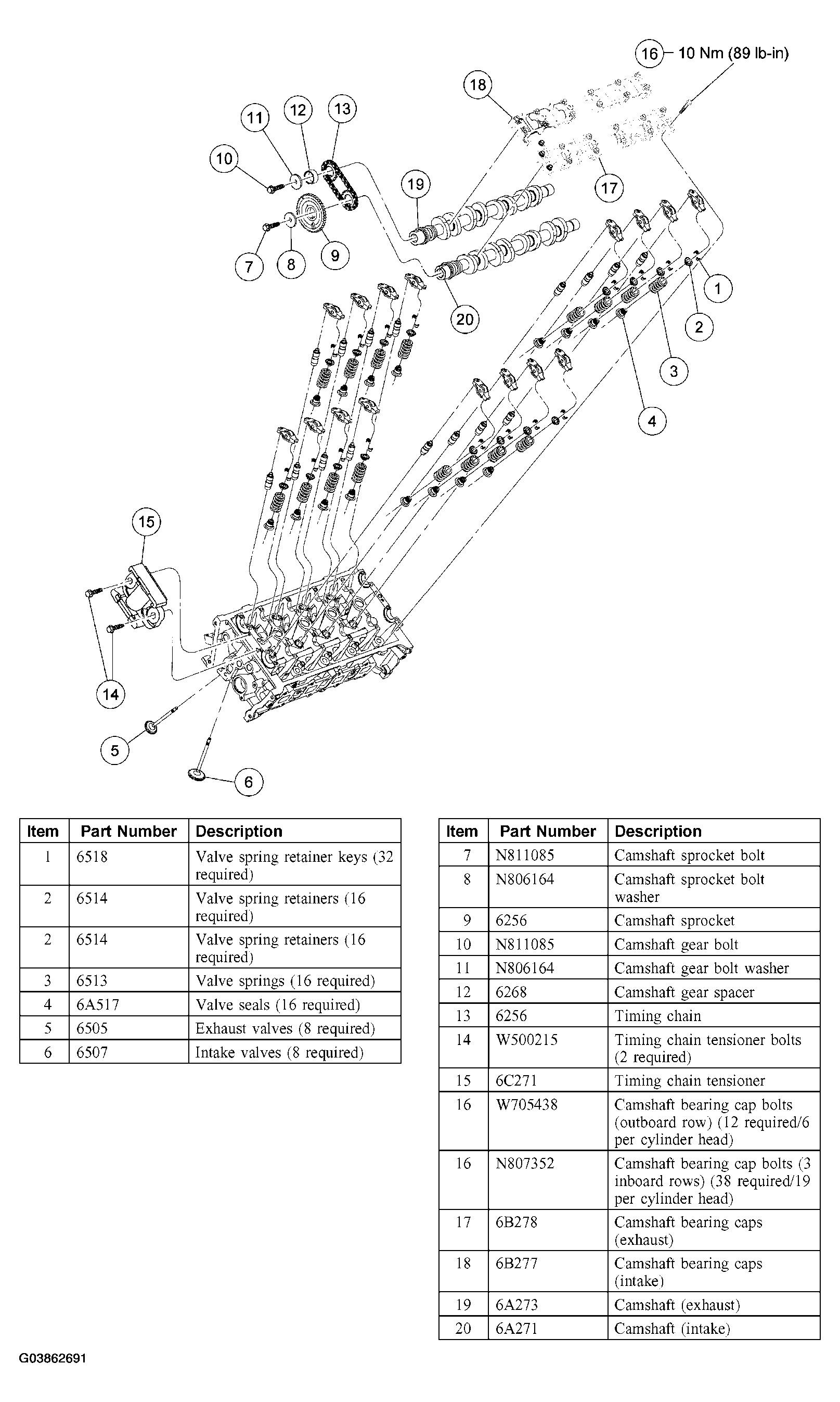

Fig 1: Exploded View Of Cylinder Head Components (Torque Specs)

G03862691

Courtesy of FORD MOTOR CO.
