Engine Support Insulators: Notes

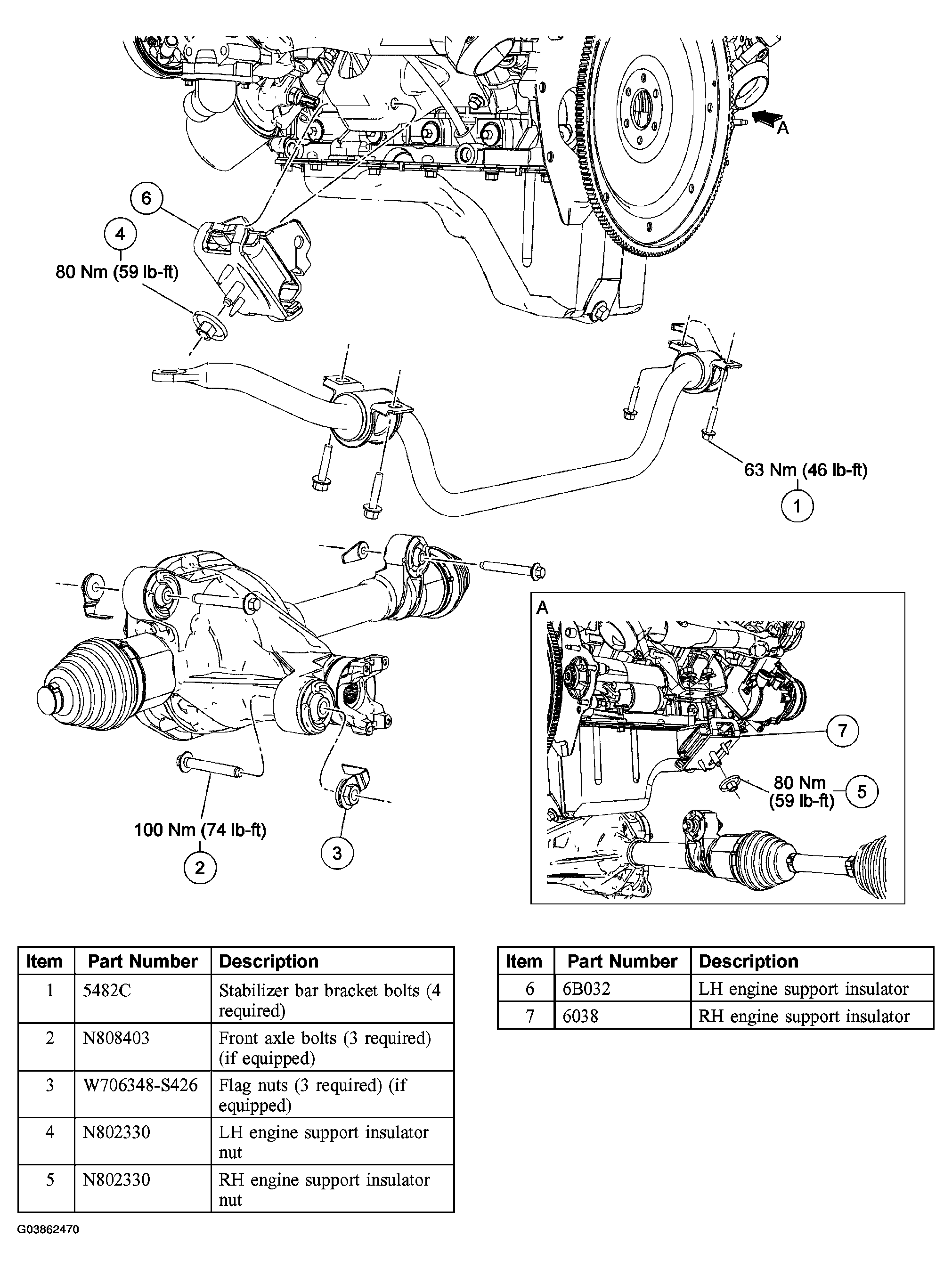

Fig 1: Engine Support Replacement Components (Torque Specs)

G03862470

Courtesy of FORD MOTOR CO.
