Exhaust Manifold - RH: Notes

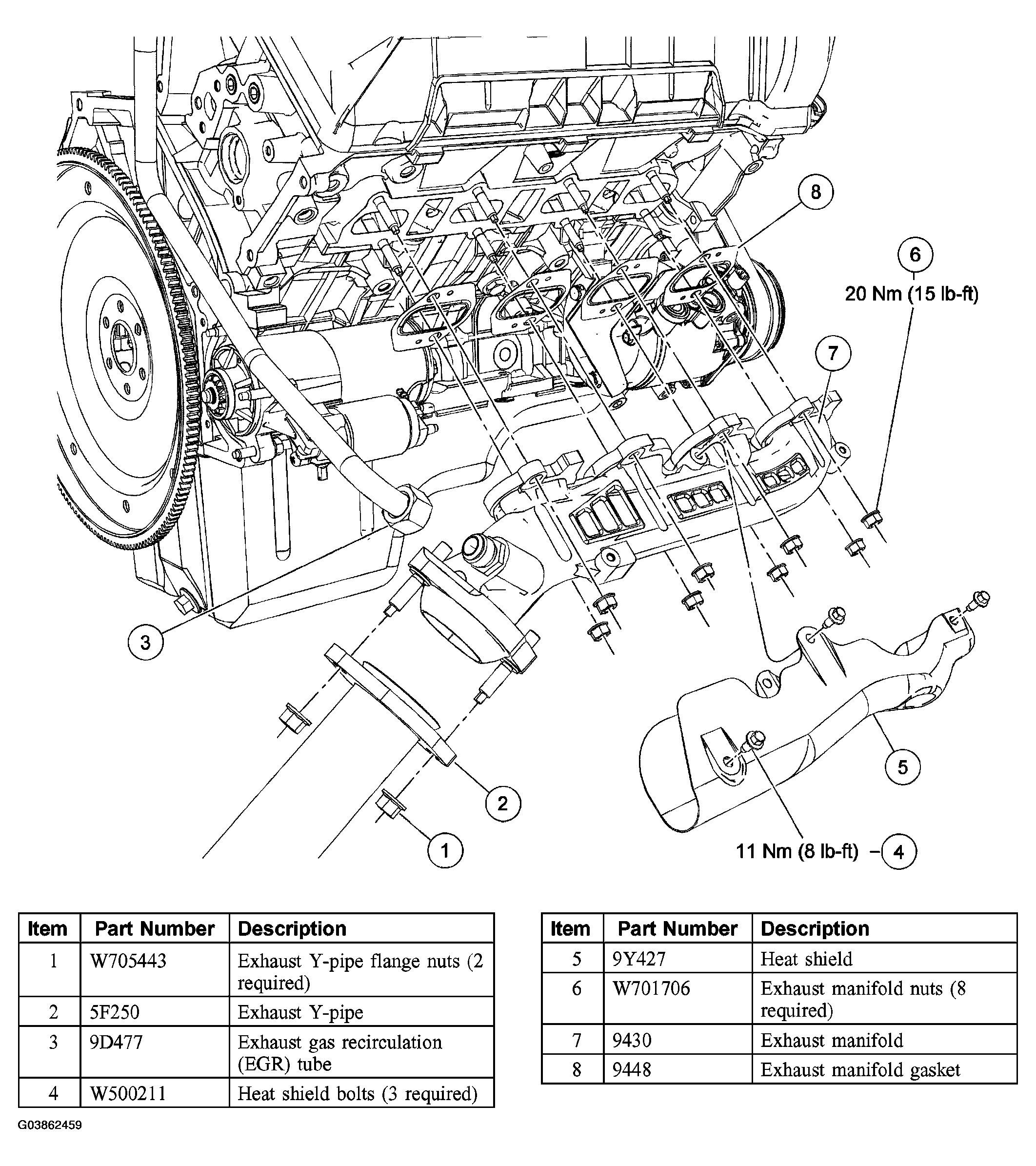

Fig 1: Exhaust Manifold - RH - Component Locations (Torque Specs)

G03862459

Courtesy of FORD MOTOR CO.
