Oil Level Indicator and Tube: Notes

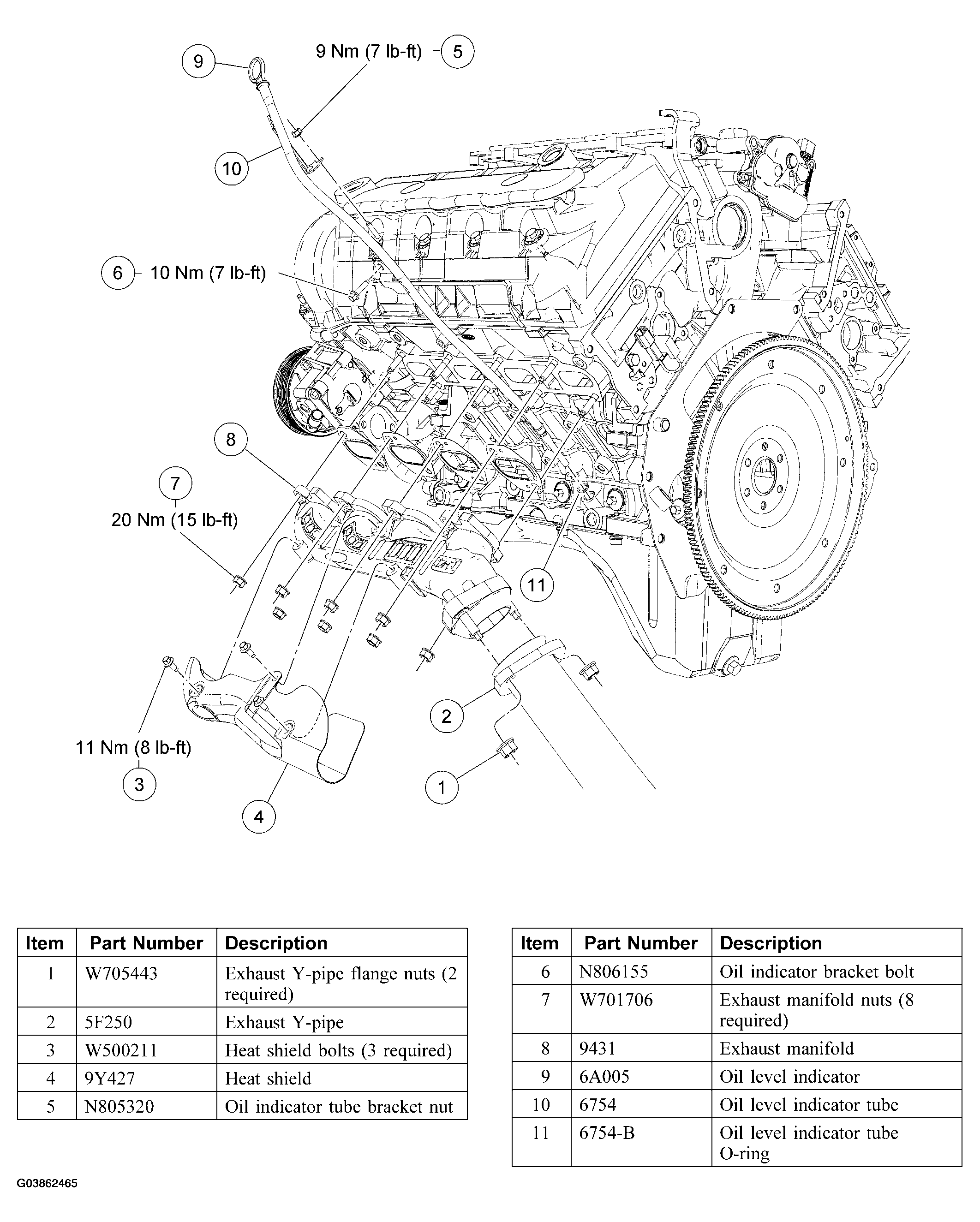

Fig 1: Oil Level Indicator And Tube (Torque Specs)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
