Timing Drive Components: Notes

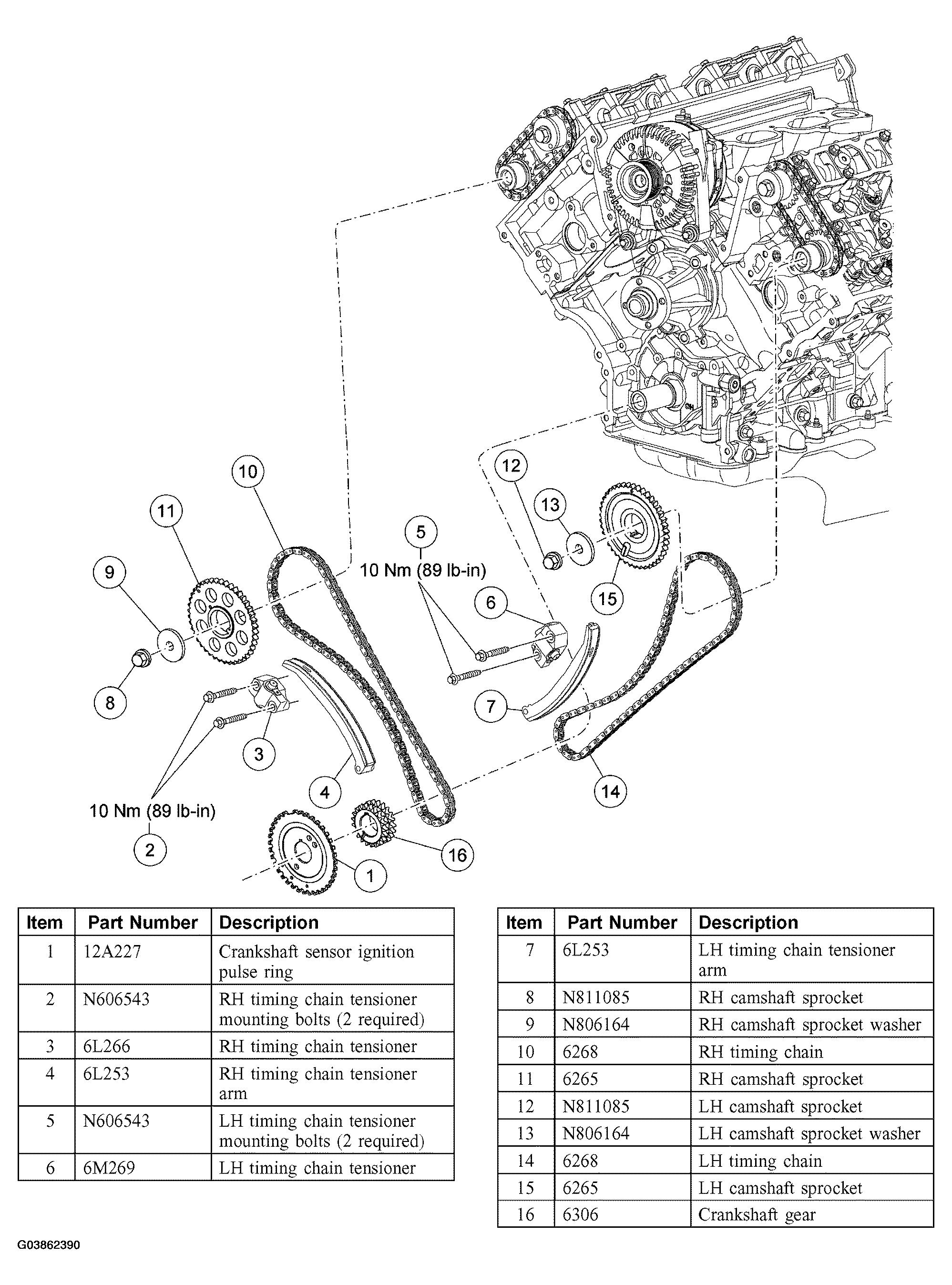

Fig 1: Crankshaft Sensor Ignition Pulse Ring Replacement Components (Torque Specs)
G03862390Courtesy of FORD MOTOR CO.

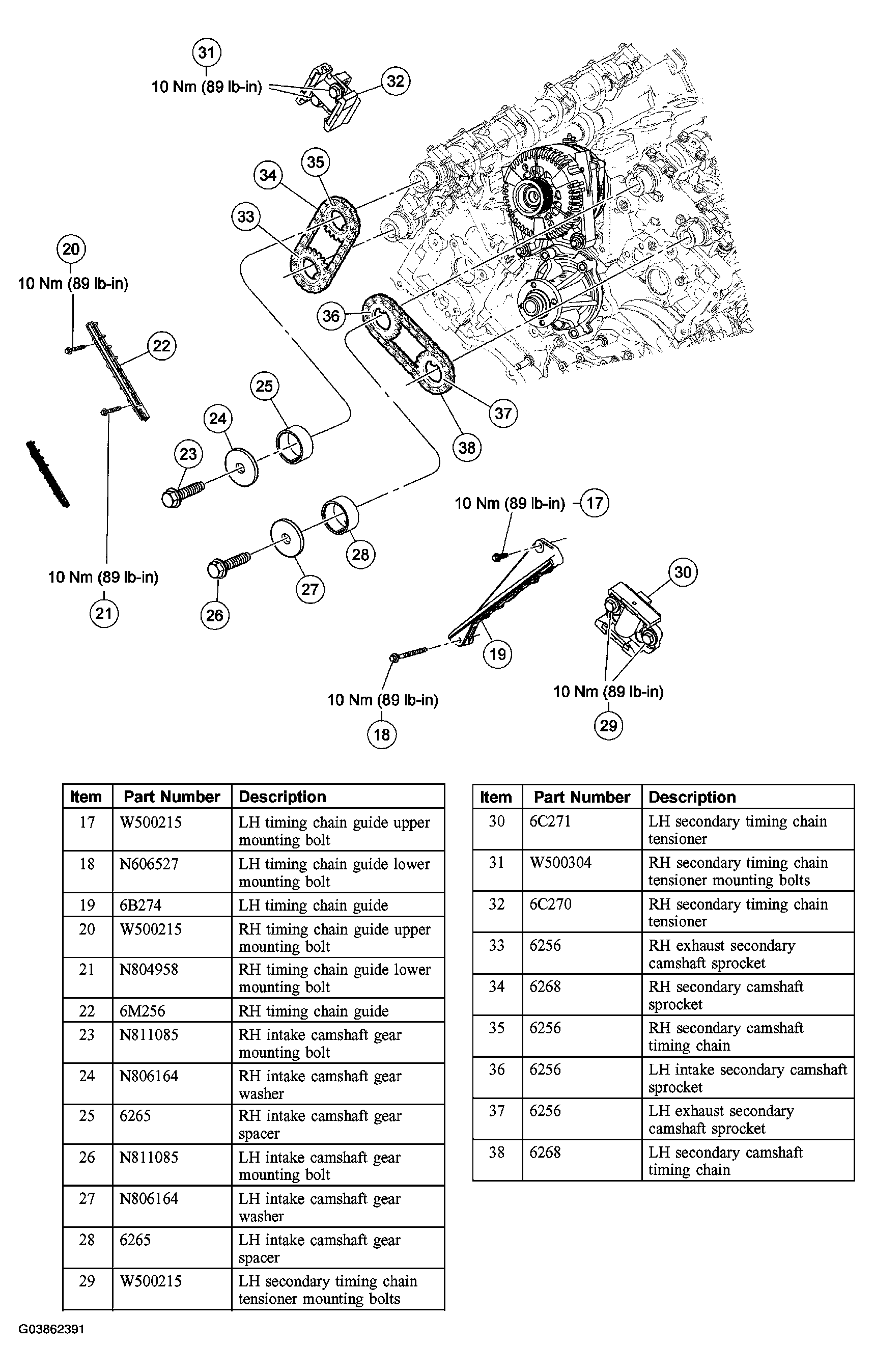

Fig 2: LH Timing Chain Guide Upper Mounting Bolt (Torque Specs)
G03862391Courtesy of FORD MOTOR CO.
