Upper Intake Manifold: Notes

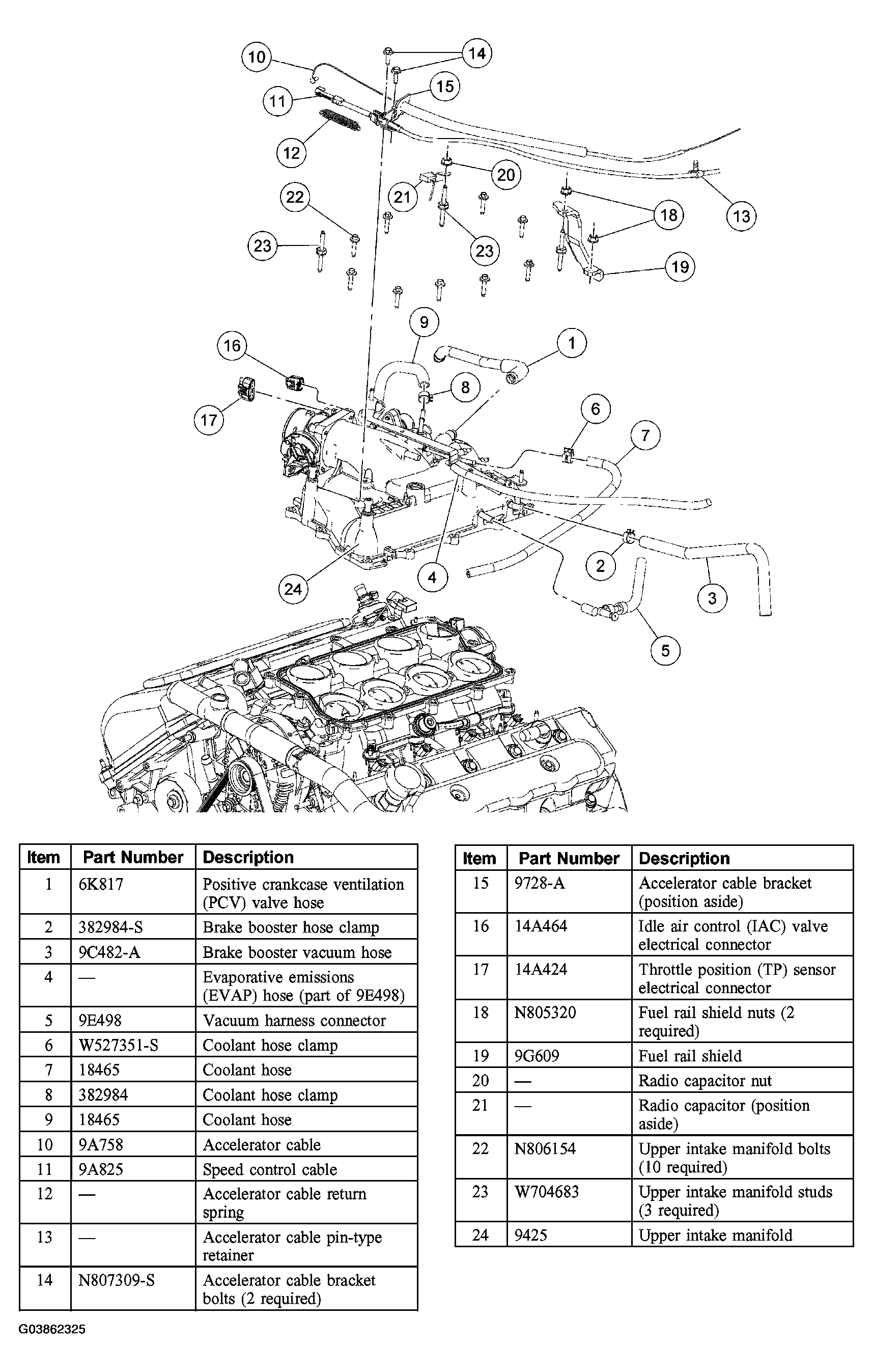

Fig 1: Exploded View Of Upper Intake Manifold Components

G03862325

Courtesy of FORD MOTOR CO.
