Brake Shift Interlock Switch

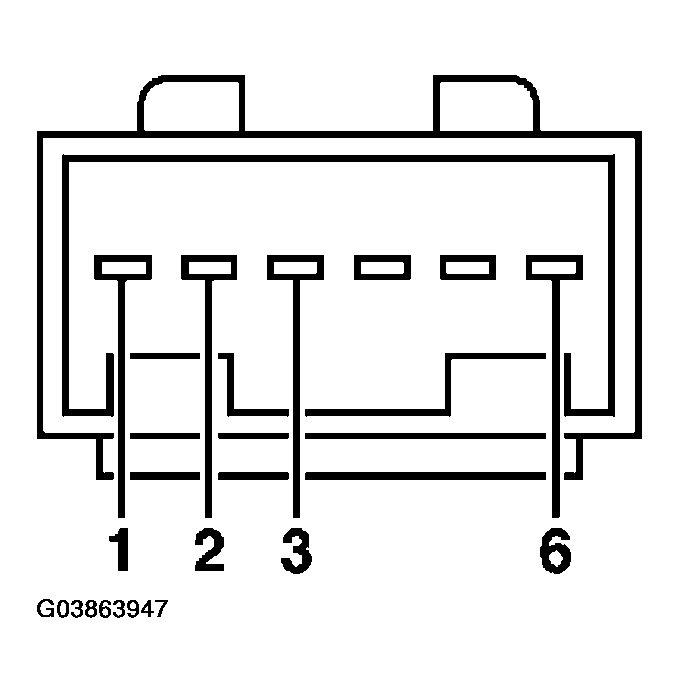

Fig 1: Identifying Brake Shift Interlock Switch Pinouts
G03863947Courtesy of FORD MOTOR CO.
BRAKE SHIFT INTERLOCK SWITCH REFERENCE CHART

Pin Number Circuit Description
1 Voltage in run
2 Brake Pedal Position Switch Input
3 Ground
6 Key lock
