Selector Lever Cable: Installation

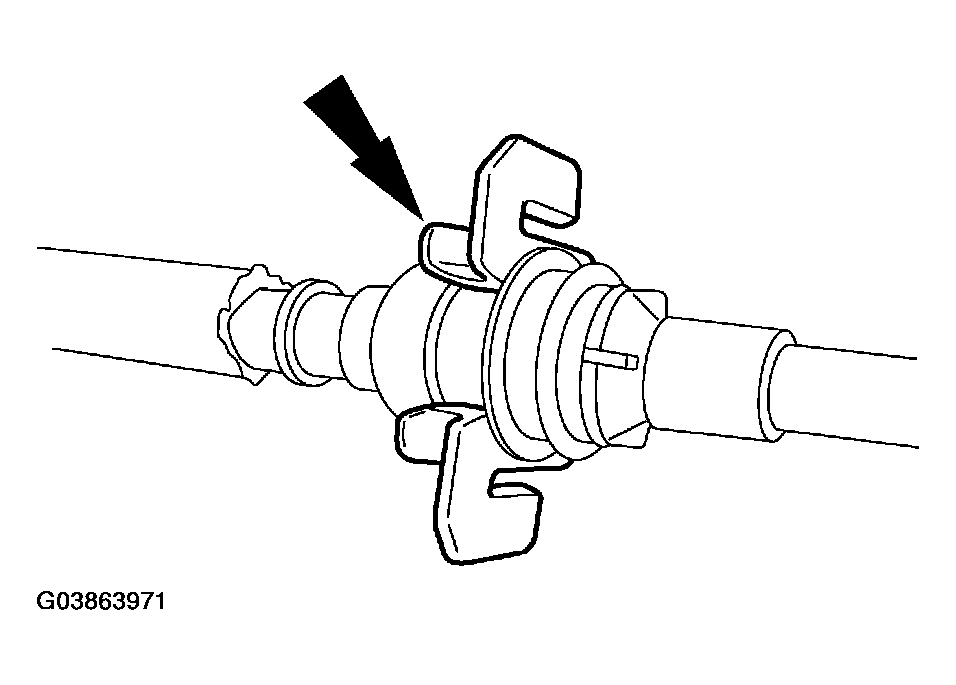

Install new shift cable retainers on both ends of the shift cable.

Fig 1: Installing New Shift Cable Retainers On Both Ends Of Shift Cable
Courtesy of FORD MOTOR CO.
Position the shift cable through the opening of the bulkhead. Do not seat the rubber grommet in the bulkhead at this time.

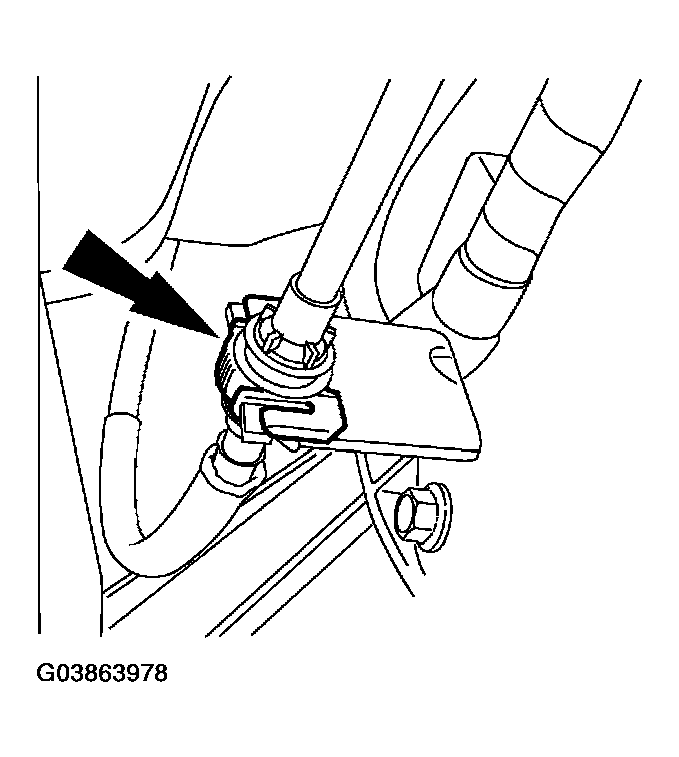

Connect the shift cable to the transmission selector lever bracket.

Fig 2: Connecting Shift Cable To Transmission Selector Lever Bracket
Courtesy of FORD MOTOR CO.
Connect the shift cable to the transmission selector lever.

Fig 3: Connecting Shift Cable To Transmission Selector Lever
Courtesy of FORD MOTOR CO.

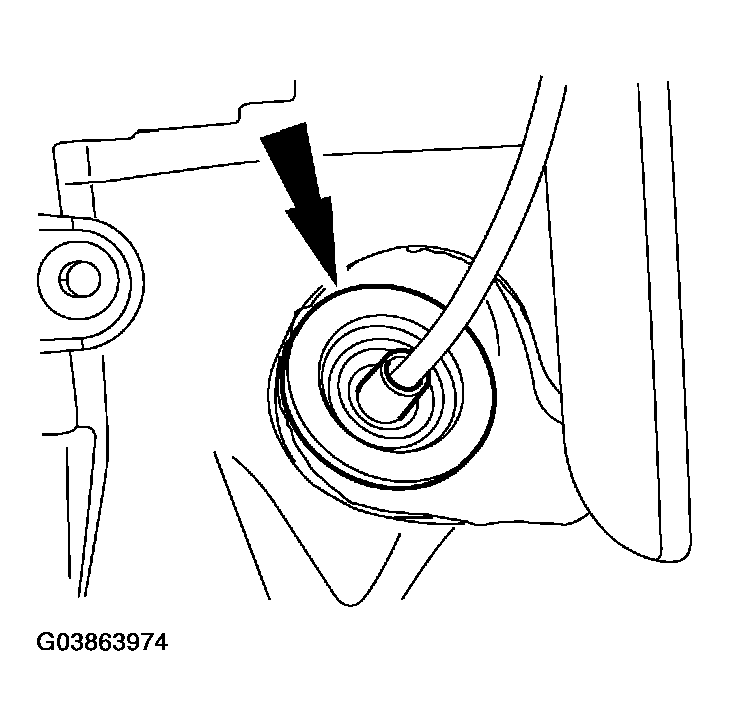

Seat the rubber grommet in the bulkhead.

Fig 4: Seating Rubber Grommet In Bulkhead
Courtesy of FORD MOTOR CO.

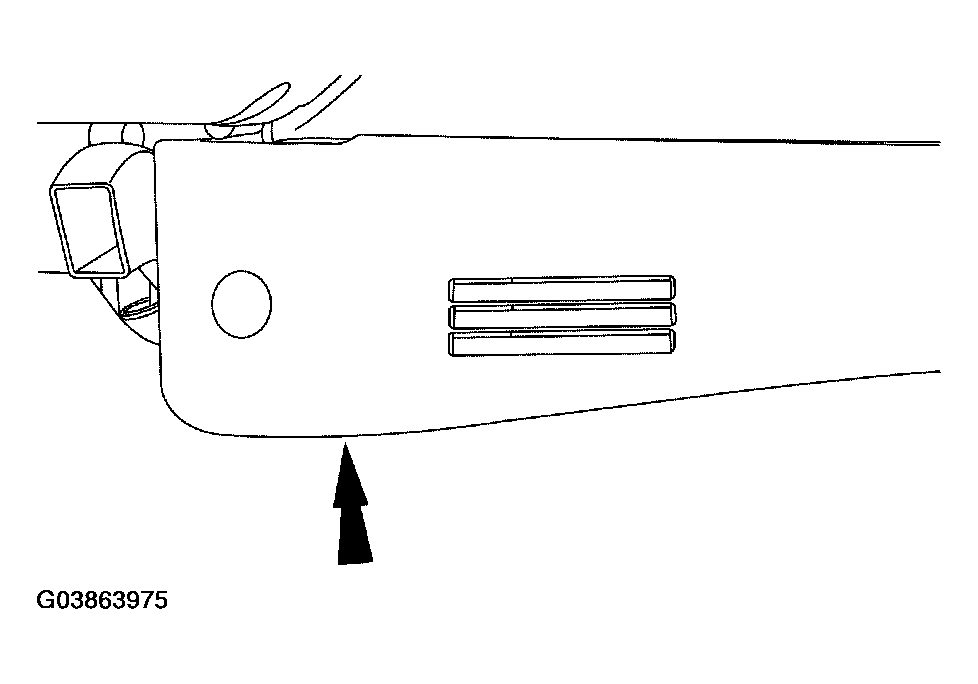

Install the left console access panel.

Fig 5: Installing Left Console Access Panel
Courtesy of FORD MOTOR CO.
Rotate the gearshift lever rearward until it bottoms out in 1st gear, then rotate it forward 3 detents to the (D) position.

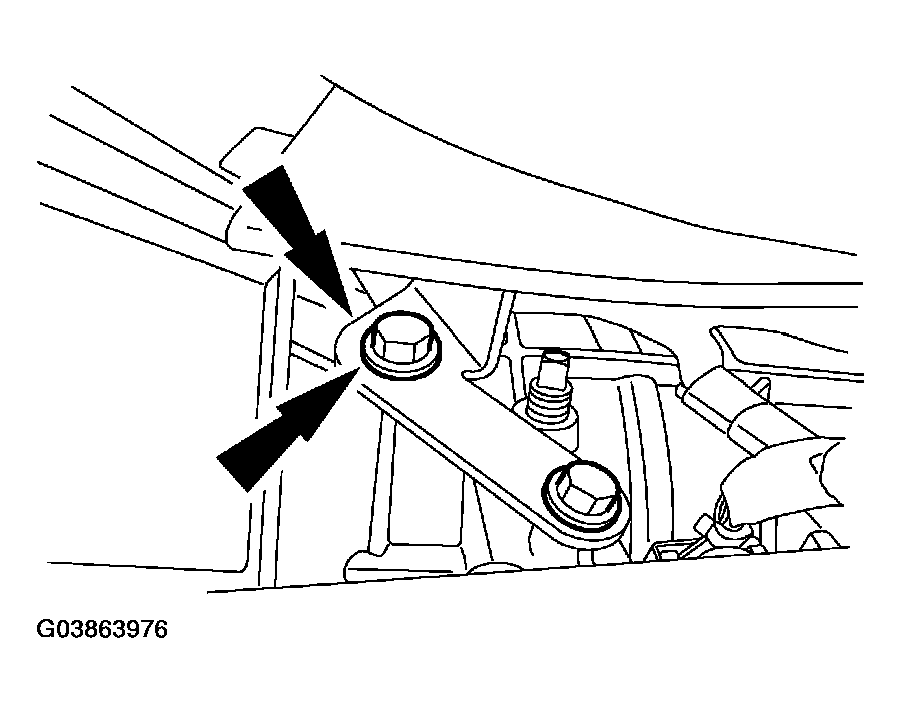

Position the shift cable bracket on the transmission and install the 2 bolts.
- Tighten to 40 Nm (30 lb-ft).

  Fig 6: Positioning Shift Cable Bracket On Transmission
  Courtesy of FORD MOTOR CO.

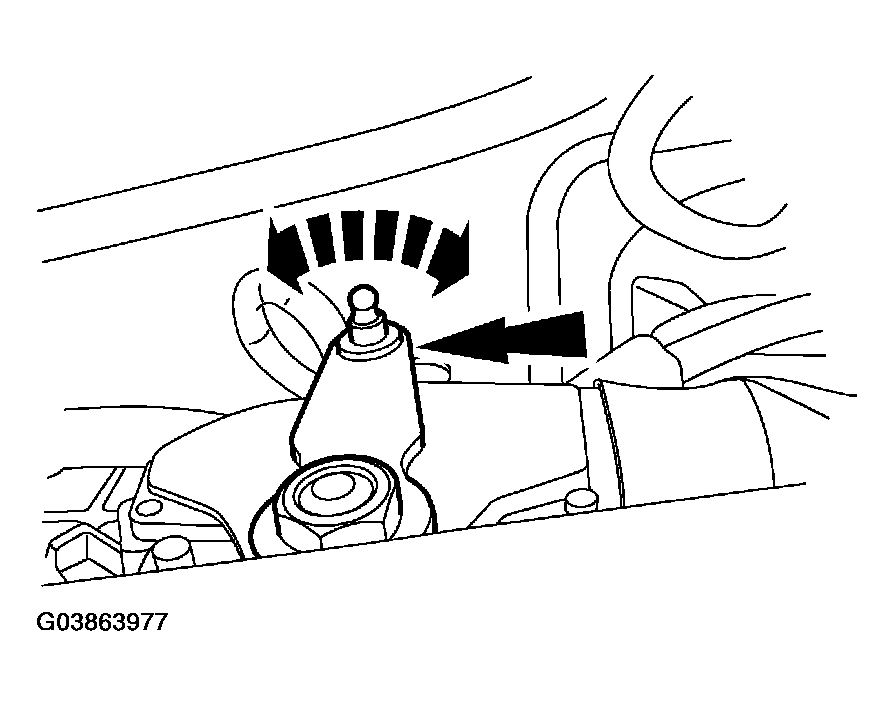

Rotate the manual lever forward until travel stops, then rotate the manual lever rearward 3 detents to the (D) position.

Fig 7: Rotating Manual Lever
Courtesy of FORD MOTOR CO.

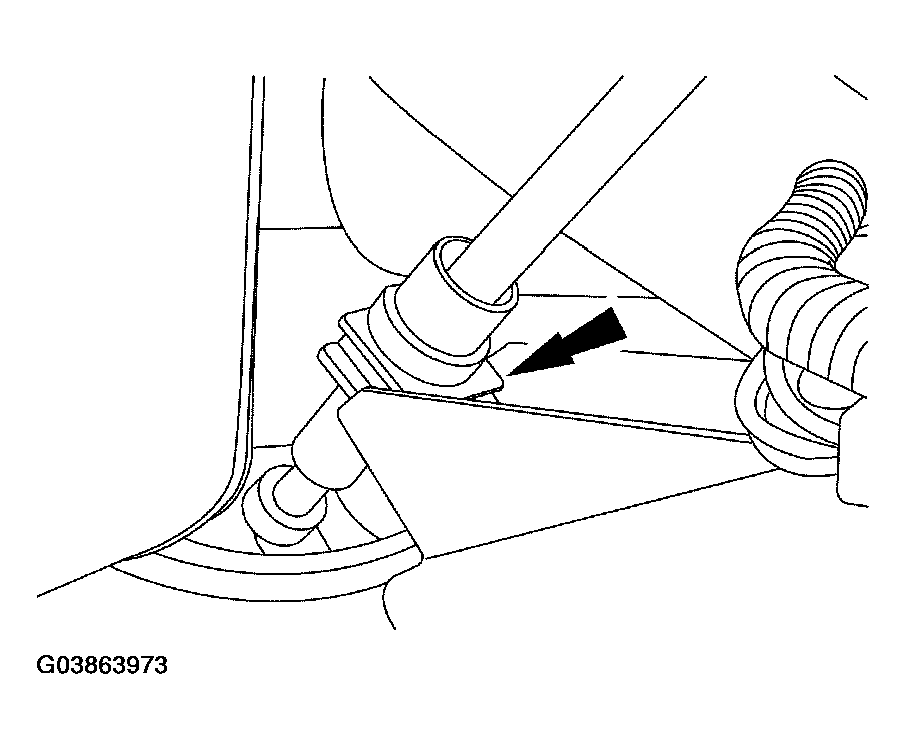

Connect the shift cable to the shift cable bracket.

Fig 8: Connecting Shift Cable To Shift Cable Bracket
Courtesy of FORD MOTOR CO.

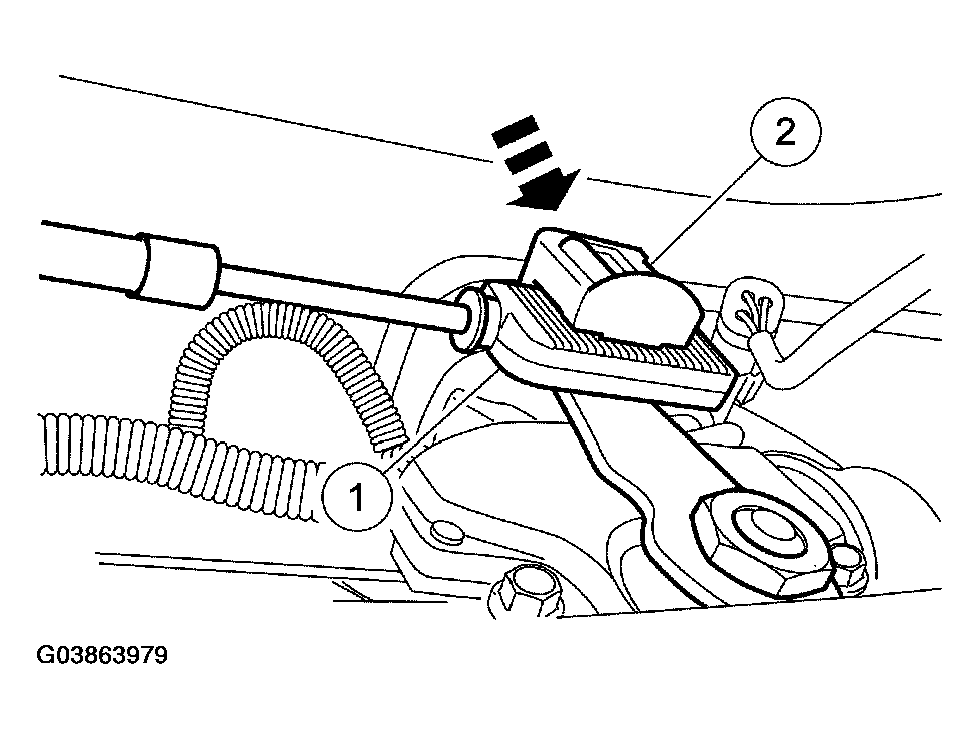

Connect the shift cable to the manual lever.
1. Position the shift cable on the manual lever.
2. Push the shift cable adjustment lock downward to the lock position.

  Fig 9: Connecting Shift Cable To Manual Lever
  Courtesy of FORD MOTOR CO.
Verify the engine will start in PARK and NEUTRAL and the reversing lamps illuminate in REVERSE. If not, readjust the shift cable. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .
