Selector Lever Cable: Removal

With the vehicle in PARK, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the left console access panel.

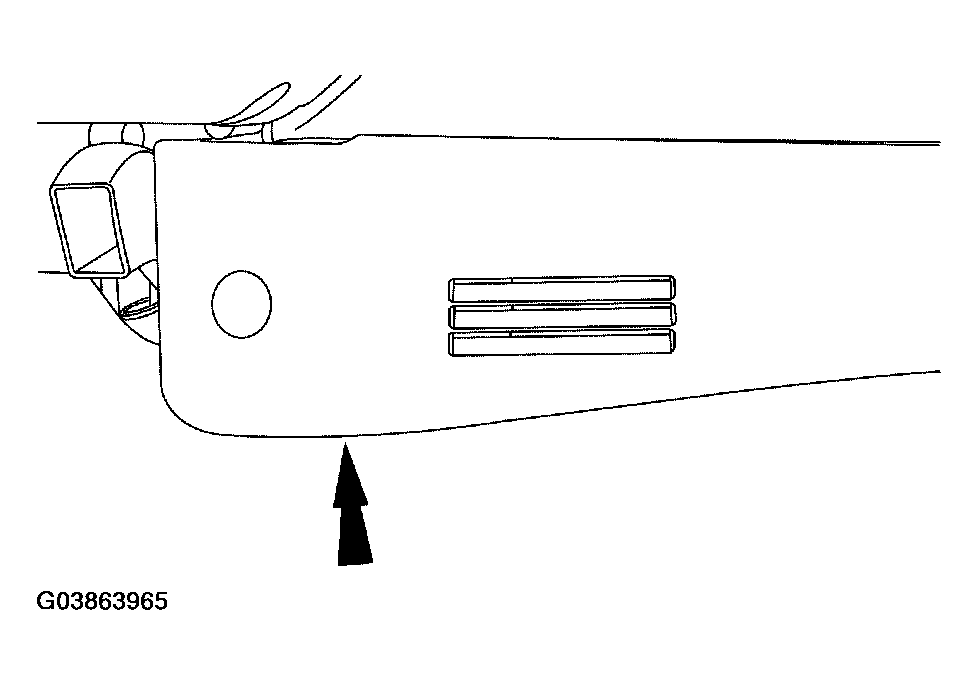

Fig 1: Removing Left Console Access Panel
Courtesy of FORD MOTOR CO.
Disconnect the shift cable from the transmission selector lever.

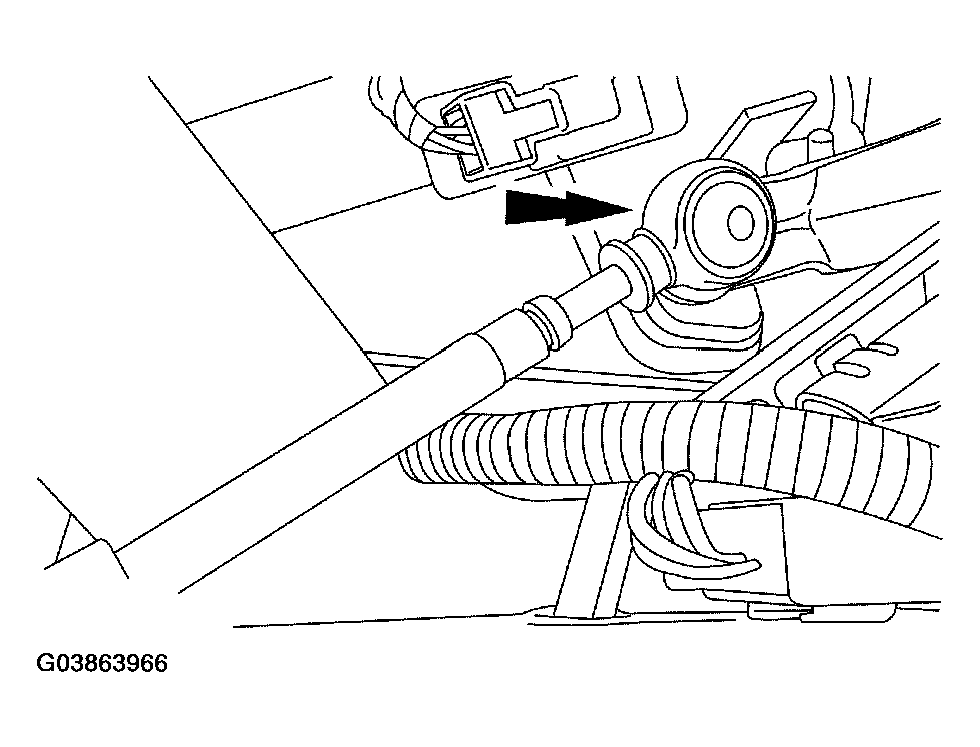

Fig 2: Disconnecting Shift Cable From Transmission Selector Lever
Courtesy of FORD MOTOR CO.
Disconnect the shift cable from the transmission selector lever bracket.

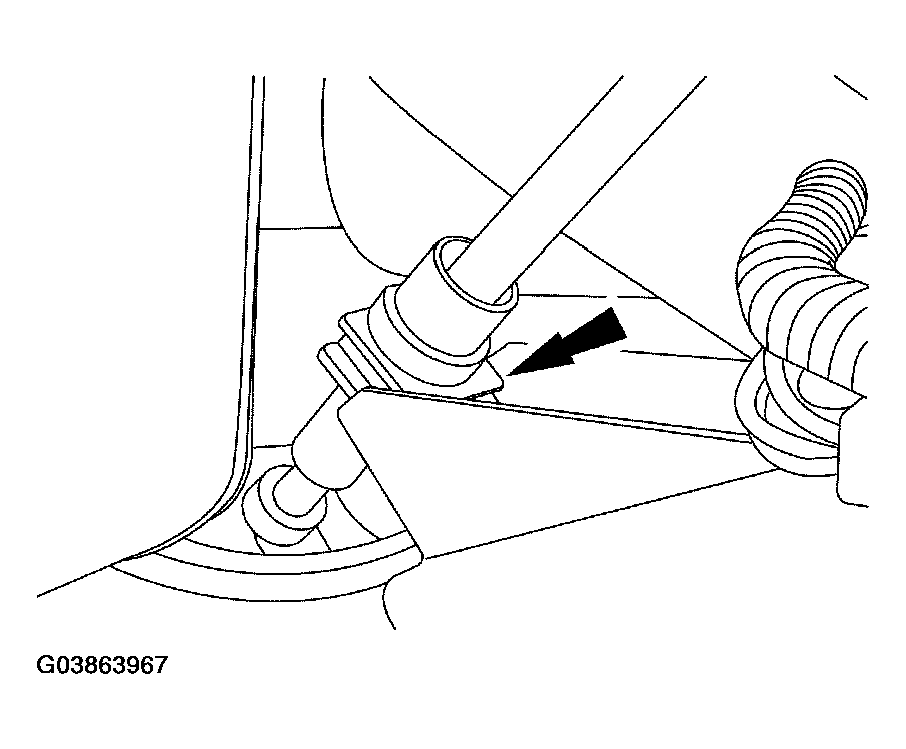

Fig 3: Disconnecting Shift Cable From Transmission Selector Lever Bracket
Courtesy of FORD MOTOR CO.
Push the rubber grommet through the bulkhead.

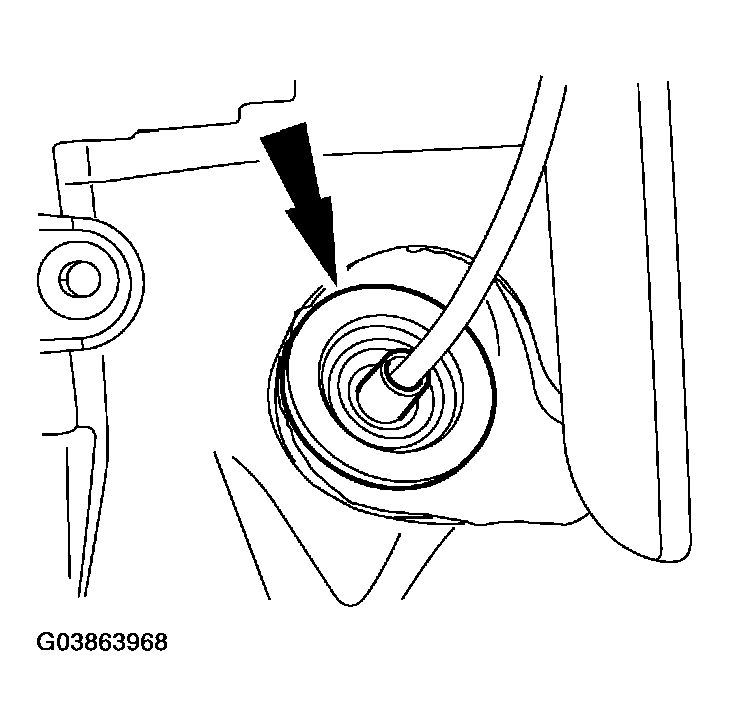

Fig 4: Pushing Rubber Grommet Through Bulkhead
Courtesy of FORD MOTOR CO.
Remove the shift cable from the vehicle.
1. Disconnect the shift cable from the manual control lever.
2. Disconnect the shift cable from the shift cable bracket.
3. Remove the shift cable from the vehicle.

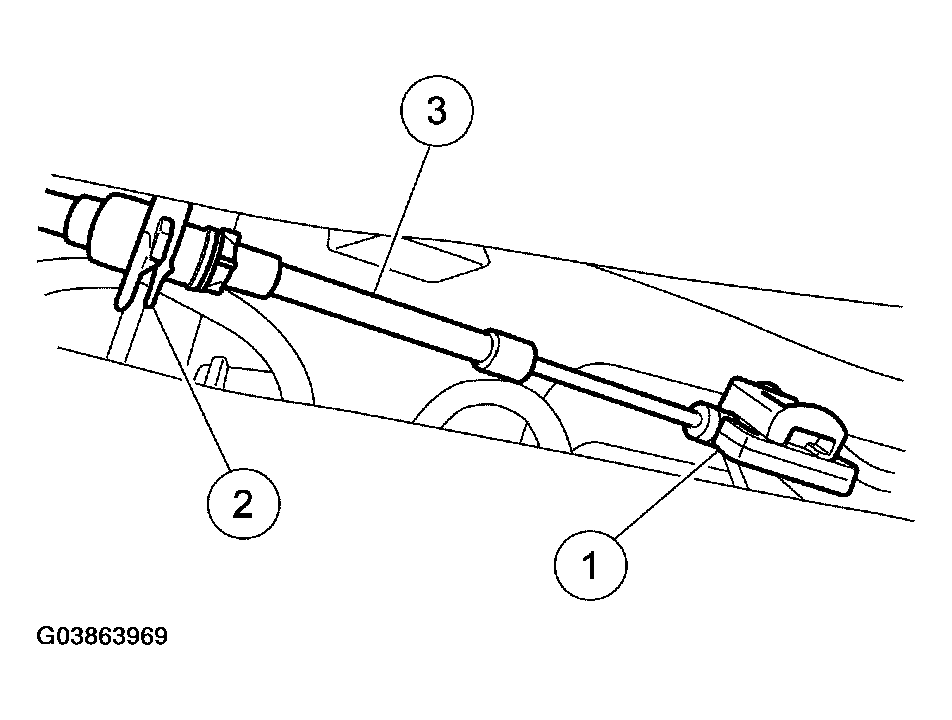

  Fig 5: Removing Shift Cable From Vehicle
  Courtesy of FORD MOTOR CO.
Remove the 2 bolts and the shift cable bracket.

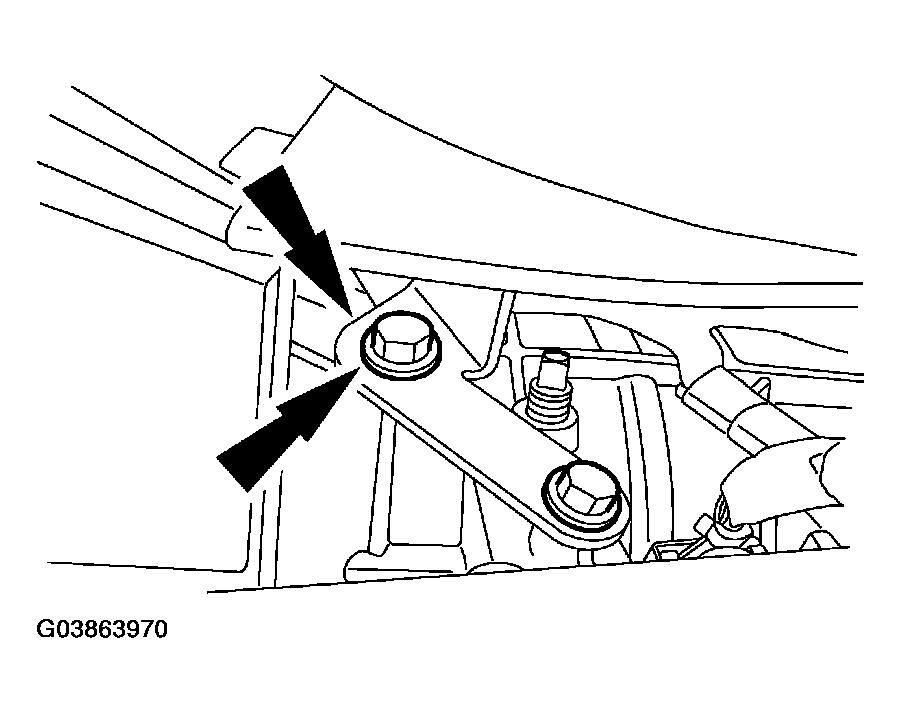

Fig 6: Removing 2 Bolts And Shift Cable Bracket
Courtesy of FORD MOTOR CO.
