Selector Lever Knob: Installation

Install the knob bezel into the bottom of the shift knob until the retainer snaps in place.

Fig 1: Installing Knob Bezel Into Bottom Of Shift Knob
Courtesy of FORD MOTOR CO.
Install the horseshoe clip in the shift knob.

Fig 2: Installing Horseshoe Clip In Shift Knob
Courtesy of FORD MOTOR CO.
Verify the horseshoe clip is fully seated.
Position the wires to the front of the shift knob for clearance and extend the release button.

Fig 3: Extending Release Button
Courtesy of FORD MOTOR CO.
With the spring inserted in the shift rod pocket, position the knob on the shift rod.

Fig 4: Positioning Knob On Shift Rod
Courtesy of FORD MOTOR CO.
Install the knob screw.

Fig 5: Installing Knob Screw
Courtesy of FORD MOTOR CO.
Position the wires through the knob shroud and through the front of the boot.

Fig 6: Positioning Wires Through Knob Shroud And Through Front Of Boot
Courtesy of FORD MOTOR CO.
Wrap the wires around the lever 2 times from left to right.

Fig 7: Wrapping Wires Around Lever
Courtesy of FORD MOTOR CO.

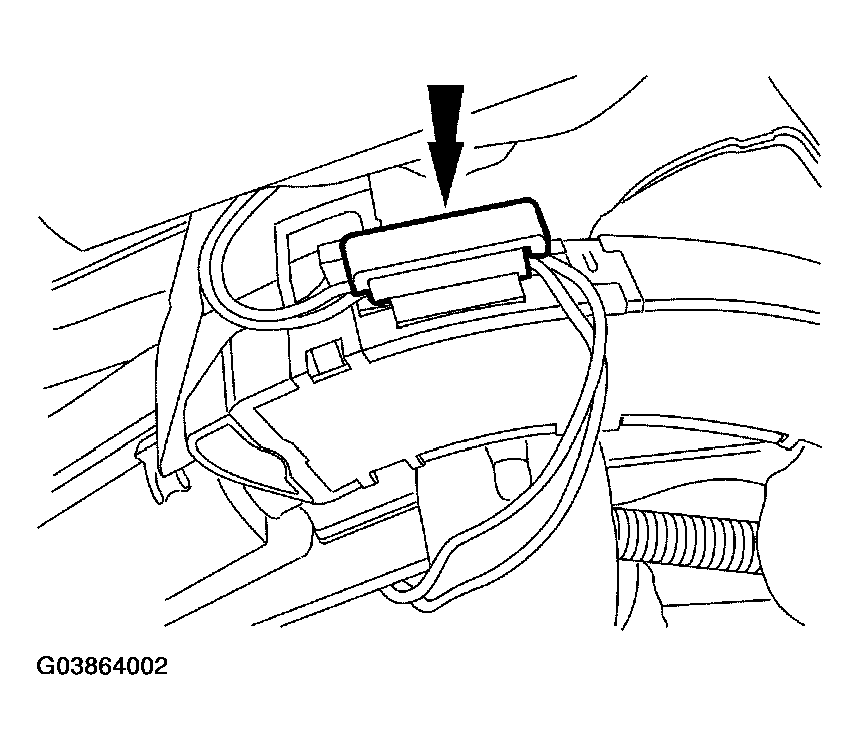

Connect the electrical connector and position it in the wiper switch pocket.

Fig 8: Connecting Electrical Connector And Position It In Wiper Switch Pocket
Courtesy of FORD MOTOR CO.

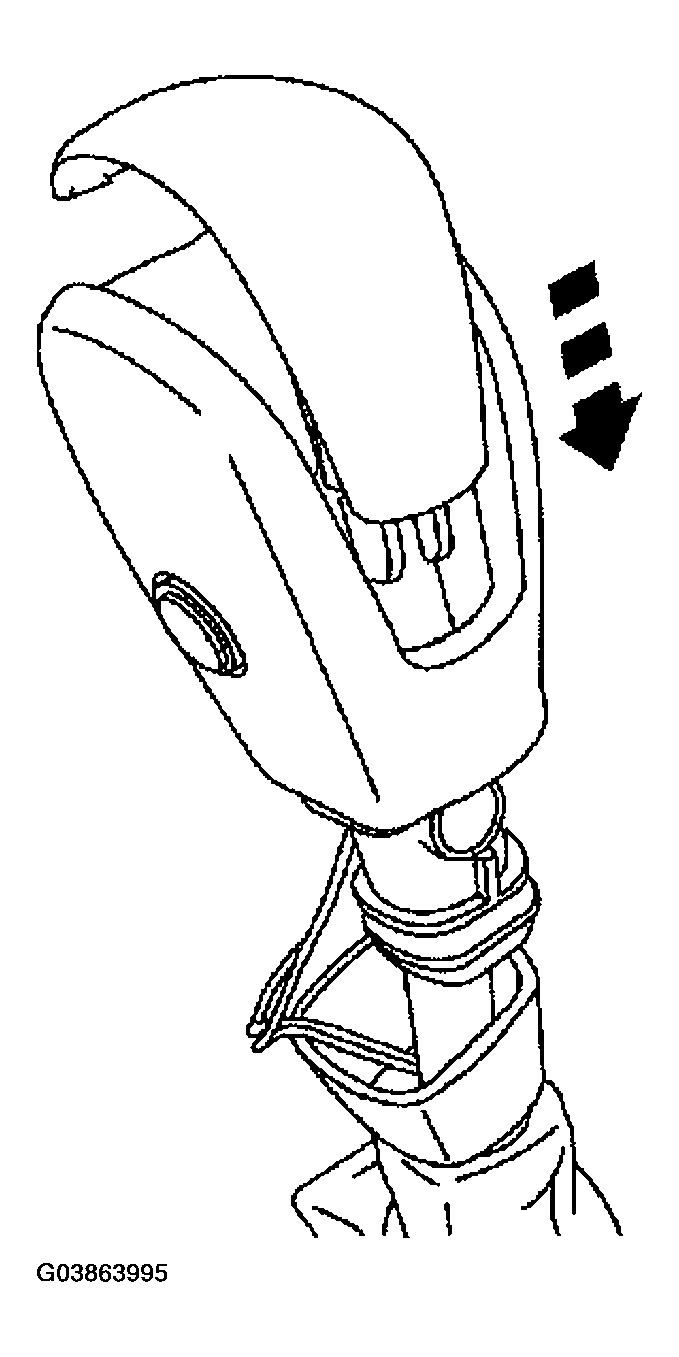

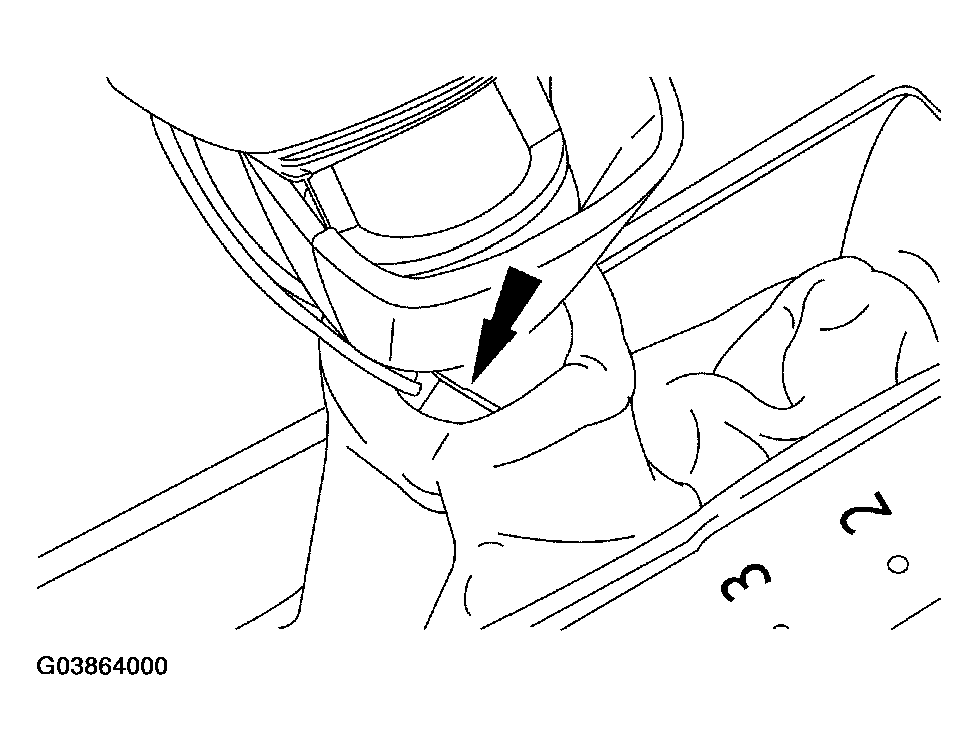

Pull up on the knob shroud and boot until the retainers are seated.

Fig 9: Pulling Up On Knob Shroud And Boot
Courtesy of FORD MOTOR CO.
Strike the top of the knob bezel with the palm of your hand to seat the bezel in the knob.

Fig 10: Seating Bezel In Knob
Courtesy of FORD MOTOR CO.
Install the transmission selector lever assembly. For additional information, refer to TRANSMISSION SELECTOR LEVER .
