Transmission Selector Lever

Remove the left and right console access panels.

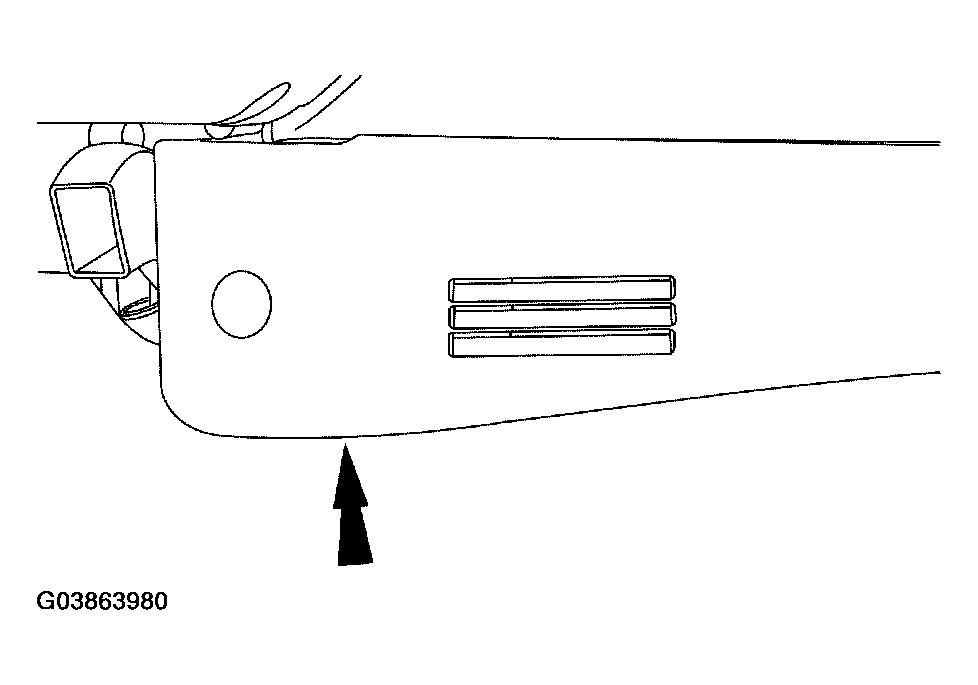

Fig 1: Removing Left And Right Console Access Panels
Courtesy of FORD MOTOR CO.
Remove the switch module from the console finish plate and disconnect the electrical connectors.

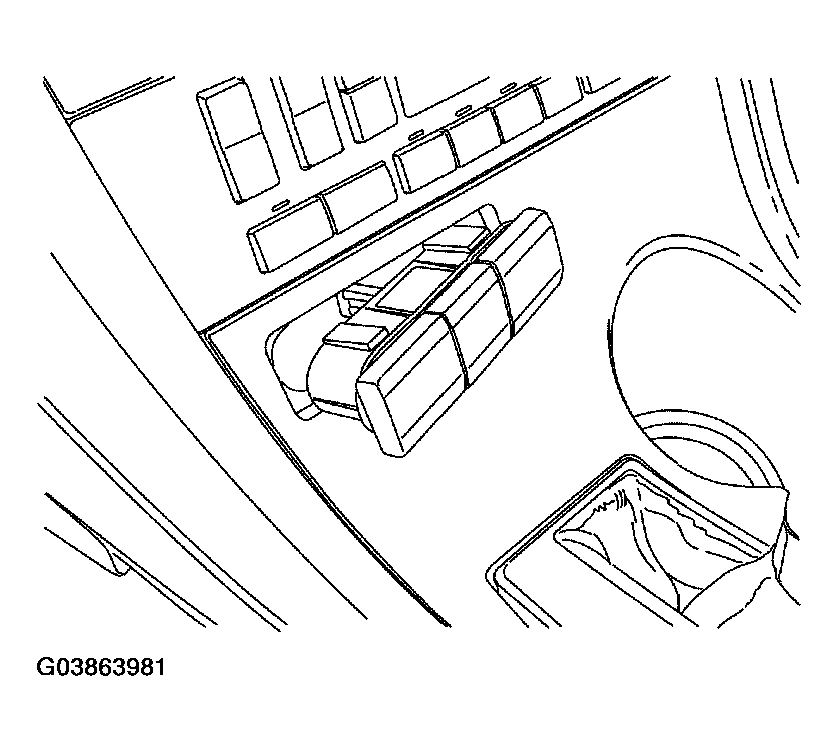

Fig 2: Removing Switch Module From Console Finish Plate
Courtesy of FORD MOTOR CO.
Lift the front of the bezel to separate the bezel from the console finish plate.

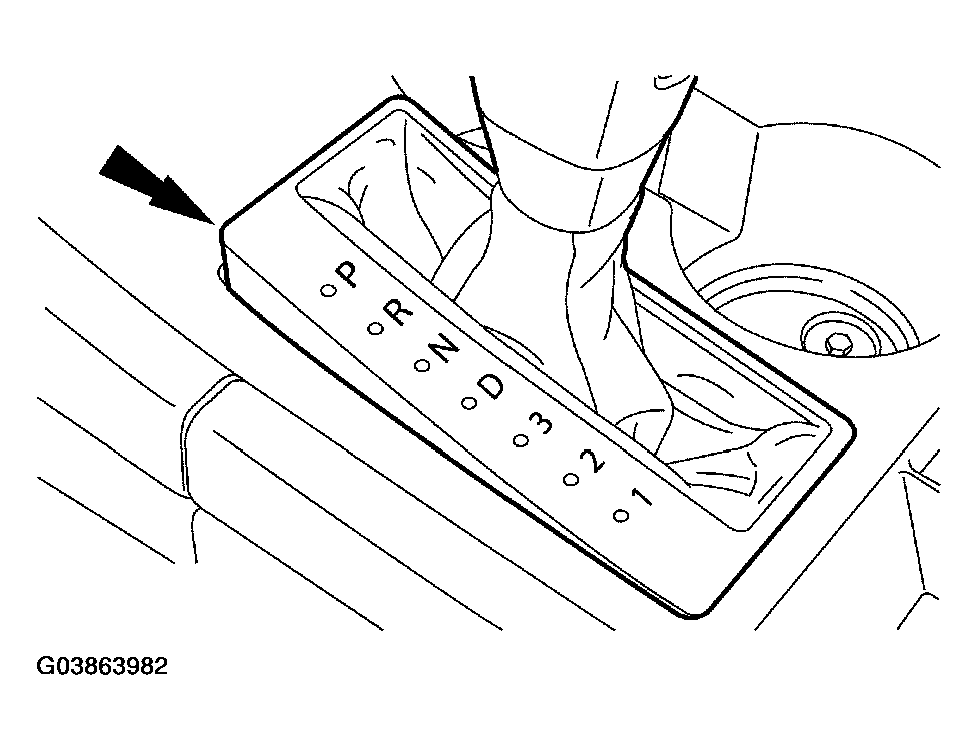

Fig 3: Lifting Front Of Bezel
Courtesy of FORD MOTOR CO.
Remove the screw and remove the console finish plate.
- Feed the shift bezel through the hole in the finish panel.

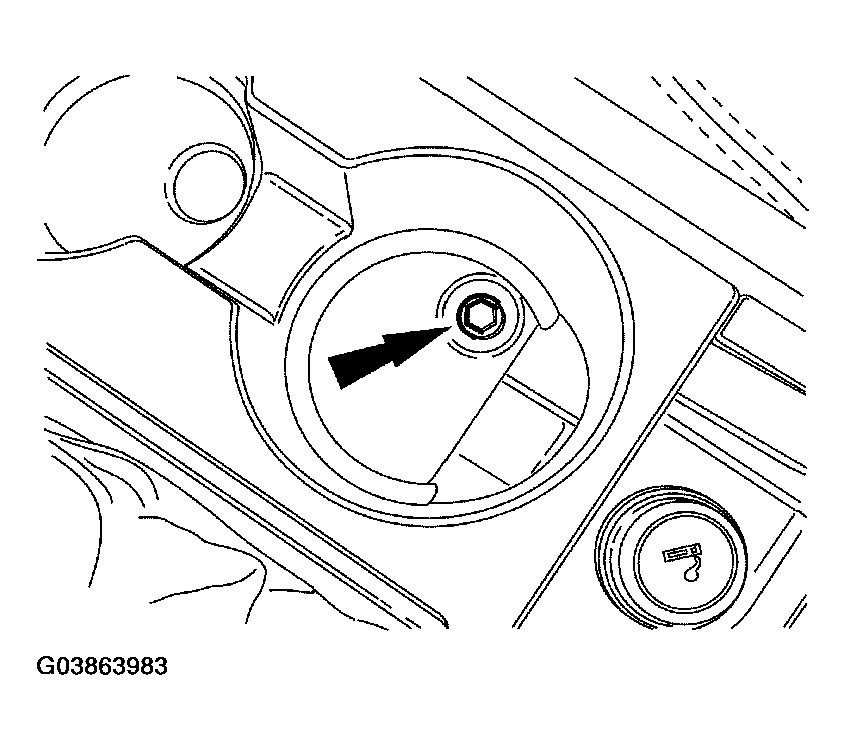

  Fig 4: Removing Screw
  Courtesy of FORD MOTOR CO.
Remove the rear half of the center console. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Disconnect the shift cable from the transmission selector lever arm.

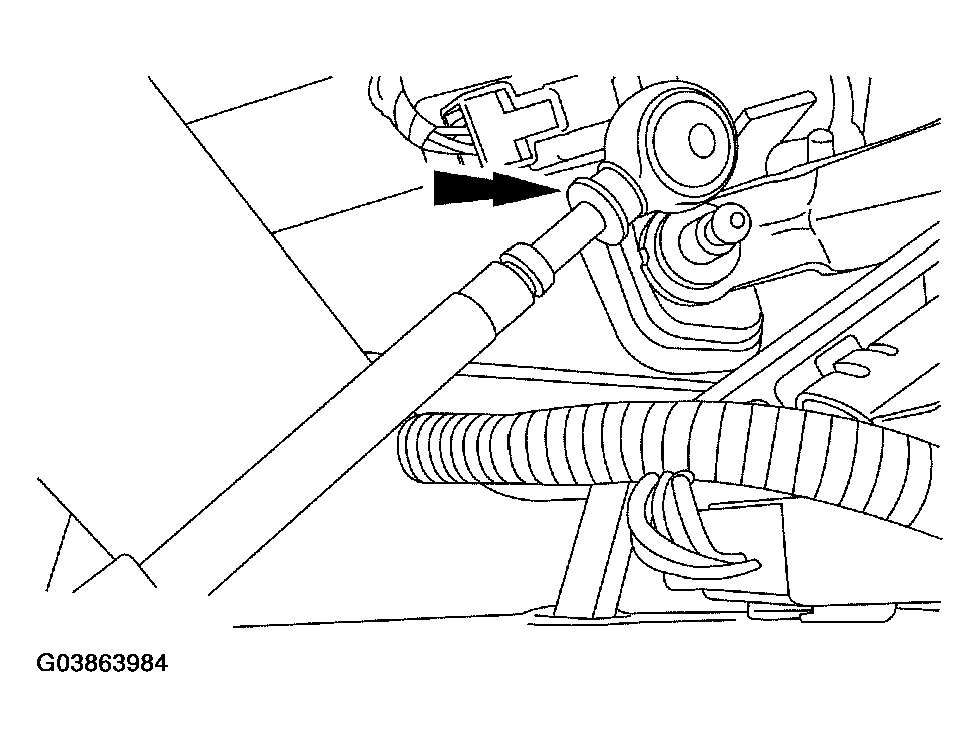

Fig 5: Disconnecting Shift Cable From Transmission Selector Lever Arm
Courtesy of FORD MOTOR CO.
Disconnect the shift cable from the transmission selector lever bracket.

Fig 6: Disconnecting Shift Cable From Transmission Selector Lever Bracket
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

Fig 7: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the 2 bolts retaining the left side of the shifter.
- To install, tighten to 7 Nm (62 lb-in).

  Fig 8: Removing 2 Bolts Retaining Left Side Of Shifter
  Courtesy of FORD MOTOR CO.
Remove the 2 bolts retaining the right side of the shifter.
- To install, tighten to 7 Nm (62 lb-in).

  Fig 9: Removing 2 Bolts Retaining Right Side Of Shifter
  Courtesy of FORD MOTOR CO.
Remove the transmission selector lever assembly from the vehicle.
To install, reverse the removal procedure.
