Special Tool(s)

SPECIAL TOOL(S) CHART

Tool Numbers Illustration Description
ST1833-A
G03863516Courtesy of FORD MOTOR CO.
 Installer, Torque Converter Fluid Seal 307-349 (T97T-77000-A)
ST1817-A

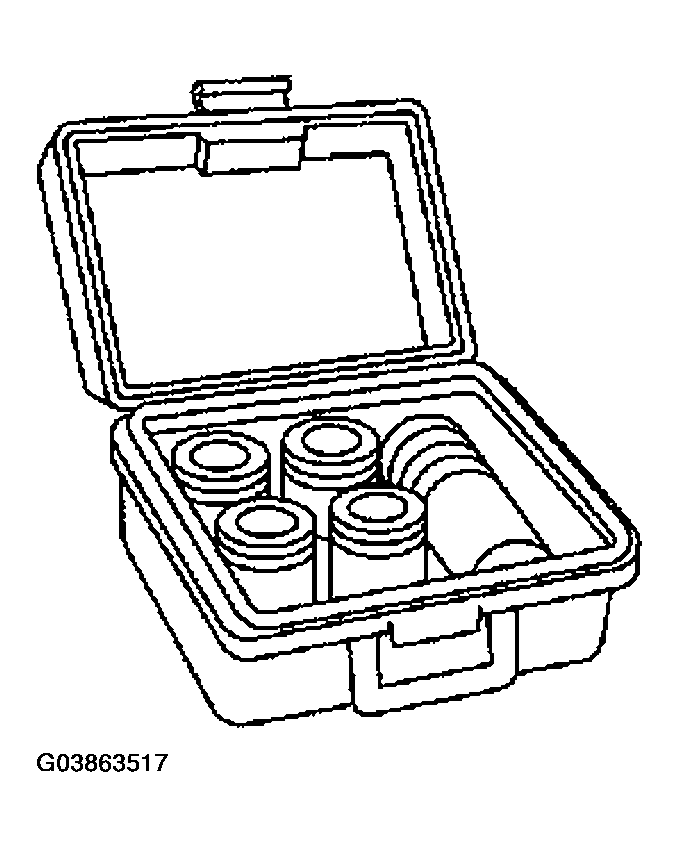

G03863517Courtesy of FORD MOTOR CO.
 Alignment Set, Fluid Pump 307-S039 (T74P-77103-X)
ST2532-A
G03863518Courtesy of FORD MOTOR CO.
 Aligner, Fluid Pump Handle 307-431
ST2533-A

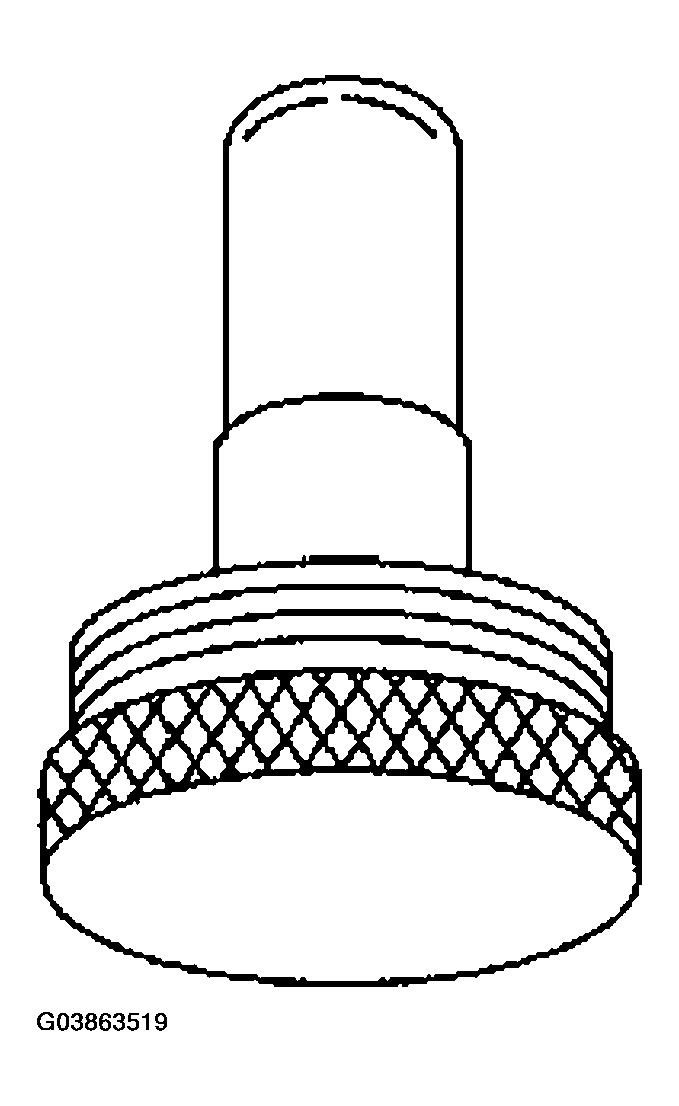

G03863519Courtesy of FORD MOTOR CO.
 Aligner, Fluid Pump Pilot 307-432
ST1826-A
G03863520Courtesy of FORD MOTOR CO.
 Sizer, Piston Seal 307-338 (T95L-70010-G)
ST2419-A
G03863521Courtesy of FORD MOTOR CO.
 Alignment Pins, Transmission Pump 307-398
ST2684-A
G03863522Courtesy of FORD MOTOR CO.
 Transmission Fluid Pump Seal Aligner 307-451/1
ST2685-A
G03863523Courtesy of FORD MOTOR CO.
 Transmission Fluid Pump Seal Sizer 307-451/2
ST2686-A
G03863524Courtesy of FORD MOTOR CO.
 Transmission Fluid Pump Seal Installer 307-451/3
