Forward Clutch Assembly Component Locations

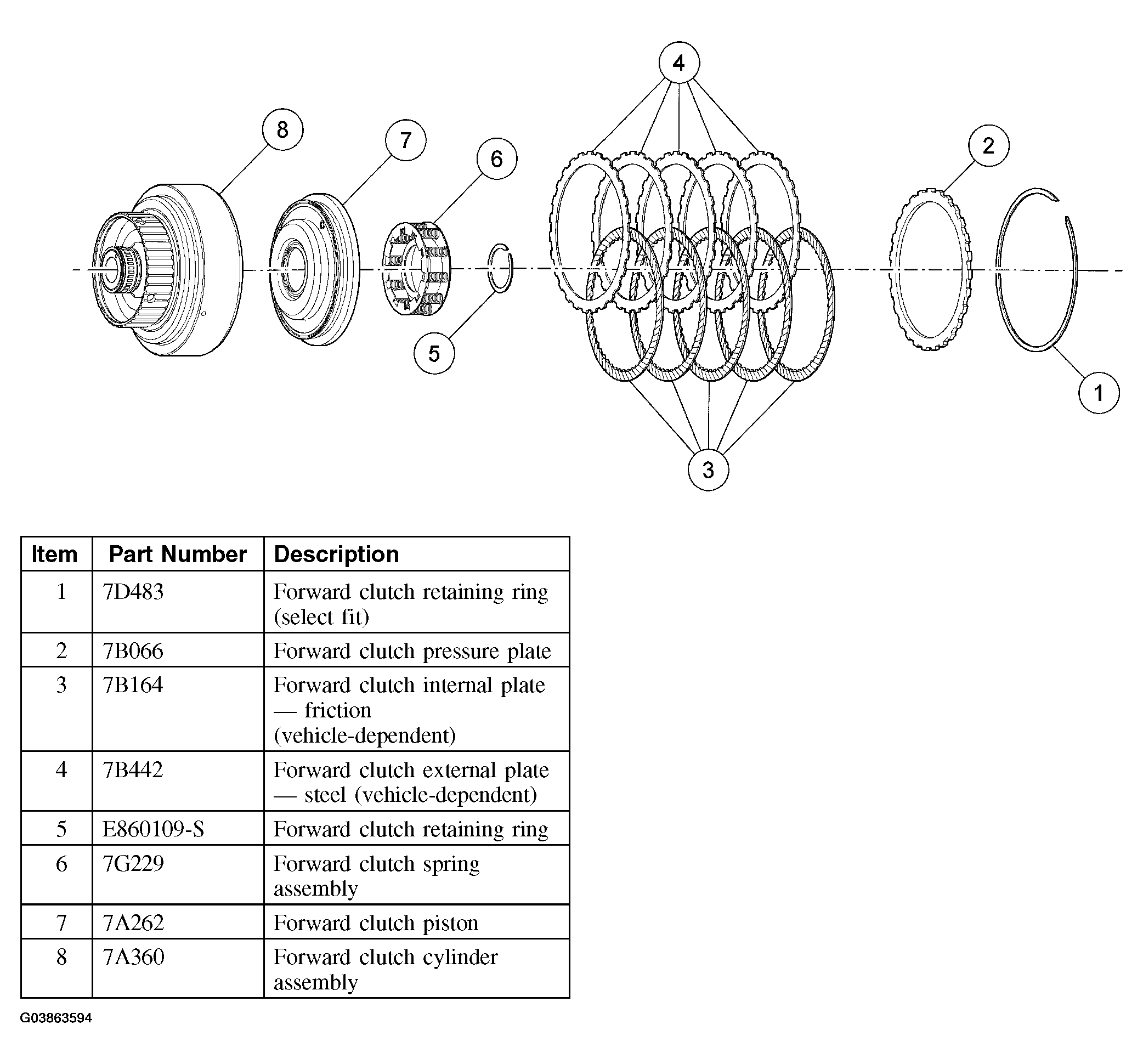

Fig 1: Identifying Forward Clutch Assembly
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
