Main Control Valve Body: Disassembly

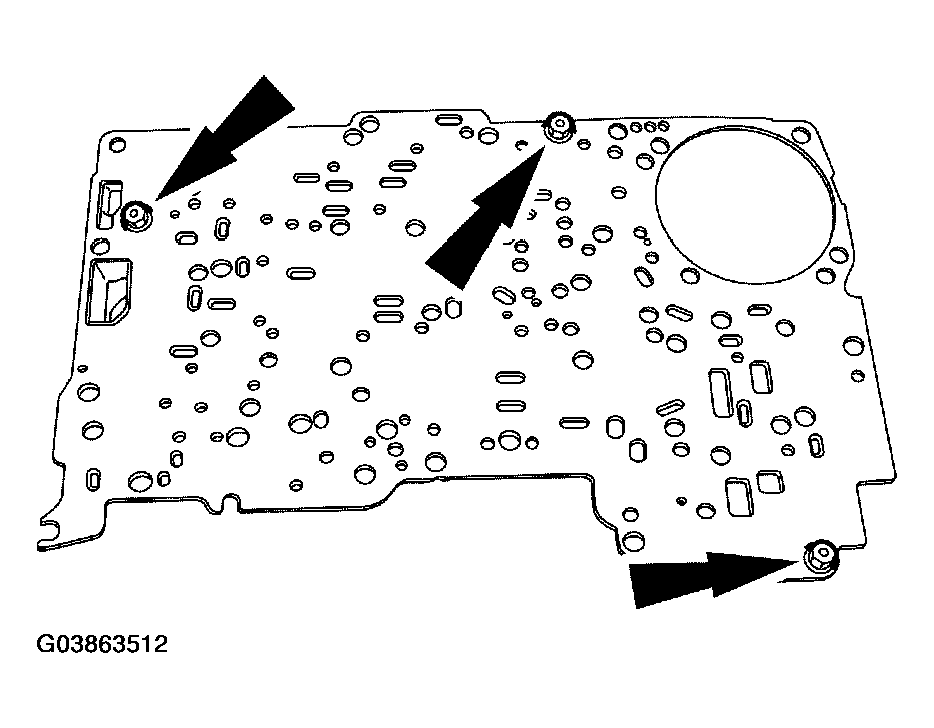

NOTE: The valve body separator plate has a bonded gasket. Do not reuse. Discard the plate.

Fig 1: Discarding Valve Body Separator Plate

G03863512

Courtesy of FORD MOTOR CO.

Remove and discard the valve body separator plate.

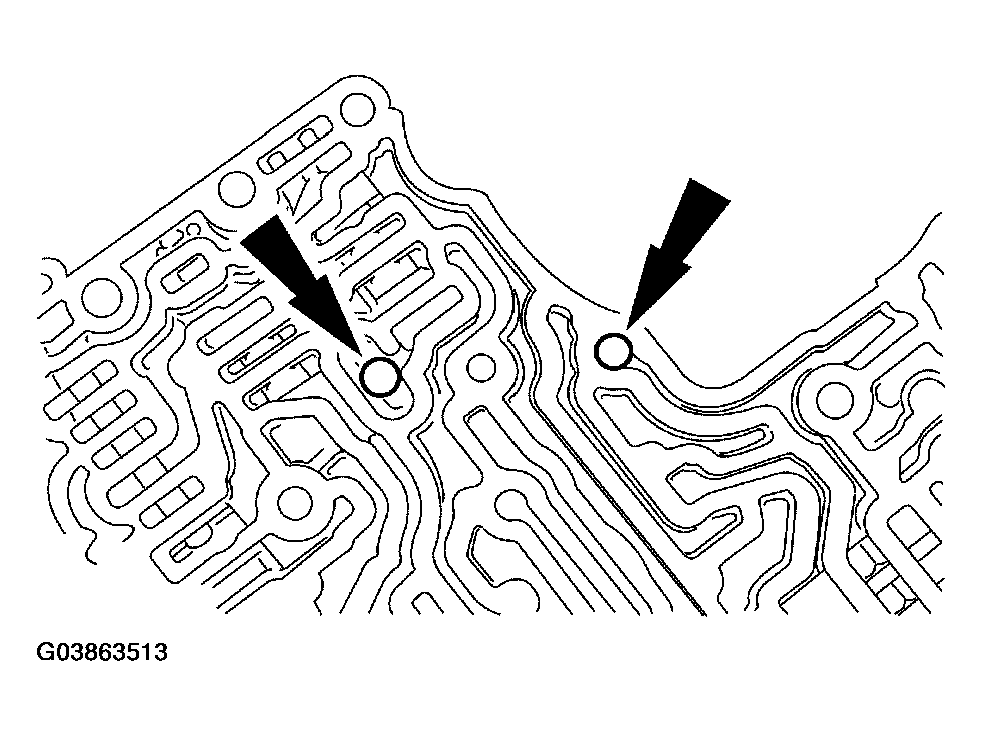

Remove the check balls.

Fig 2: Removing Check Balls
Courtesy of FORD MOTOR CO.

NOTE: Refer to the disassembled view.

Disassemble the main control valve body only if cleaning is required.
