Special Tool(s)

SPECIAL TOOL(S) CHART

Tool Number Illustration Description

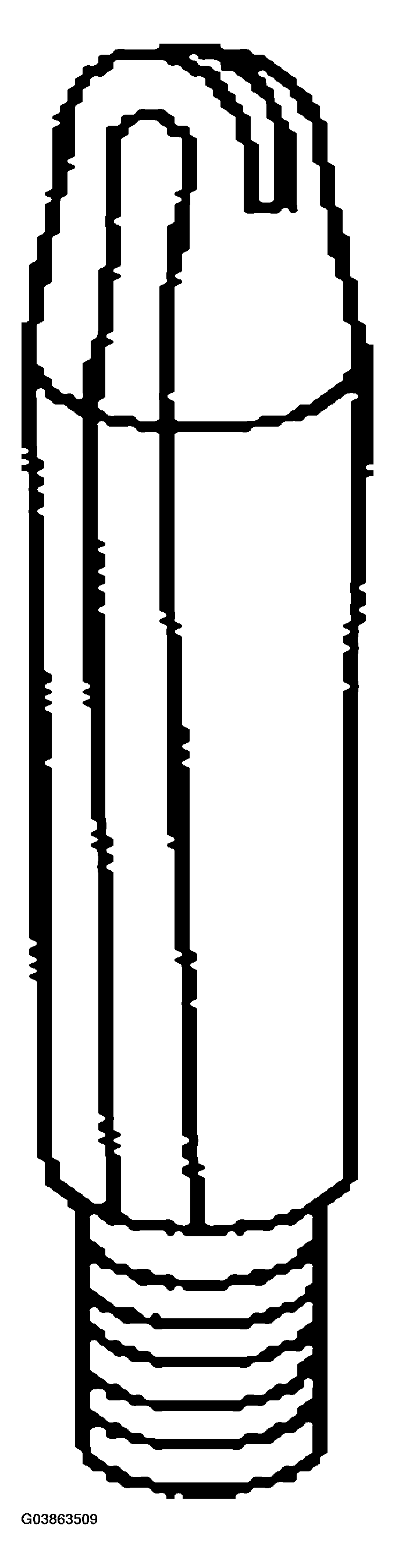

ST1639-A
G03863509Courtesy of FORD MOTOR CO.
 Aligner, Valve Body (2 required) 307-334 (T95L-70010-C)

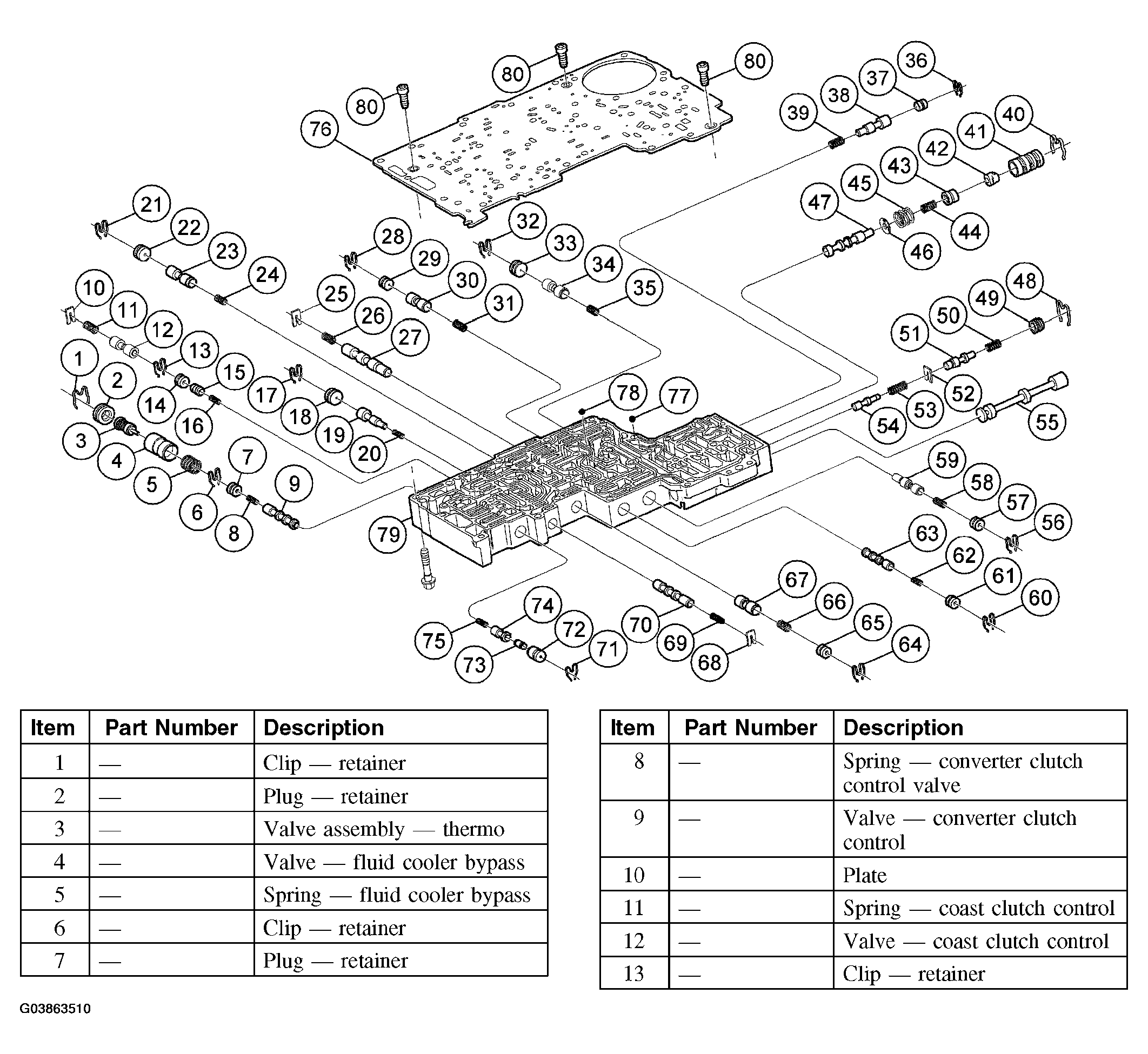

Fig 1: Exploded View Of Main Control Valve Body (1 Of 2)
G03863510Courtesy of FORD MOTOR CO.

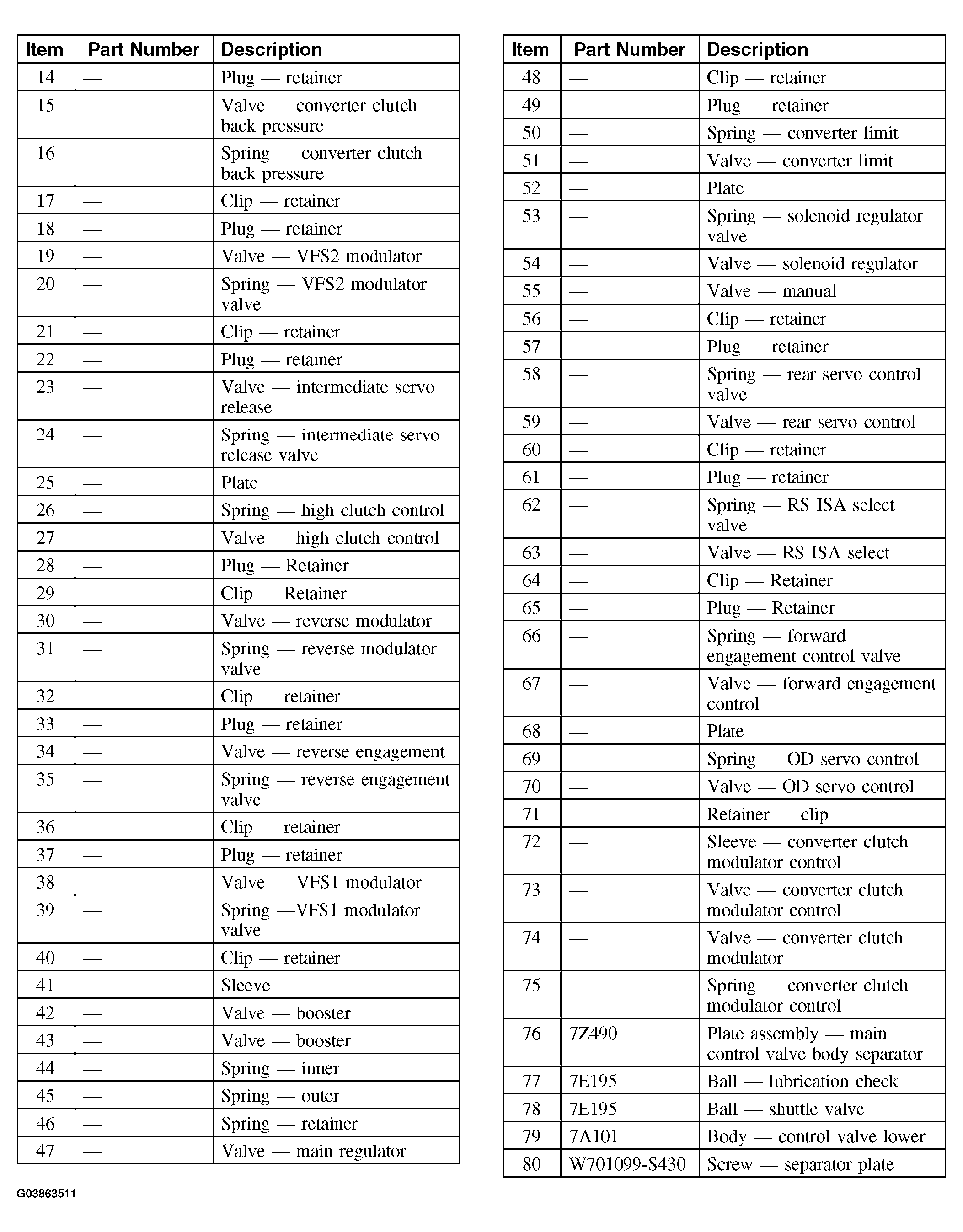

Fig 2: Exploded View Of Main Control Valve Body (2 Of 2)
G03863511Courtesy of FORD MOTOR CO.
