Overdrive Planetary Gears: Disassembly

NOTE: Individual parts of the planetary carriers are not serviceable.

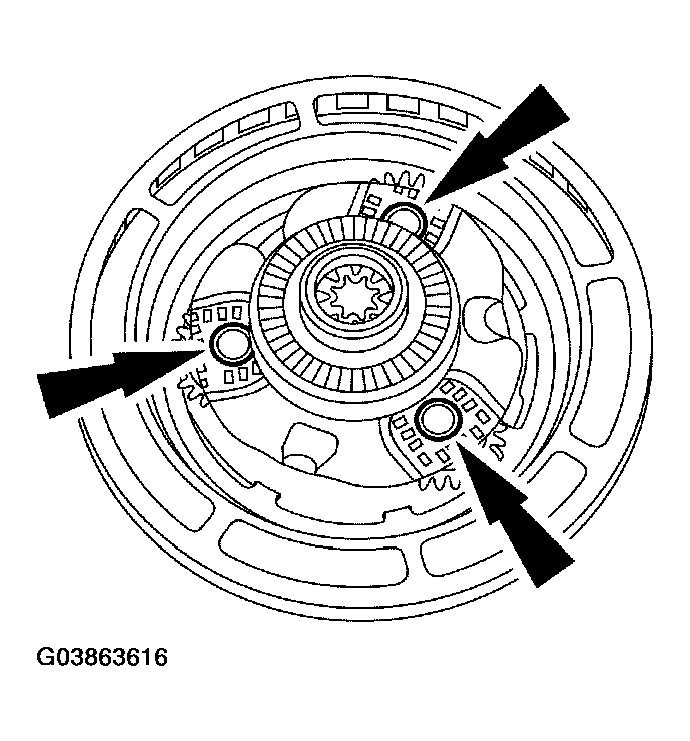

Fig 1: Checking Pins And Shafts In Planetary Assemblies

Courtesy of FORD MOTOR CO.

Before installing a planetary assembly, the shaft retaining pins should be checked for adequate staking. Check the pins and shafts in the planetary assemblies for loose fit and/or complete disengagement. Install a new planetary assembly if necessary.
Inspect the pinion gears for damaged or excessively worn teeth and for free rotation.

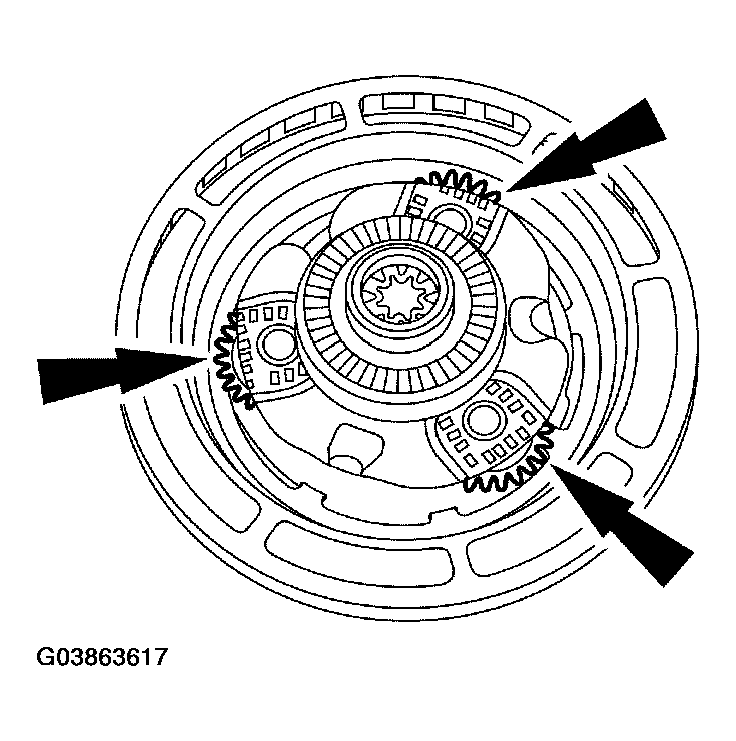

Fig 2: Inspecting Pinion Gears
Courtesy of FORD MOTOR CO.

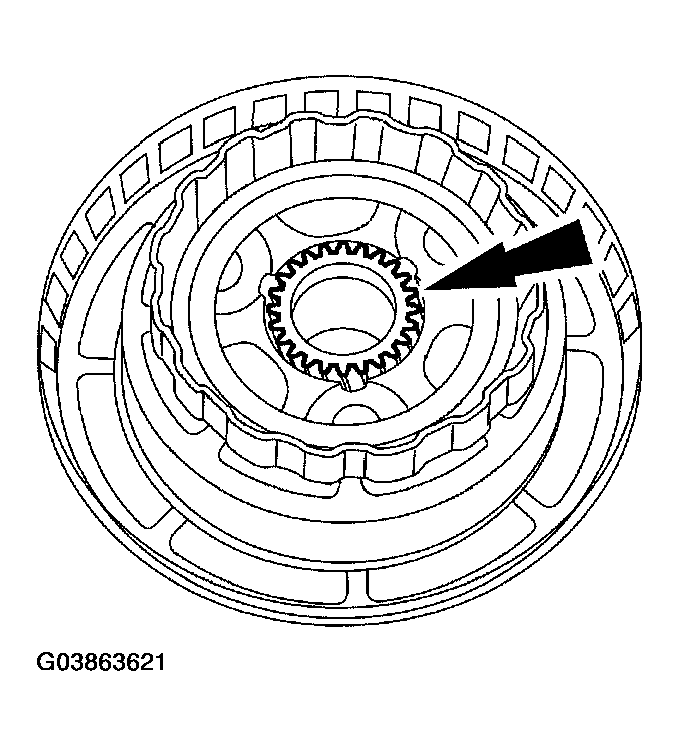

Inspect the overdrive one-way clutch inner race and the inner and outer races for scored or damaged surface areas where the rollers contact the races.

Fig 3: Inspecting Overdrive One-Way Clutch Inner Race
Courtesy of FORD MOTOR CO.

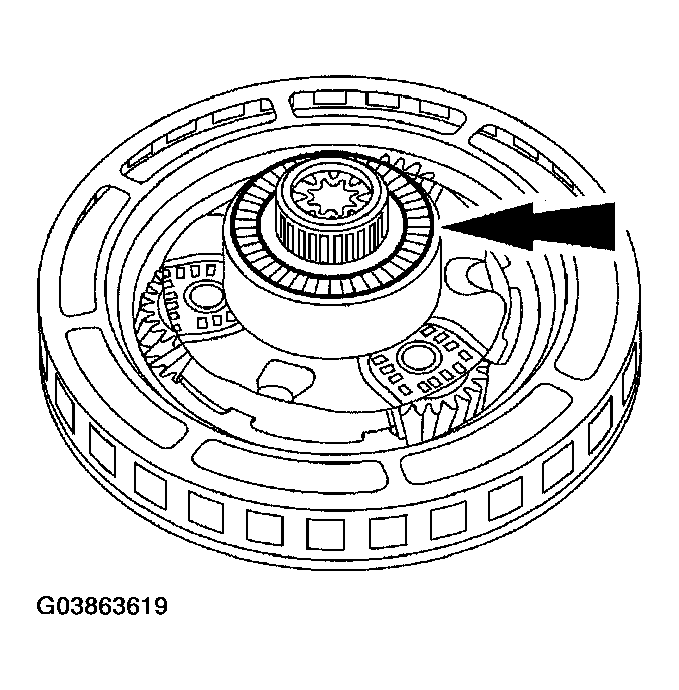

Remove and inspect the No. 2 overdrive planetary thrust bearing on the nose of the overdrive planetary gear carrier assembly.

Fig 4: Inspecting No. 2 Overdrive Planetary Thrust Bearing
Courtesy of FORD MOTOR CO.

NOTE: Inspect the sun gear for damaged or worn teeth.

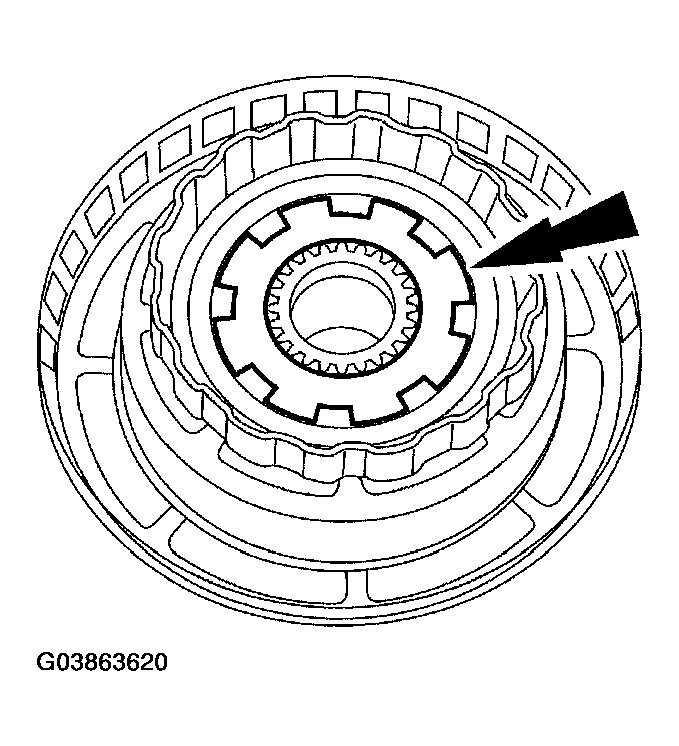

Fig 5: Removing Coast Clutch-To-Overdrive Carrier Adapter

Courtesy of FORD MOTOR CO.

Remove the coast clutch-to-overdrive carrier adapter.
Remove and inspect the overdrive sun gear.

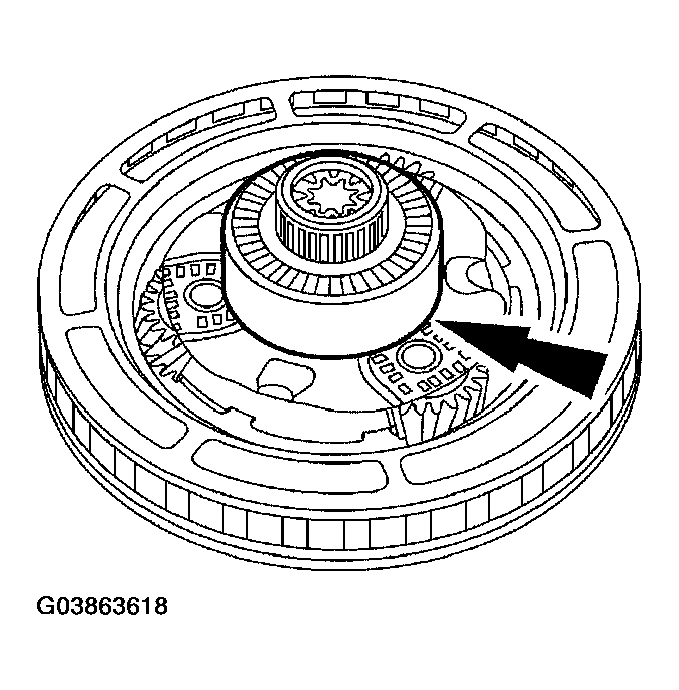

Fig 6: Inspecting Overdrive Sun Gear
Courtesy of FORD MOTOR CO.

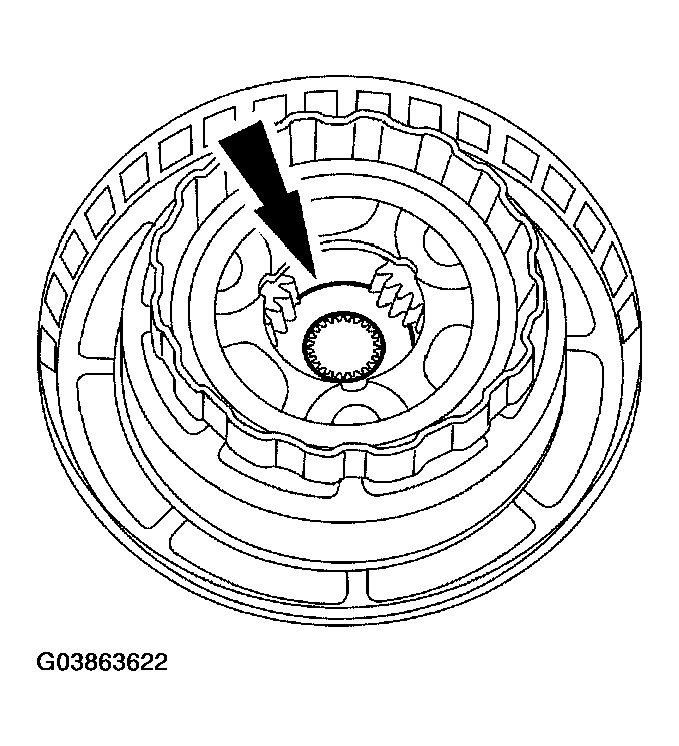

CAUTION: Do not attempt to remove the No. 12 bearing from behind the pinion gears.

Fig 7: Inspecting No. 12 Bearing For Damage
