Digital Transmission Range (TR) Sensor: Removal

Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
Move the rubber boot back to gain access to the connector.

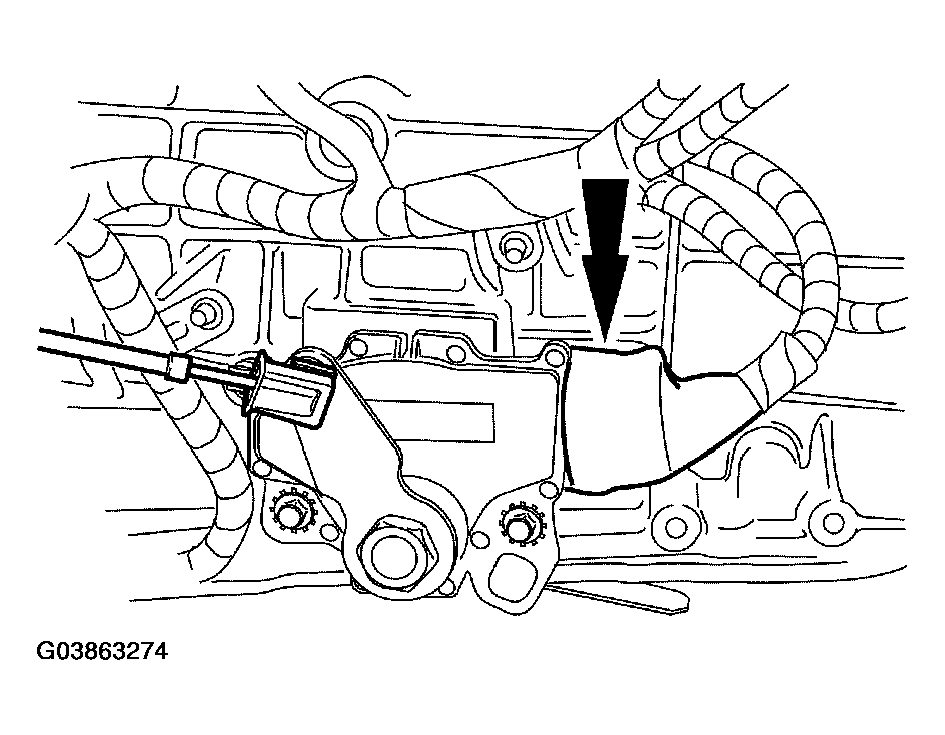

Fig 1: Moving Rubber Boot Back To Gain Access To Connector
Courtesy of FORD MOTOR CO.
Disconnect the digital TR sensor connector.

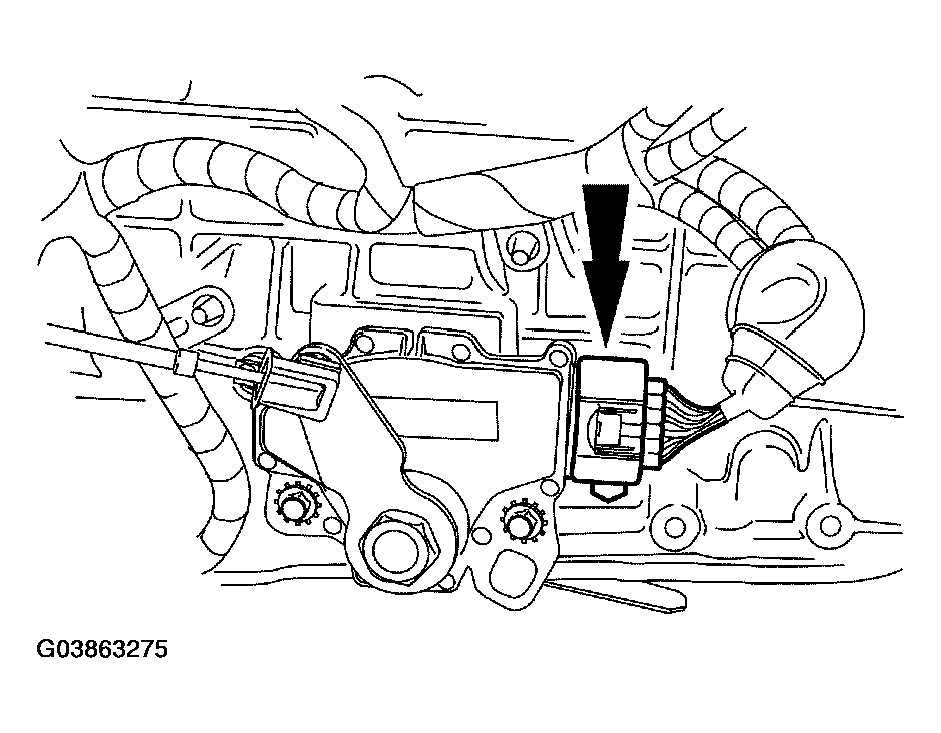

Fig 2: Disconnecting Digital TR Sensor Connector
Courtesy of FORD MOTOR CO.
Remove the shift cable from the manual control lever.

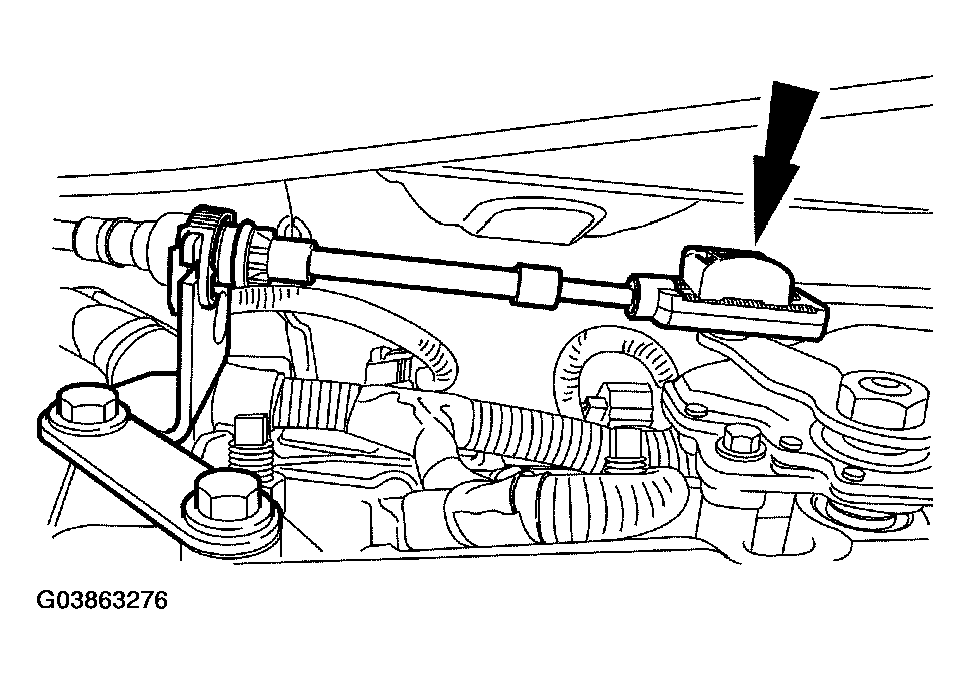

Fig 3: Removing Shift Cable From Manual Control Lever
Courtesy of FORD MOTOR CO.
Remove the outer manual control lever.

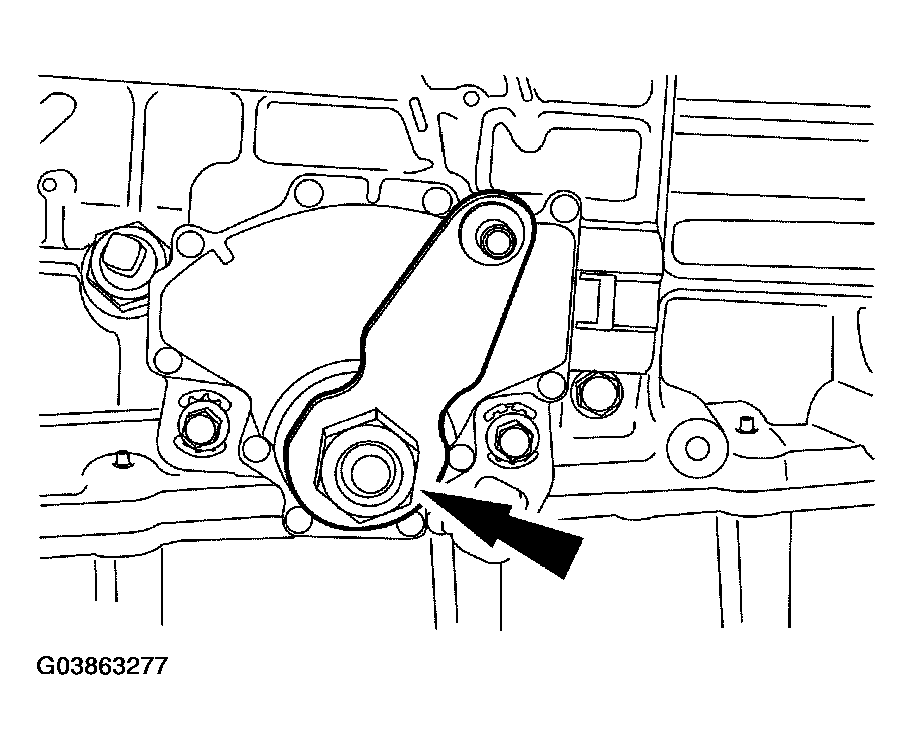

Fig 4: Removing Outer Manual Control Lever
Courtesy of FORD MOTOR CO.
Remove the digital TR sensor.

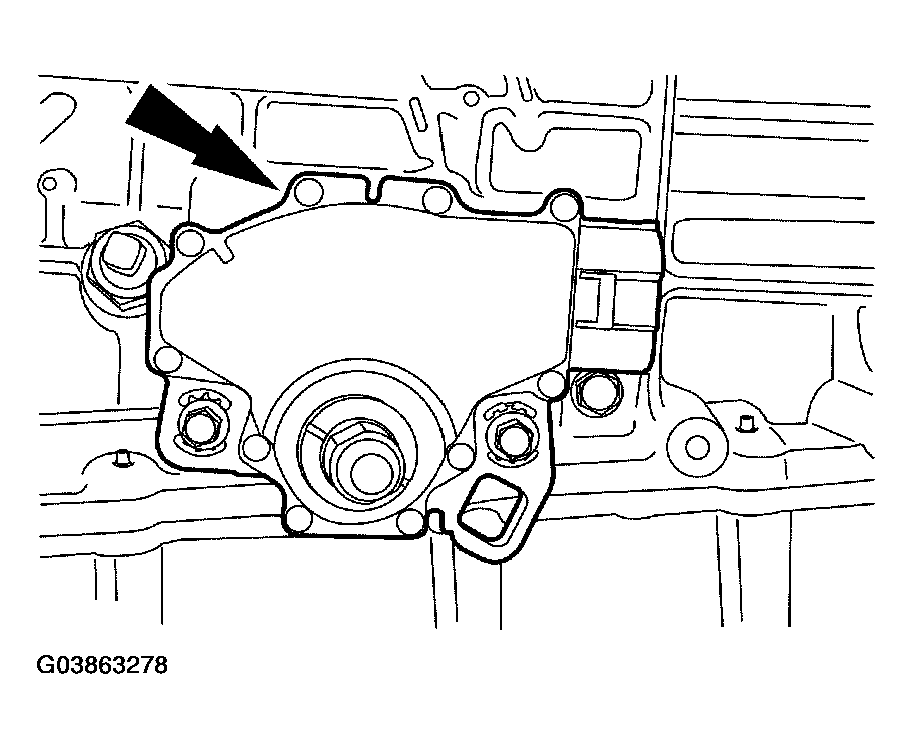

Fig 5: Removing Digital TR Sensor
Courtesy of FORD MOTOR CO.
