Intermediate Shaft Speed Sensor: Installation

All vehicles

Inspect the O-ring seal for damage. Install a new seal if damaged. Lubricate the O-ring seal with petroleum jelly to prevent damage to the O-ring seal.
1. Install the ISS sensor into the transmission.
2. Tighten the ISS sensor screw.
  - Tighten to 10 Nm (89 lb-in).

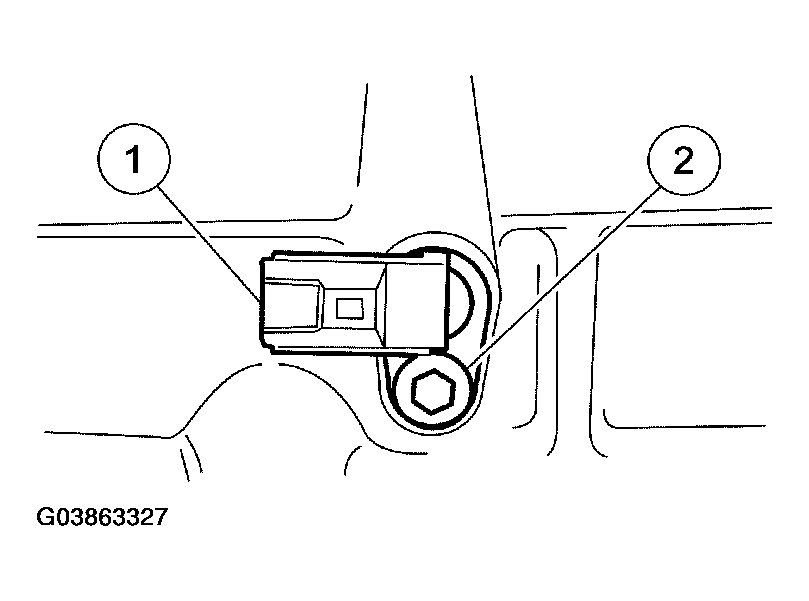

Fig 1: Installing ISS Sensor Into Transmission
Courtesy of FORD MOTOR CO.
Connect the ISS sensor electrical connector.

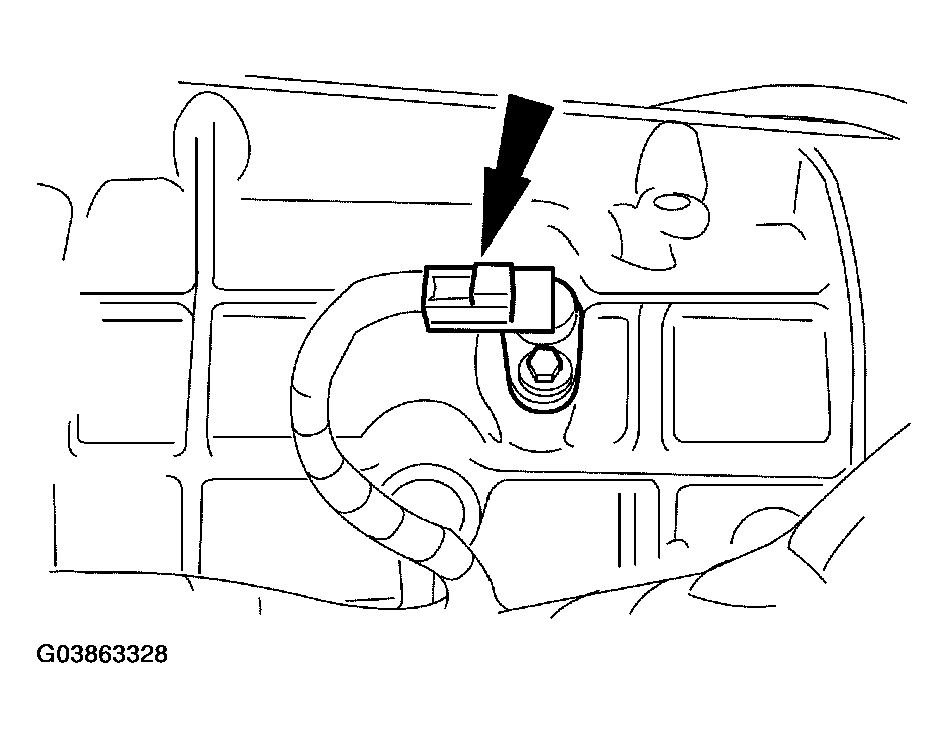

Fig 2: Connecting ISS Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the shift cable and bracket.
- Tighten to 40 Nm (30 lb-ft).

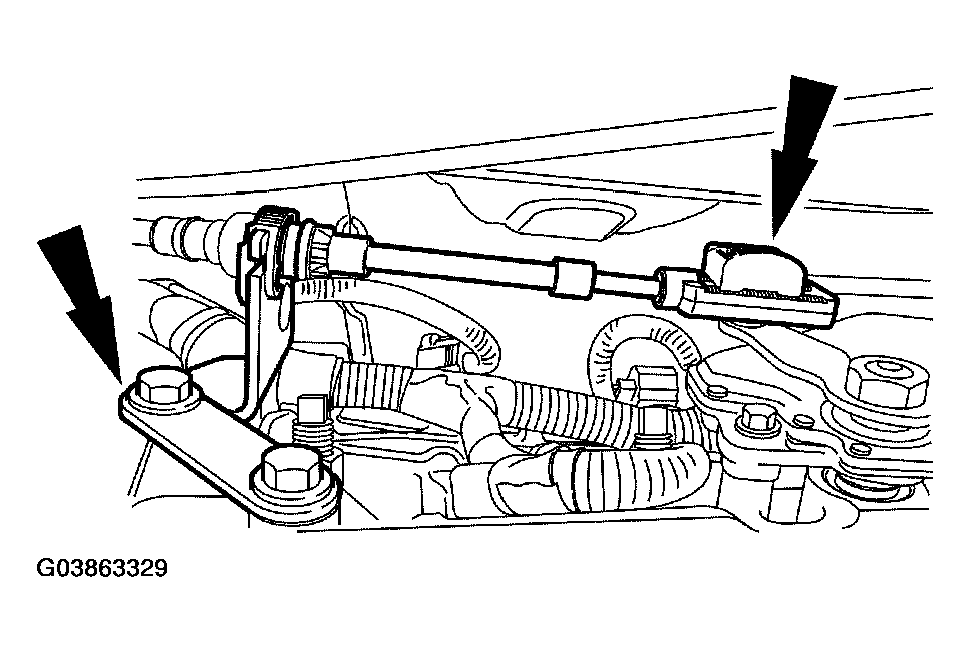

Fig 3: Installing Shift Cable And Bracket
Courtesy of FORD MOTOR CO.

4x4 vehicles

Install the front driveshaft in the vehicle.

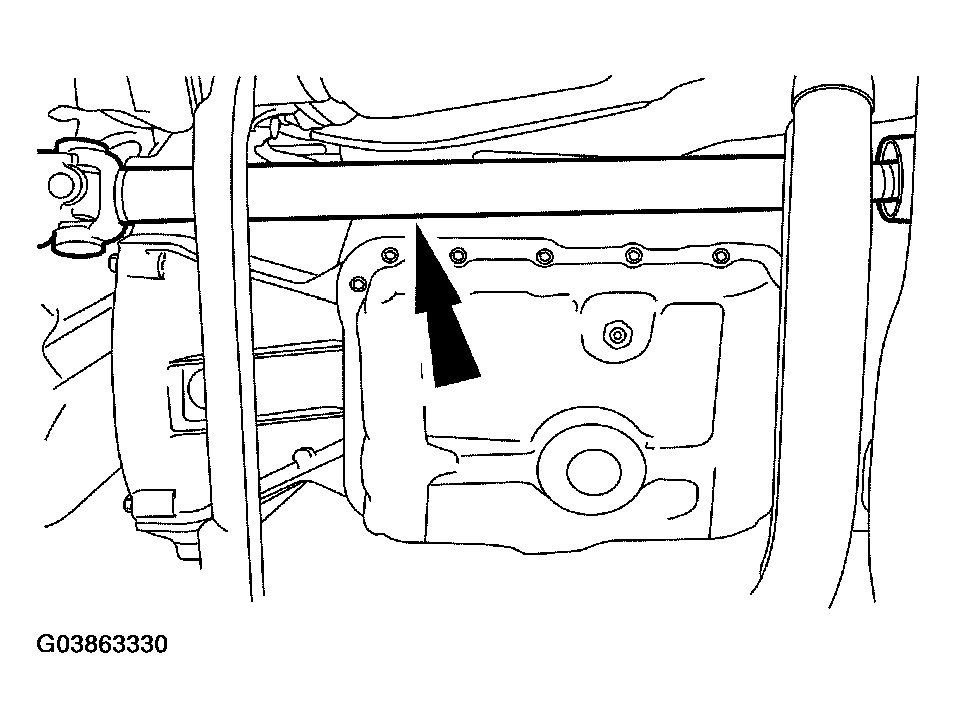

Fig 4: Installing Front Driveshaft In Vehicle
Courtesy of FORD MOTOR CO.
Install the front driveshaft to the transfer case.
- Tighten to 30 Nm (22 lb-ft).

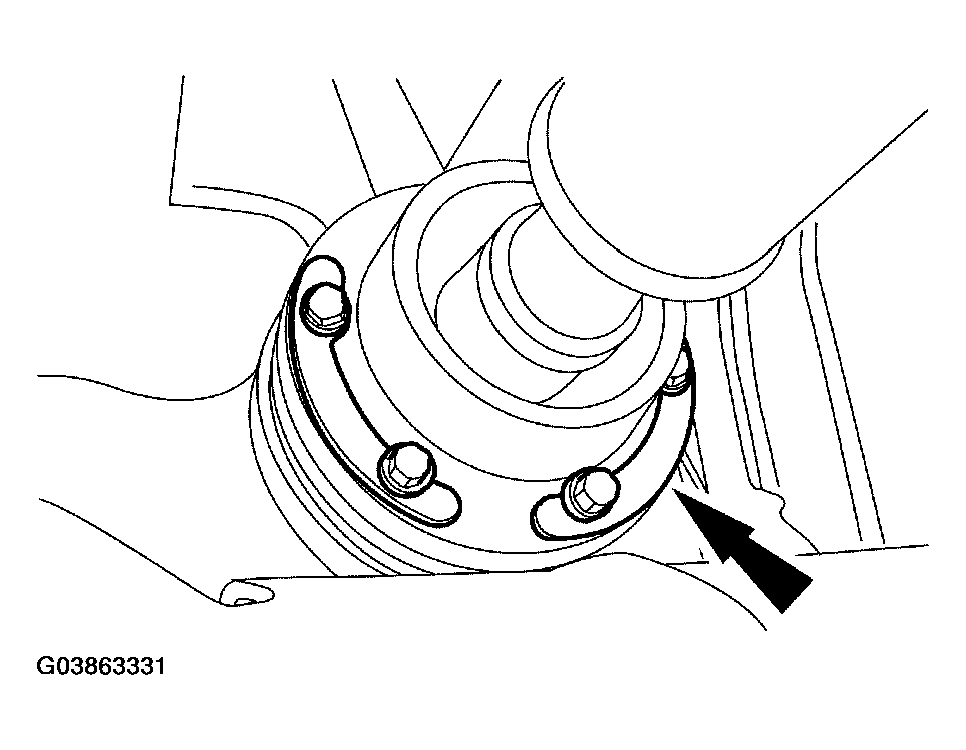

Fig 5: Installing Front Driveshaft To Transfer Case
Courtesy of FORD MOTOR CO.
Install the front driveshaft to the front differential.
- Tighten to 18 Nm (13 lb-ft).

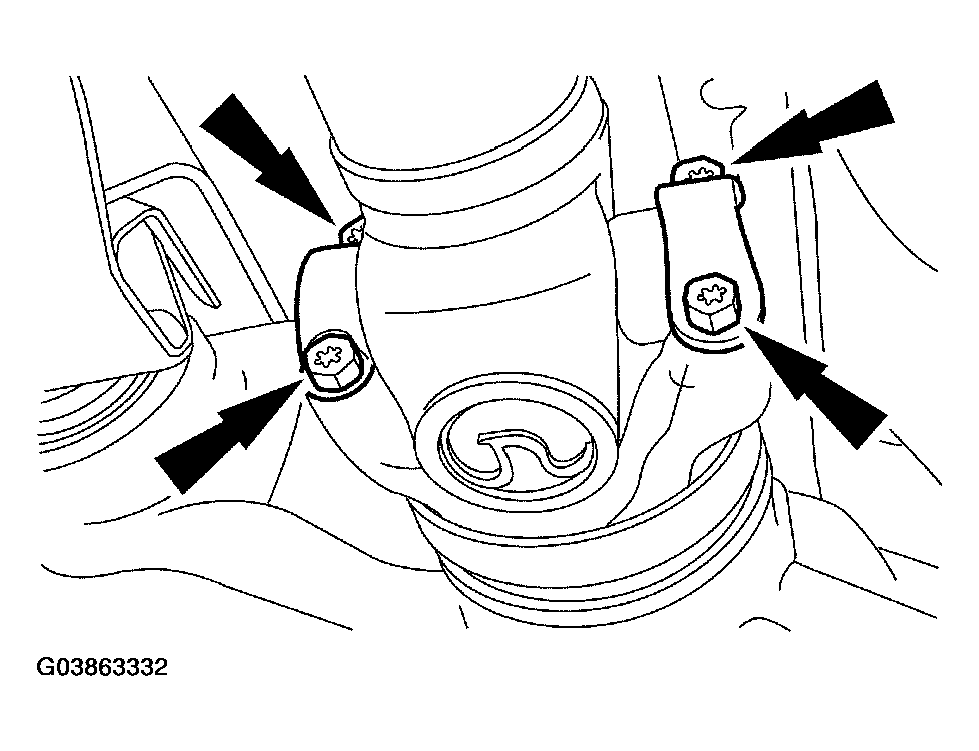

Fig 6: Installing Front Driveshaft To Front Differential
Courtesy of FORD MOTOR CO.
