TR Sensor

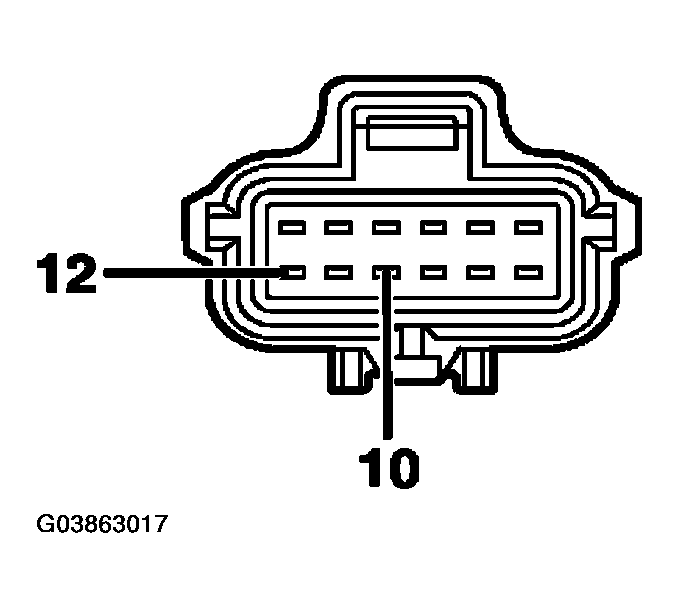

Fig 1: Identifying TR Sensor Pinout
G03863017Courtesy of FORD MOTOR CO.
TR SENSOR PINOUT DESCRIPTION

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
12 CKT 32 (RD/LB) TR sensor to PJB fuse No.29 10 volts or greater in START position.
10 CKT 33 (WT/PK) TR sensor to starter relay 10 volts or greater in START position.
