Engine Ignition Components - Exploded View

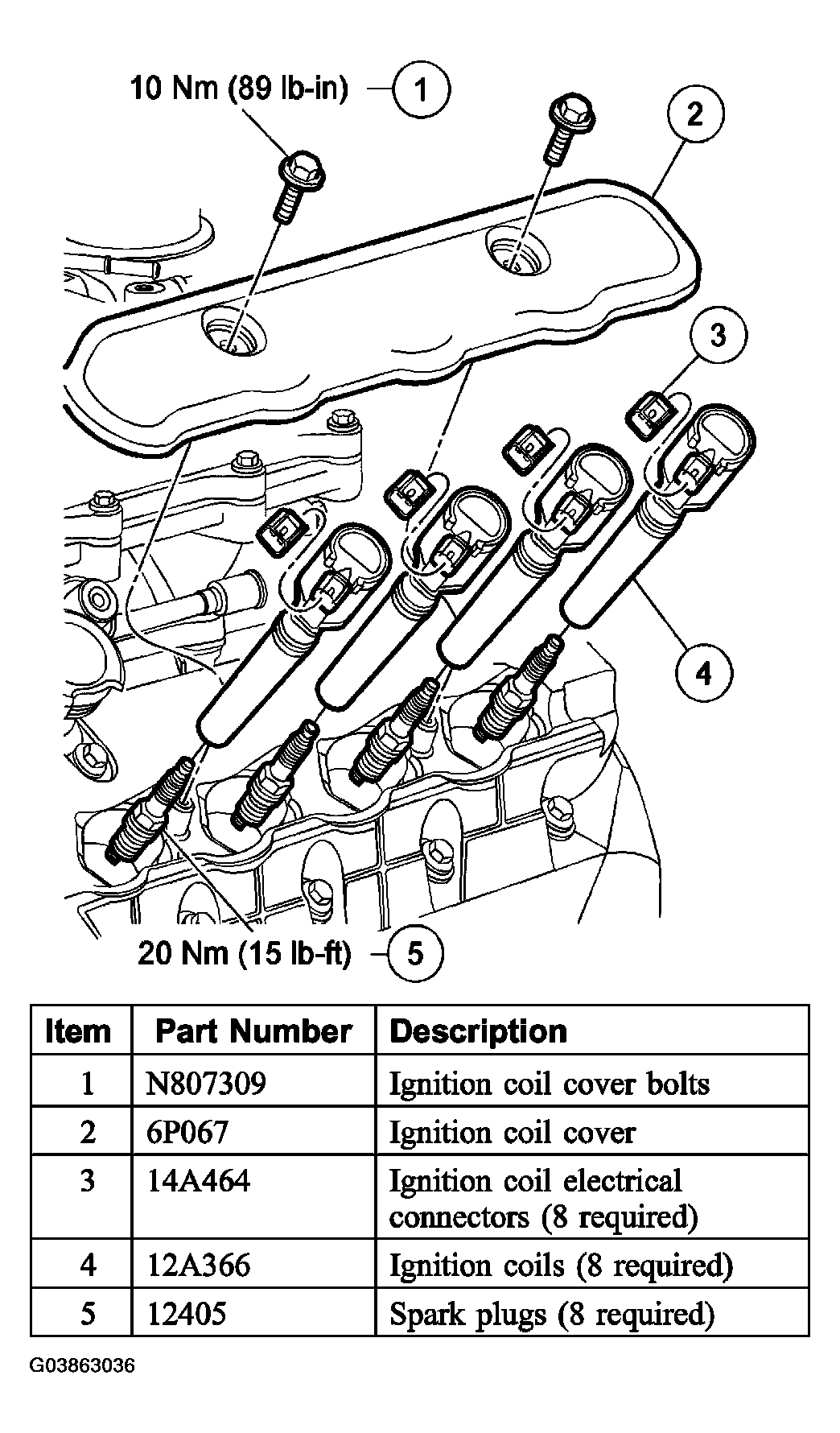

Fig 1: Engine Ignition Replacement Components (Torque Specs)
G03863036Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
