Child Safety Seat Tether Anchor - LATCH: Notes

CHILD SAFETY SEAT TETHER ANCHOR MATERIAL SPECIFICATION - LATCH

Item Specification
Clear Silicone Rubber F7AZ-19554-CA ESB-M4G92-A

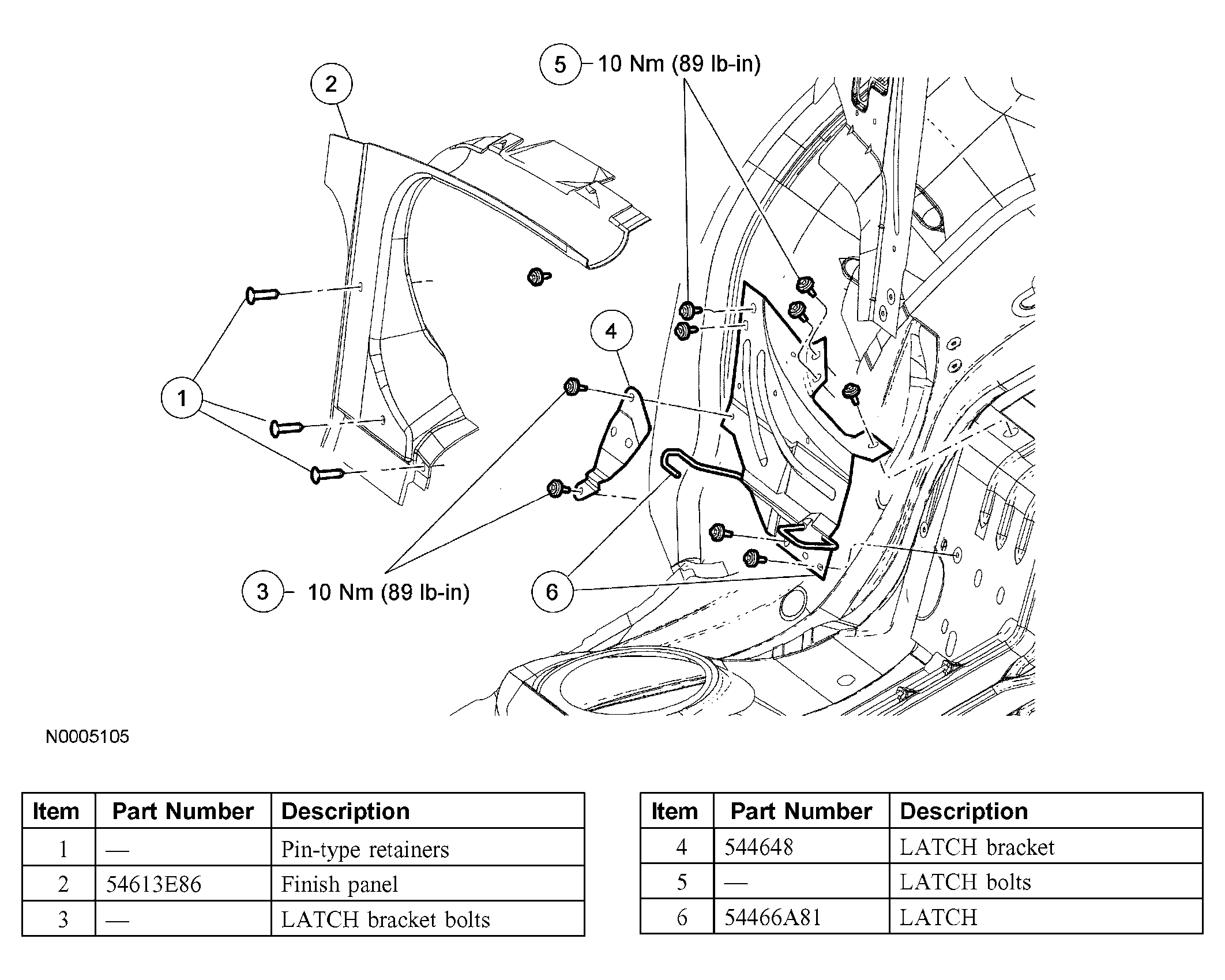

Fig 1: Exploded View Of Child Safety Seat Tether Anchor - Lower Anchors And Tethers For Children (LATCH) Component
G03999856Courtesy of FORD MOTOR CO.
