Child Safety Seat Tether Anchor: Notes

CHILD SAFETY SEAT TETHER ANCHOR MATERIAL SPECIFICATION

Item Specification
Clear Silicone Rubber F7AZ-19554-CA ESB-M4G92-A

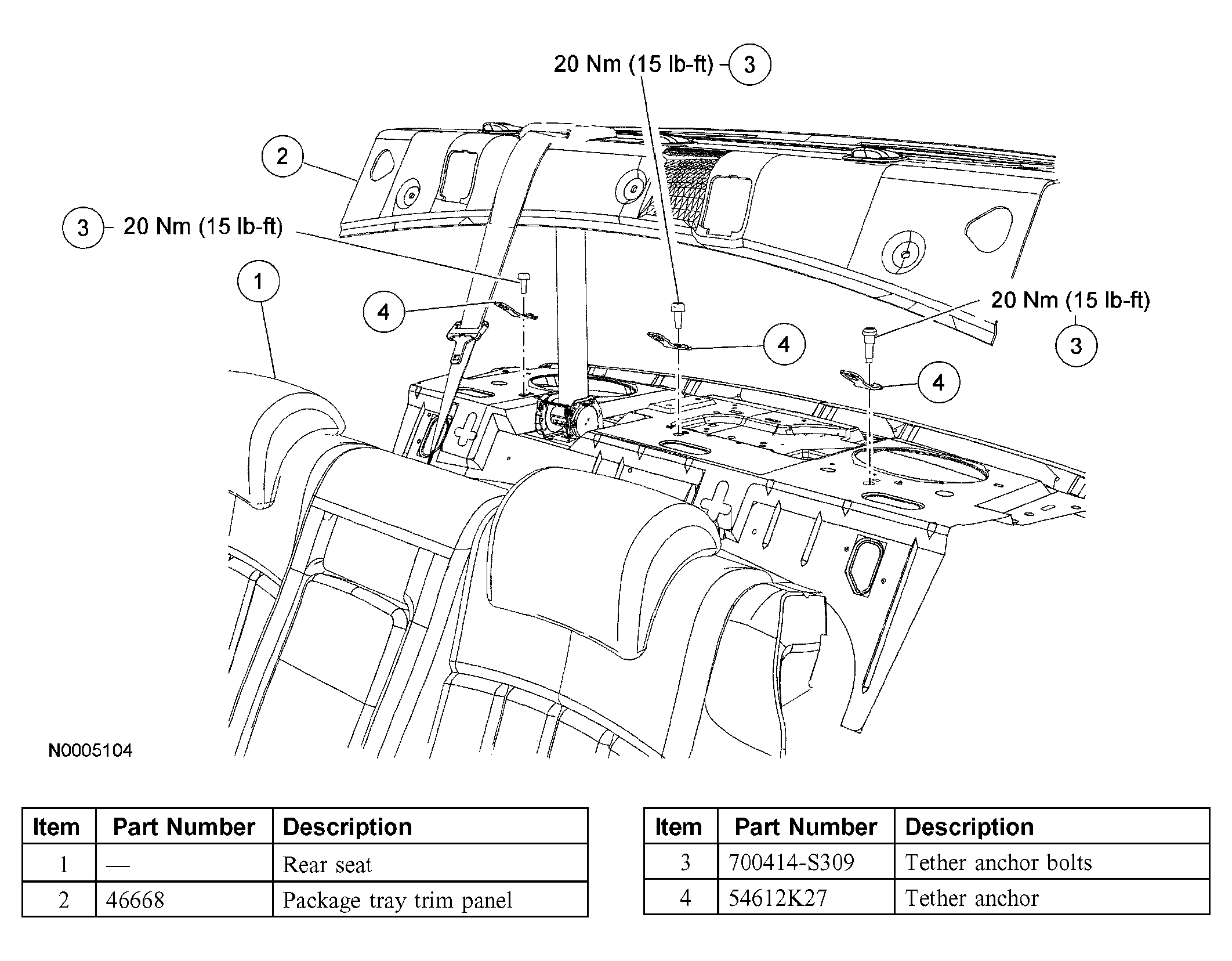

Fig 1: Exploded View Of Child Safety Seat Tether Anchor Component
G03999855Courtesy of FORD MOTOR CO.
