Engine Ignition Components-Exploded View
Fig 1: Engine Ignition Components - Exploded View (RH)
Courtesy of FORD MOTOR CO.

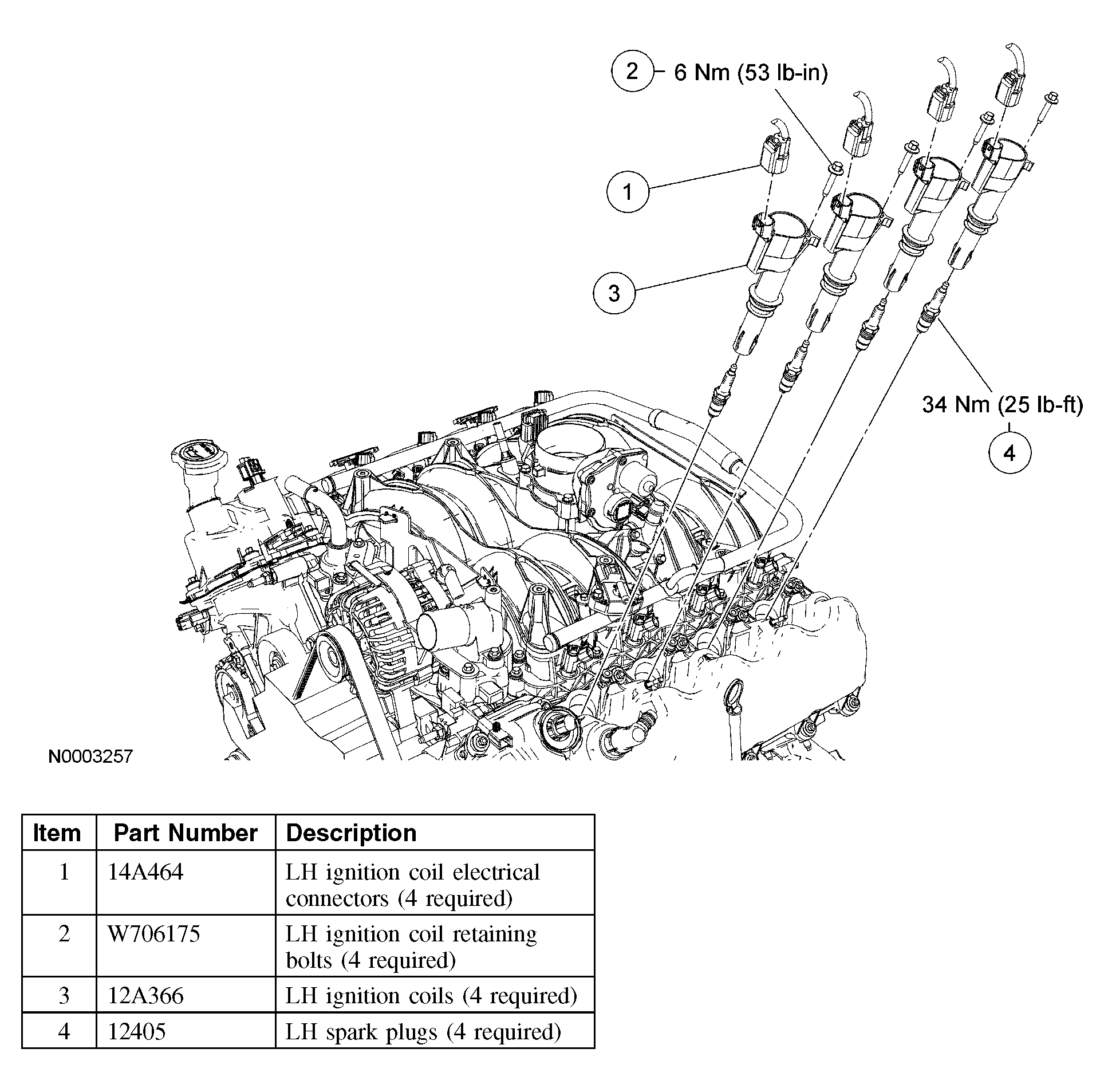

Fig 2: Engine Ignition Components - Exploded View (LH)
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedures in this article.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
